Rittal VX 8660.034 Base/Plinth Trim Panel - Type 1
Part Number: 8660034
Manufacturer
Rittal
Part number
8660034
Alt Part Number
VX 8660.034
Quick Summary
Rittal VX 8660.034 base/plinth trim panel adds clean side finishes and stability for VX enclosure systems. Engineers often confront gaps and wobble in bayed base configurations when finishing panels are absent. The part carries UL 50E Type 1 certification with ETIM EC000721 and ECLASS 27182003 for reliable sourcing. Its sheet steel construction in RAL 9005 provides durable, consistent aesthetics while supporting interior configuration. For manufacturers and service teams, this trim panel reduces installation time, improves enclosure integrity, and aligns with VX system families. Color and finish match the enclosure line, helping maintain consistent labelling and corrosion resistance across installations. Designed for base/plinth VX systems with 800 mm depth, it also supports modular baying without compromising access.
Product Information
Extended Description

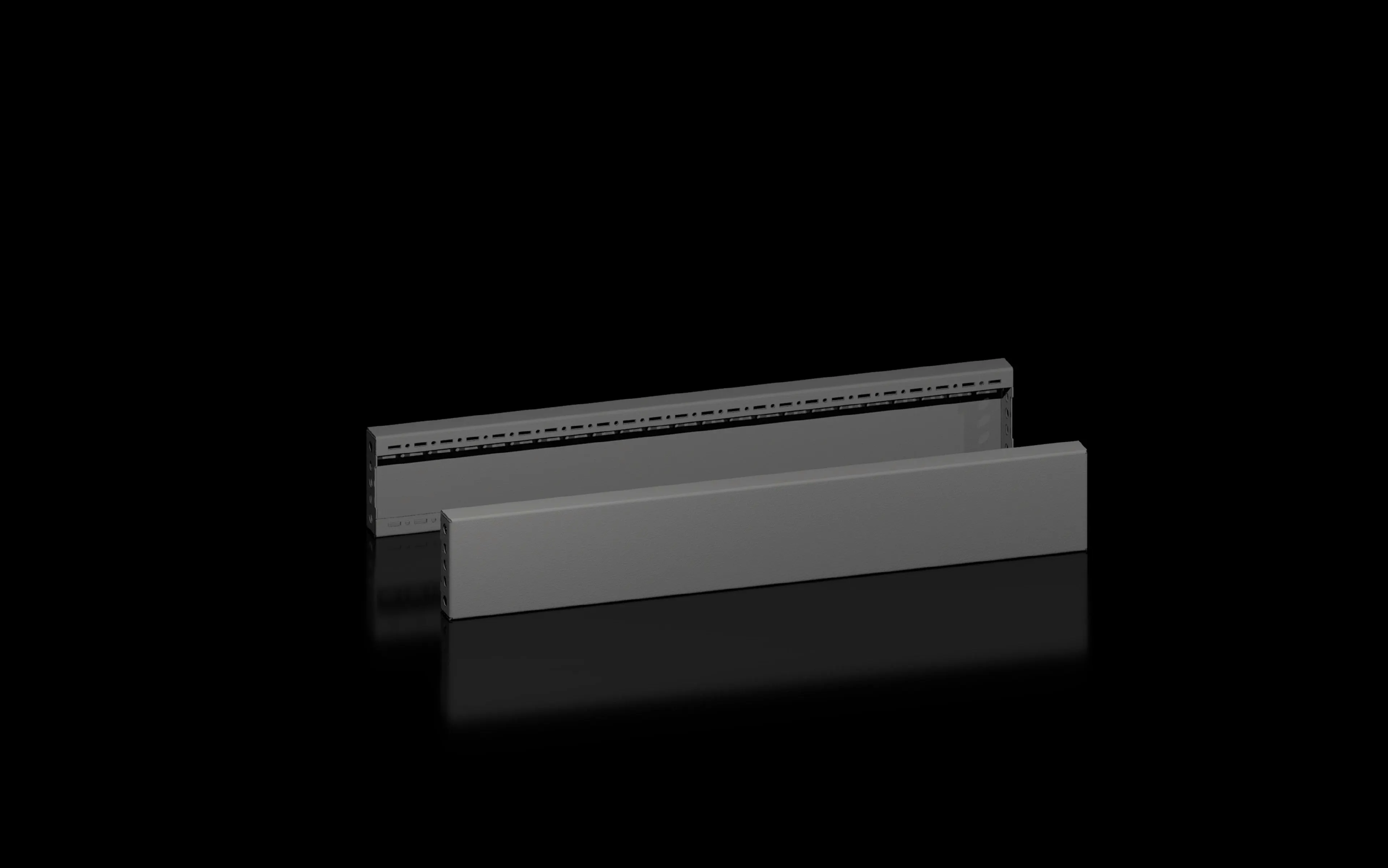

8660034 Rittal: VX base/plinth trim panel, side, H: 100 mm, for D: 800 mm, sheet steel
Article number
VX 8660.034
Design
Solid
Material
Sheet steel
Colour
RAL 9005
Supply includes
Assembly parts
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Depth: = 800 mm
Type rating to UL 50E
Type 1
Weight/pack
2.82 kg
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
PCF per pack (cradle-to-gate)
10.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978249
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, side, H: 100 mm, for D: 800 mm, sheet steel
Feature: 100 mm high side trim panel for 800 mm depth VX enclosures, solid sheet steel with RAL 9005 finish. Business impact: provides neat edges and increased stability, reducing gaps and wobble during operation. Application: ideal for VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX enclosure lines. | Feature: Supplied with assembly parts; weight per pack 2.82 kg; packs of 2. Business impact: speeds installation, minimizes on-site handling, and lowers labour time. Application: churns out repeatable base/plinth finishes in modular factories. | Feature: UL 50E Type 1 rating; formal compatibility with ETIM EC000721 and ECLASS 27182003. Business impact: ensures regulatory readiness and simplifies procurement for compliant environments. Application: critical in electrical enclosures and office/production areas requiring certified components. | Feature: Material and finish – sheet steel in black RAL 9005. Business impact: durable, corrosion-resistant surface that maintains aesthetics in harsh environments. Application: long-term enclosure integrity in industrial facilities. | Feature: PCF per pack 10.7 kg CO2 eq (Cat B). Business impact: supports sustainability reporting and lower life-cycle impact. Application: procurement workflows prioritizing eco-friendly solutions. | Feature: To fit VX base/plinth system, sheet steel construction. Business impact: maximizes compatibility with a broad VX base/plinth ecosystem, reducing part redundancy. Application: standard addition to VX, VX IT, VX SE and related models.
Get a Quick Quote for a Rittal 8660034
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660034?
Enquire Now
FAQs
VX 8660.034 is designed for VX base/plinth systems with an 800 mm depth. It is supplied in packs of two and includes the necessary assembly parts to secure the trim panel to the base sides, providing a finished, stable edge while maintaining interior access for configuration and cabling.
The trim panel is solid sheet steel finished in RAL 9005 (black). It is engineered to withstand industrial environments and provide a durable surface that matches the VX enclosure family, ensuring consistent appearance and corrosion resistance across installations.
The panel carries UL 50E Type 1 certification. It is also associated with ETIM EC000721 and ECLASS 27182003 classifications, which support accurate product sourcing and procurement in engineering and electrical supply chains.
The trim panel is intended for the VX base/plinth system and is suitable for VX, VX IT, VX SE, and related modules. It also supports interior configuration for bayed arrangements within the VX family and 800 mm depth installations.
PCF per pack is 10.7 kg CO2 eq (Cat B). The product is supplied as a 2-piece pack with a per-pack weight of 2.82 kg, enabling informed sustainability considerations during procurement and life-cycle assessment.
