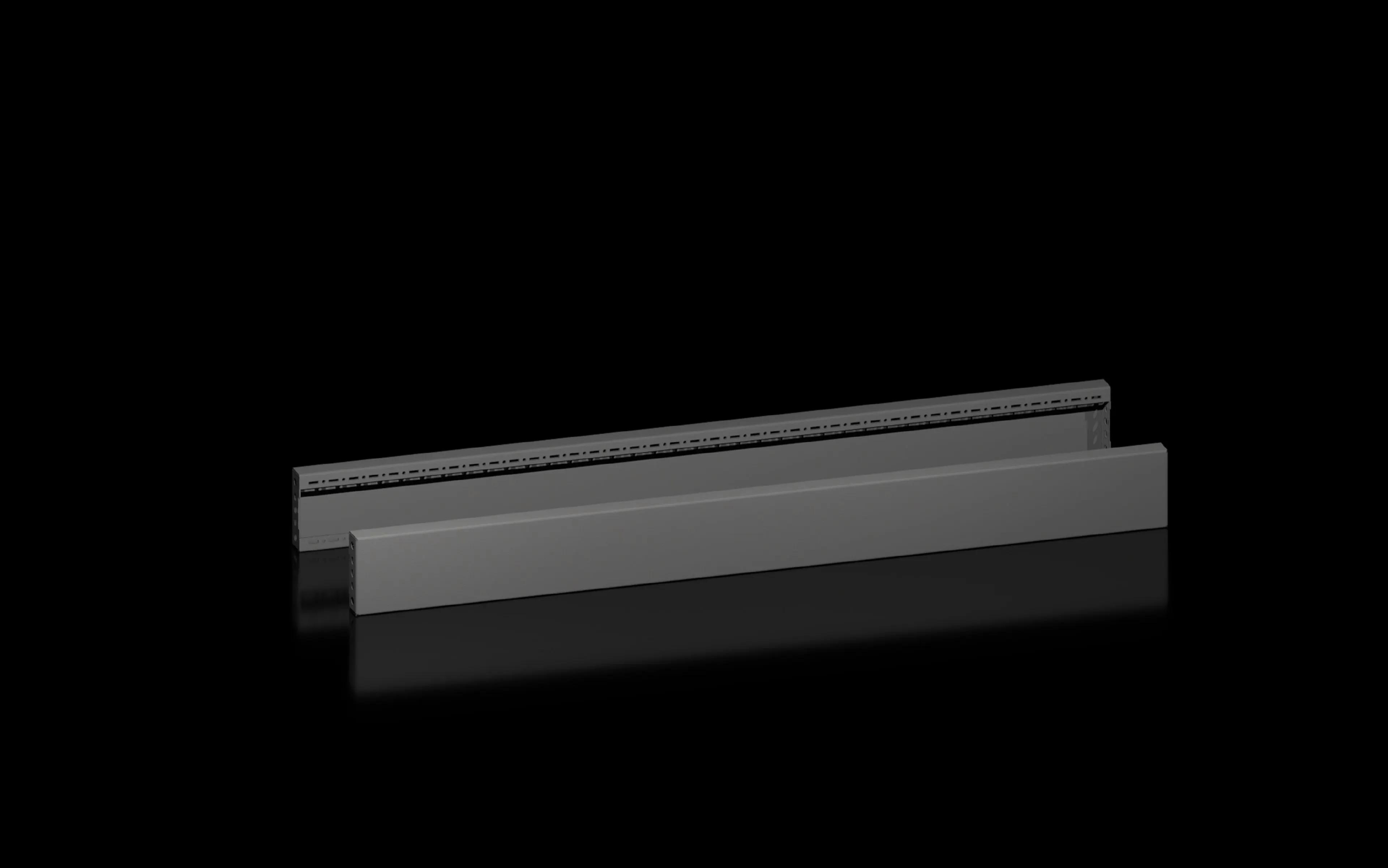

Rittal 8660036 VX base/plinth trim panel - Type 1
Part Number: 8660036
Manufacturer
Rittal
Part number
8660036
Alt Part Number
VX 8660.036
Quick Summary
Rittal VX base/plinth trim panel is a finishing accessory that caps the sides of VX base enclosures to improve rigidity and overall finish. Installers often contend with gaps and misalignment on bayed base systems, which can lead to wobble and costly rework. This component carries UL 50E Type 1 rating and uses sheet steel in RAL 9005, with ETIM EC000721 and ECLASS 27182003 classifications that support seamless procurement and interoperability. When paired with VX, VX IT, VX SE, or TS families, this trim panel delivers a consistent assemble-and-go experience, reduces on-site handling steps, and enhances product longevity — key value drivers for OEMs and end users alike.
Product Information
Extended Description
8660036 Rittal: VX base/plinth trim panel, side, H: 100 mm, for D: 1200 mm, sheet steel
Article number
VX 8660.036
Design
Solid
Material
Sheet steel
Colour
RAL 9005
Supply includes
Assembly parts
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Depth: = 1,200 mm
Type rating to UL 50E
Type 1
Weight/pack
4.5 kg
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
PCF per pack (cradle-to-gate)
17.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978263
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, side, H: 100 mm, for D: 1200 mm, sheet steel
Feature → Business Impact → Application: The trim panel’s 100 mm height and 1,200 mm depth compatibility provide a secure side finish that enhances enclosure rigidity and aesthetic alignment, reducing dust ingress and potential damage to internal components in harsh environments. This translates to fewer maintenance calls and longer service intervals in industrial plants, making installation for VX base systems faster and more predictable. Feature → Business Impact → Application: Solid sheet steel construction with a durable RAL 9005 finish offers robust resistance to corrosion and wear, extending service life in demanding production lines. Use this in high-traffic panels and dusty production settings to minimize repaint cycles and downtime. Feature → Business Impact → Application: UL 50E Type 1 compliance assures safety and regulatory alignment for electrical enclosures, supporting compliance workflows and smoother audits across manufacturing facilities. Feature → Business Impact → Application: Supplied as two trim panels per pack with assembly parts, the packaging design simplifies on-site handling and reduces installation time, lowering labor costs and accelerating project timelines. Feature → Business Impact → Application: PCF per pack of 17.1 kg CO2 eq (Cat B) highlights a cradle-to-gate environmental footprint that procurement teams can factor into sustainability reporting, without compromising performance. Feature → Business Impact → Application: Broad fitment for VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX enclosures reduces SKU proliferation and simplifies spare-part management for distributors and integrators.
Get a Quick Quote for a Rittal 8660036
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660036?
Enquire Now
FAQs
The VX 8660.036 trim panel is designed to fit VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, and other VX family enclosures with a 1,200 mm depth. It is a 100 mm high side trim panel supplied in a 2-piece pack, including assembly parts for a streamlined installation.
Each pack contains two trim panels (2 pc) with a total weight of 4.5 kg per pack. This means each panel weighs approximately 2.25 kg, enabling manageable handling during on-site installation and minimizing ergonomic strain for technicians.
Yes, the trim panel carries UL 50E Type 1 rating, indicating suitability for electrical enclosure applications and compliance with safety standards. This supports safer installations, smoother audits, and confidence in meeting regulatory expectations for industrial electrical infrastructure.
The trim panel is made from sheet steel with a solid design and a RAL 9005 finish. This combination delivers robust mechanical protection and corrosion resistance, ideal for factory floors, outdoor enclosures, and other challenging environments where longevity and low maintenance are critical.
The product has a cradle-to-gate PCF of 17.1 kg CO2 eq per pack (Category B). This provides a transparent metric for sustainability assessments during procurement and allows buyers to compare ecosystem costs across similar enclosure accessories without compromising performance.
