Rittal 8660041 Base/Plinth Trim Panel - UL Type 1
Part Number: 8660041
Manufacturer
Rittal
Part number
8660041
Alt Part Number
VX 8660.041
Quick Summary
Rittal 8660041 base/plinth trim panel provides side finishing for VX base units in bayed enclosures. Without a dedicated trim panel, base assemblies can flex, collect dust, and hinder interior configuration. This part carries UL 50E Type 1 protection and aligns with ETIM EC000721 and ECLASS 27182003 classifications for reliable procurement. Note that CE and IP ratings are not listed for this component—the system's enclosure-level performance determines those protections. By enabling precise fit and stable bases, the trim panel improves installation efficiency, supports consistent aesthetics, and reduces maintenance complexity across VX configurations.
Product Information
Extended Description

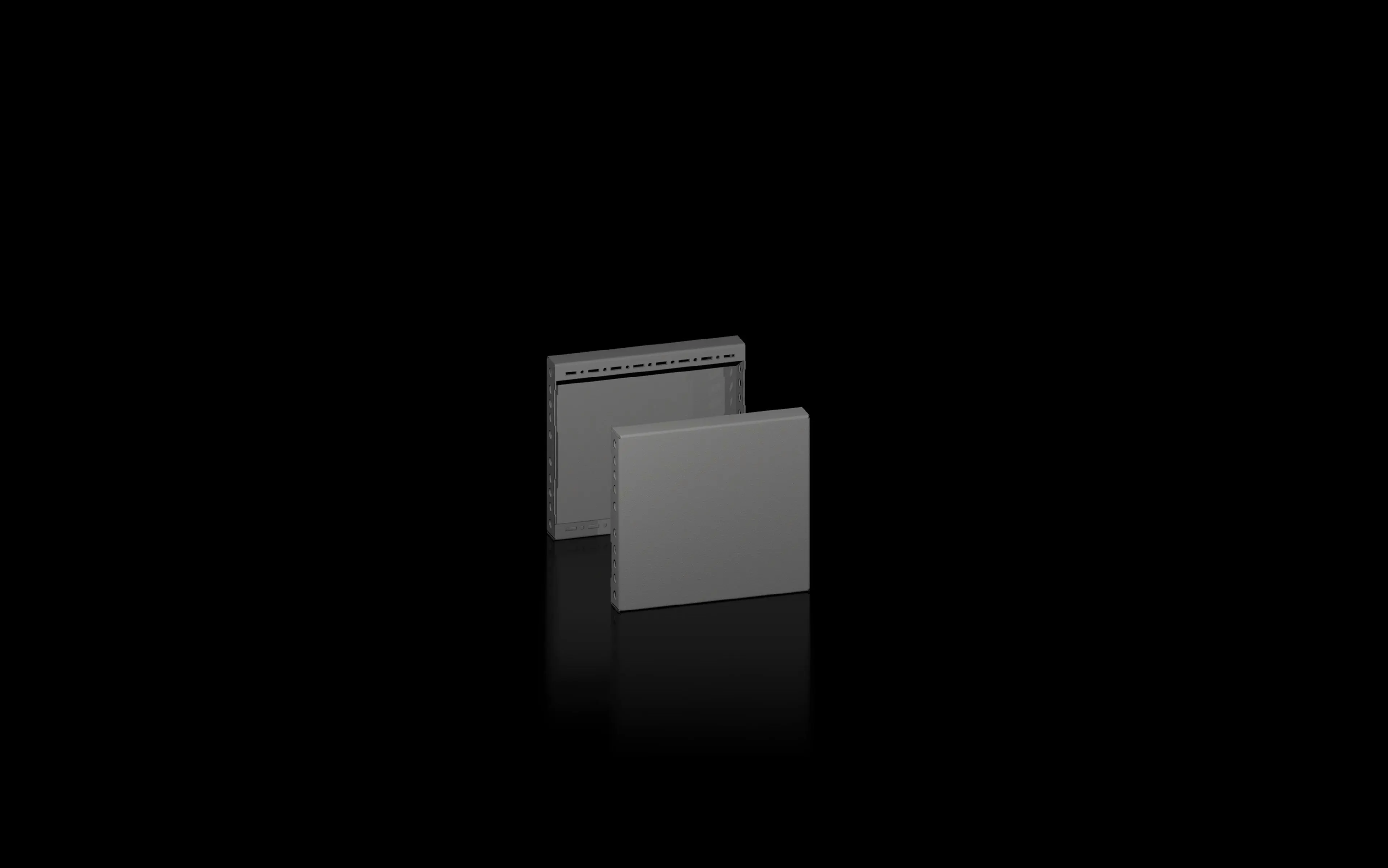

8660041 Rittal: VX base/plinth trim panel, side, H: 200 mm, for D: 400 mm, sheet steel
Article number
VX 8660.041
Design
Solid
Material
Sheet steel
Colour
RAL 9005
Supply includes
Assembly parts
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Depth: = 400 mm
Type rating to UL 50E
Type 1
Weight/pack
1.89 kg
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
PCF per pack (cradle-to-gate)
7.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978287
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, side, H: 200 mm, for D: 400 mm, sheet steel
Feature: Solid sheet steel construction. Benefit: Delivers durable, robust side finishing that withstands routine access, cleaning, and equipment turnover in demanding environments. Application: Fits VX base/plinth systems and supports reliable interior configuration for VX, VX IT, VX SE, and related models. Feature: Height 200 mm and depth 400 mm fitment. Benefit: Ensures precise alignment with standard VX enclosure footprints, reducing misfits and field modifications. Application: Ideal for finishing 200 mm high bases and matching 400 mm depth enclosures to maintain consistent baying geometry. Feature: Lightweight 1.89 kg per pack (two pieces per pack). Benefit: Simpler handling, faster installation, and lower freight costs on project rollouts. Application: Suitable for on-site assembly teams optimizing installation time for multi-unit racks. Feature: UL 50E Type 1 rating. Benefit: Supports safety and compliance in industrial environments, aiding risk management and regulator alignment. Application: Preferable where Type 1 protection is required within VX-based installations. Feature: Includes assembly parts. Benefit: Speeds up installation by providing necessary hardware with the panel, reducing procurement friction. Application: Ready-to-fit solution for VX base/plinth configurations across multiple enclosure families. Feature: Compatibility across VX family and related models. Benefit: Reduces SKU proliferation and simplifies spare-part inventory. Application: Works with VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX and other base/plinth configurations. Feature: PCF 7.2 kg CO2 eq per pack (Cat B). Benefit: Supports sustainability goals by enabling greener procurement decisions. Application: Fits into eco-conscious manufacturing and green-leaning projects.
Get a Quick Quote for a Rittal 8660041
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660041?
Enquire Now
FAQs
The VX 8660.041 base/plinth trim panel is designed to fit multiple VX family configurations, including VX, VX IT, and VX SE base units, as well as related models like TX CableNet, TS, TS IT, TP, PC, IW and CX where a 400 mm depth and 200 mm height trim is appropriate. This compatibility supports standardized baying across the portfolio and simplifies stock planning for mixed installations.
The trim panel has a height of 200 mm and is intended for a depth of 400 mm. Each panel weighs 1.89 kg, and packs contain two panels along with assembly parts. These metrics support predictable handling, quick on-site installation, and consistent balance within bayed base/plinth configurations.
Begin by confirming the base/plinth depth and height match the 400 mm by 200 mm footprint. Unpack the two panels and the included assembly parts, align them with the VX base, and secure per the provided hardware. The design ensures a tight finish along the enclosure sides, improving rigidity and interior organization with minimal tools and time.
The product carries UL 50E Type 1 protection, supporting safety requirements for industrial enclosures. It also aligns with ETIM 9 EC000721 and ETIM 8 EC000721 as well as ECLASS 8.0 27182003 classifications for procurement interoperability. Note that explicit CE and IP ratings are not listed for this individual trim panel; system-level enclosures determine those ratings.
Using the VX 8660.041 trim panel provides a finished, stable base with precise fit, reducing installation time and field adjustments. Its assembly-part inclusion minimizes procurement steps, while the sheet-steel construction enhances durability. The packaging supports sustainability reporting with a measured CO2 footprint (7.2 kg CO2 eq per pack) and helps maintain a consistent appearance across bayed VX configurations.
