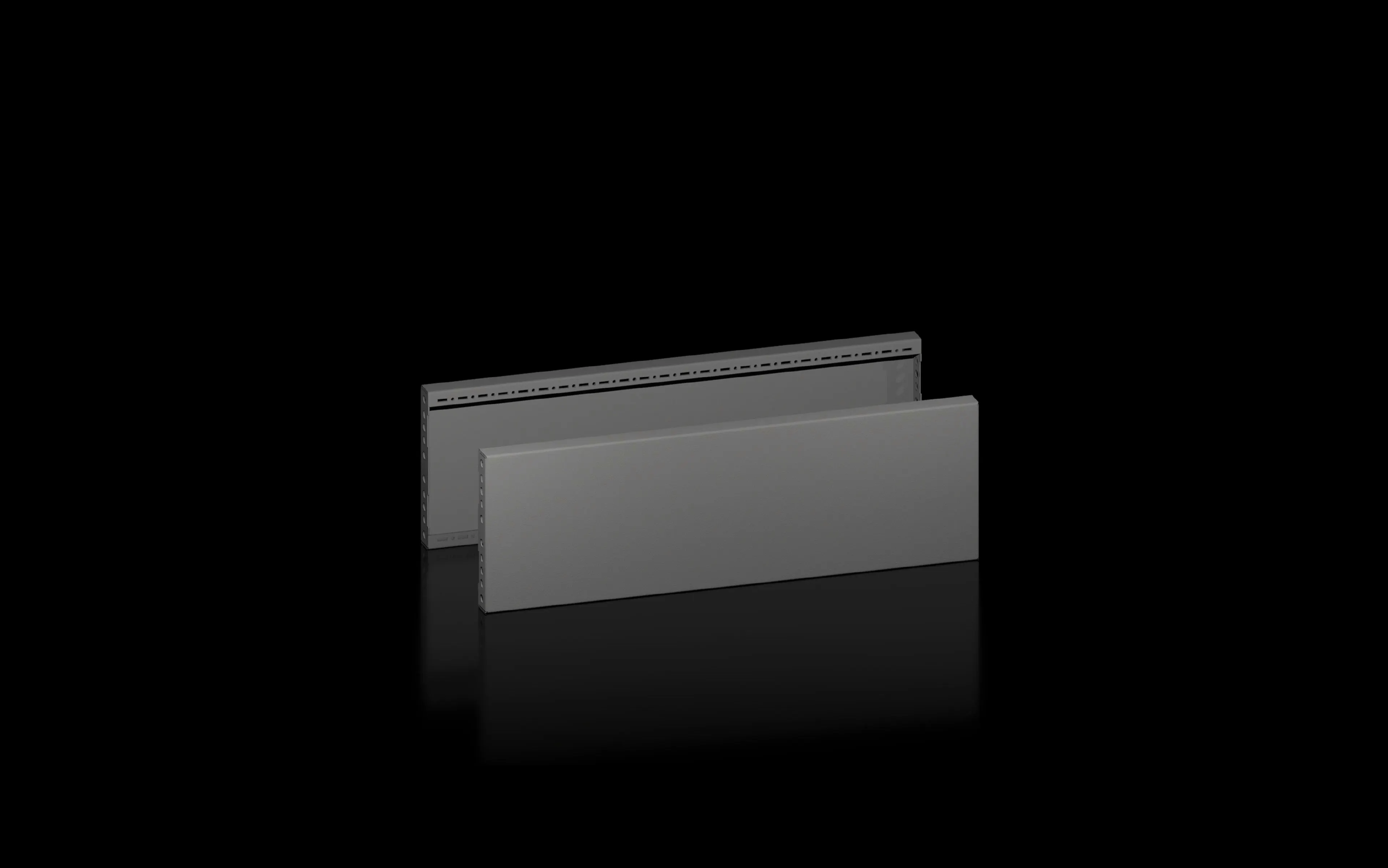

Rittal 8660044 VX Base/Plinth Trim Panel - UL Type 1
Part Number: 8660044
Manufacturer
Rittal
Part number
8660044
Alt Part Number
VX 8660.044
Quick Summary
Rittal VX base/plinth trim panel provides side finishing and stability for VX enclosure bases in industrial control panels. Without proper trim panels, base assemblies can flex, doors misalign, and interior bays become difficult to configure. This part carries UL 50E Type 1 certification, and aligns with ETIM EC000721 and ECLASS 8.0 27182003 for reliable data handling and cross‑system compatibility. The result is faster installation, reduced field adjustments, and improved enclosure integrity. By matching sheet steel construction and RAL 9005 finish, it supports consistent aesthetics and safer, long‑term operation across our VX family installations. This makes it a practical choice for OEMs seeking repeatable base configurations across multiple lines.
Product Information
Extended Description
8660044 Rittal: VX base/plinth trim panel, side, H: 200 mm, for D: 800 mm, sheet steel
Article number
VX 8660.044
Design
Solid
Material
Sheet steel
Colour
RAL 9005
Supply includes
Assembly parts
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Depth: = 800 mm
Type rating to UL 50E
Type 1
Weight/pack
4.44 kg
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
PCF per pack (cradle-to-gate)
16.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978324
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, side, H: 200 mm, for D: 800 mm, sheet steel
VX base/plinth trim panel is a solid sheet-steel side panel used to finish VX base units and tailor interior configuration for bayed enclosures. Key specs include Article VX 8660.044, height 200 mm, depth 800 mm, colour RAL 9005, and Type rating UL 50E Type 1. It is supplied with assembly parts and comes in packs of two, weighing 4.44 kg per unit. Compatible with enclosure types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX (depth 800 mm). The cradle-to-gate PCF is 16.9 kg CO2 eq (Cat B). This trim panel is ideal for standard VX base/plinth systems, providing durable finish, easier installation, and consistent aesthetics across multiple installations. A practical choice for OEMs seeking repeatable VX configurations across multiple lines.
Get a Quick Quote for a Rittal 8660044
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660044?
Enquire Now
FAQs
Yes. VX 8660.044 is designed for VX family enclosures and base/plinth configurations, including VX, VX IT, VX SE and related systems. It fits a depth of 800 mm with a 200 mm height panel and ships as two packs with assembly parts, weighing about 4.44 kg per pack. This provides a ready-to-install solution that maintains alignment and protects interiors during baying.
UL 50E Type 1 indicates compliance with standard enclosure performance and safety requirements for metal bases used in indoor electrical equipment. For VX 8660.044, this means the panel supports safe assembly of enclosure bases, helps meet fire and electrical safety expectations, and aligns with industry practices for rack-mount and cabinet installations.
Yes. The VX 8660.044 trim panel is specified to fit VX, VX IT, VX SE, and a wide range of base/plinth configurations across VX family, including TS and TX CableNet variants and CX systems. This compatibility helps streamline procurement, reduces the need for custom adaptors, and supports consistent mounting depth of 800 mm.
Beyond UL 50E Type 1, the trim panel aligns with ETIM EC000721 and ECLASS 8.0 27182003 specifications, supporting accurate data exchange and supplier integrations. It also uses standard EAN 4028177978324 and a consistent base/plinth system specification, helping procurement and configuration teams maintain traceability and reduce miscommunication across global supply chains.
Using VX 8660.044 trims reduces on-site assembly time because the parts ship with assembly hardware and are designed for immediate installation on VX-based bases. Each pack weighs 4.44 kg and ships as two units, enabling predictable handling. The cradle-to-gate PCF is 16.9 kg CO2 eq per pack, supporting lower lifecycle impact and TCO efficiency.
