Rittal VX 8660.045 Trim Panel - UL 50E Type 1
Part Number: 8660045
Manufacturer
Rittal
Part number
8660045
Alt Part Number
VX 8660.045
Quick Summary
Rittal VX 8660.045 Trim Panel finishes VX base units with a precise side trim, enabling a clean, stable base for bayed configurations. This addresses the common challenge of unfinished edges and misaligned bays that slow installation and compromise enclosure integrity. The panel carries UL 50E Type 1 rating for enclosure suitability, while data-standard alignment through ETIM EC000721 and ECLASS 27182003 supports accurate product data exchanges. By opting for sheet steel construction with a 200 mm height and 1,000 mm depth compatibility, you gain reliable rigidity and predictable fit, reducing maintenance rounds and enabling faster project completion. This complements other VX components and supports efficient procurement and installation workflows.
Product Information
Extended Description

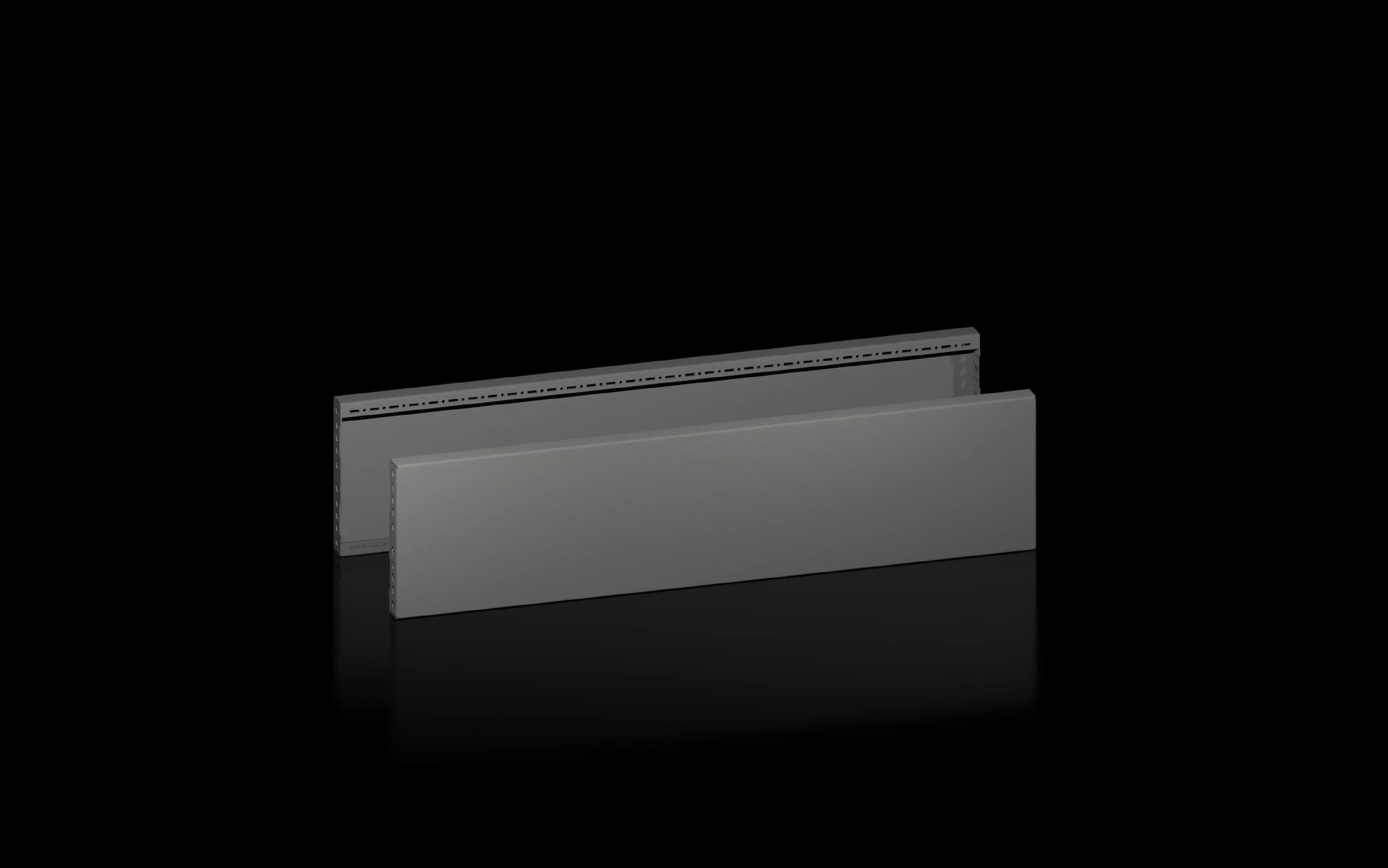

8660045 Rittal: VX base/plinth trim panel, side, H: 200 mm, for D: 1000 mm, sheet steel
Article number
VX 8660.045
Design
Solid
Material
Sheet steel
Colour
RAL 9005
Supply includes
Assembly parts
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Depth: = 1,000 mm
Type rating to UL 50E
Type 1
Weight/pack
5.58 kg
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
PCF per pack (cradle-to-gate)
21.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978331
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, side, H: 200 mm, for D: 1000 mm, sheet steel
Feature → Business Impact → Application: The VX 8660.045 uses solid sheet steel to deliver durable trim that resists impact and corrosion, extending base/plinth life in demanding industrial environments. Business impact: lower replacement costs and reduced downtime due to damaged edges or loose plinths. Application: ideal for finish-off on VX base units with bayed configurations in manufacturing lines and data centers. Feature → Business Impact → Application: Precise H 200 mm trim panels that fit a 1,000 mm depth VX system reduce gaps and simplify sealing, improving enclosure integrity and thermal performance. Application: aligns with VX, VX IT, VX SE and related models when mounting across long bays. Feature → Business Impact → Application: Assembly parts included and packaging as 2 packs streamline delivery and installation, cutting on-site labor time and scheduling complexity. Application: supports quick on-site mounting for base/plinth systems VX across multiple enclosures. Feature → Business Impact → Application: UL 50E Type 1 certification provides regulatory compliance for electrical enclosures, reducing risk during audits. Application: suitable for commercial and industrial standards-compliant installations. Feature → Business Impact → Application: Lightweight packaging at 5.58 kg per pack (2 pcs) reduces handling effort and crane time, improving installer productivity. Application: easier logistics for large-scale VX projects in manufacturing and automation facilities. Feature → Business Impact → Application: PCF value of 21.3 kg CO2 eq per pack (Category B) enables better environmental reporting and sustainability planning. Application: supports green procurement programs and lifecycle assessments for VX base/plinth systems.
Get a Quick Quote for a Rittal 8660045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660045?
Enquire Now
FAQs
The VX 8660.045 is designed for the VX family and fits a 1,000 mm depth. It also supports VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX configurations, making it suitable for bayed base/plinth systems that need a consistent edge finish and reliable alignment.
The trim panel has a height of 200 mm and is intended for 1,000 mm depth. Weight per pack is 5.58 kg, with packs of 2 pieces included, enabling easy handling and efficient on-site installation.
Key certifications and data standards include UL 50E Type 1 (type rating), along with ETIM 9 EC000721 and ECLASS 8.0 27182003 data mappings, ensuring regulatory compliance and interoperability in industrial procurement and data exchange.
Assembly parts are included, and the two-pack configuration supports quicker preparation and mounting for VX base/plinth systems. Its compatibility with multiple VX variants reduces custom fabrication, shortening project timelines and minimizing field modification needs.
Each pack has a PCF of 21.3 kg CO2 eq (Cat B), enabling environmental impact tracking and lifecycle assessments. This aids sustainability reporting in projects using VX base/plinth trim panels and broader enclosure assemblies.
