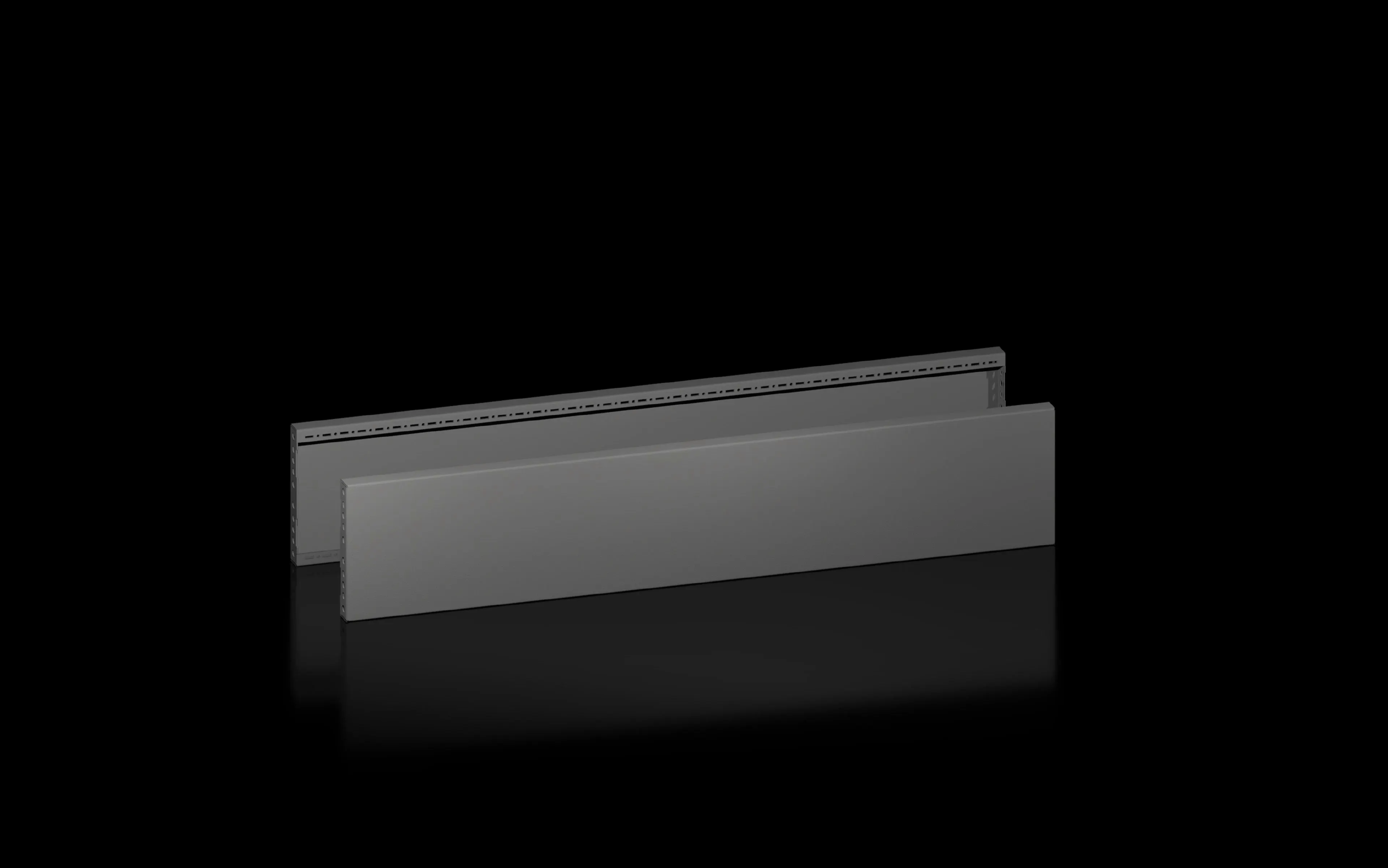

Rittal VX 8660.046 Base Trim Panel - 200mm, Type 1
Part Number: 8660046
Manufacturer
Rittal
Part number
8660046
Alt Part Number
VX 8660.046
Quick Summary
Rittal VX 8660.046 base/plinth trim panel finishes VX enclosures and boosts stability for control panels and bayed base systems. It addresses common gaps and flex that complicate door alignment and cabinet rigidity during installation. This sheet-steel accessory meets UL 50E Type 1 requirements and aligns with ETIM EC000721 and ECLASS 27182003, helping you maintain regulatory compliance and consistent documentation. Delivered in 200 mm height and designed for D 1200 mm VX family bases, it also supports color consistency in RAL 9005, reducing repainting and field touch-ups. For procurement teams, the two-pack configuration streamlines stocking and reduces handling complexity, while enabling scalable retrofits across VX, VX IT, and related enclosures.
Product Information
Extended Description
8660046 Rittal: VX base/plinth trim panel, side, H: 200 mm, for D: 1200 mm, sheet steel
Article number
VX 8660.046
Design
Solid
Material
Sheet steel
Colour
RAL 9005
Supply includes
Assembly parts
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | Depth: = 1,200 mm
Type rating to UL 50E
Type 1
Weight/pack
7.12 kg
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
PCF per pack (cradle-to-gate)
27.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177978348
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, side, H: 200 mm, for D: 1200 mm, sheet steel
Feature → Business Impact → Application: Solid sheet steel construction delivers durable edge protection and long-term rigidity, lowering maintenance cycles and replacement costs for base units in high-vibration industrial environments, ideal for VX and VX IT installations. Feature → Business Impact → Application: Height 200 mm with 1200 mm depth compatibility provides a clean finish at the enclosure base, improving door alignment and reducing retrofit time during system upgrades or expansions. Feature → Business Impact → Application: UL 50E Type 1 certification ensures enclosure integrity under standard electrical service conditions, simplifying safety documentation and accelerating commissioning in facilities adhering to strict electrical codes. Feature → Business Impact → Application: RAL 9005 coloring offers aesthetic cohesion with existing Rittal platforms and corrosion resistance, minimizing painting workflows and improving first-pass acceptance in panel assembly. Feature → Business Impact → Application: Supply includes assembly parts and a weight of 7.12 kg per pack, enabling straightforward installation and two-pack logistics that reduce site traffic and downtime. Feature → Business Impact → Application: PCF 27.1 kg CO2 eq (Cat B) supports sustainability reporting and helps meet green procurement targets without compromising performance. Feature → Business Impact → Application: Broad compatibility with VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX enclosures ensures quick integration across mixed environments, while maintaining standard dimensions to avoid custom fabrication.
Get a Quick Quote for a Rittal 8660046
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660046?
Enquire Now
FAQs
Yes. VX 8660.046 is designed for VX family bases and fits VX, VX IT, VX SE, and related enclosures with a 1,200 mm depth. It ships with assembly parts to simplify retrofit or new installations and comes in a two-pack for efficient stocking.
Key specs include height 200 mm, fit for D 1200 mm enclosures, sheet steel construction, color RAL 9005, weight 7.12 kg per pack, and UL 50E Type 1 certification. The product is supplied in packs of two and is intended for VX base/plinth systems.
Absolutely. With UL 50E Type 1 certification and alignment to ETIM EC000721 and ECLASS 27182003, the trim panel supports safe, compliant installations while maintaining mechanical integrity in challenging environments.
The assembly parts and standardized dimensions reduce field fitting and rework, speeding up commissioning. The two-pack packaging lowers logistics handling, and durable sheet steel minimizes replacement needs, contributing to a lower total cost of ownership.
Technical literature and product pages are available via Rittal’s download resources, including PDFs and regional spec sheets. You can also access country-specific further information documents through the provided asset URLs.
