Rittal VX 8660.050 Base/plinth Corner Piece - UL 50E Type 1
Part Number: 8660050
Quick Summary
The Rittal VX base/plinth corner piece 8660.050 provides robust access to screw connections for VX enclosures. Installers often struggle to finish base assemblies quickly while ensuring stability and corrosion resistance over the equipment life. This accessory uses stainless steel 1.4301 (AISI 304) with a brushed finish and carries UL 50E Type 1 rating, along with ETIM EC000721 and ECLASS 8.0 27182003 for reliable compatibility. Together with the VX family enclosures, it supports faster installation, improved serviceability, and longer-term reliability for regulated industrial environments.
Product Information
Extended Description

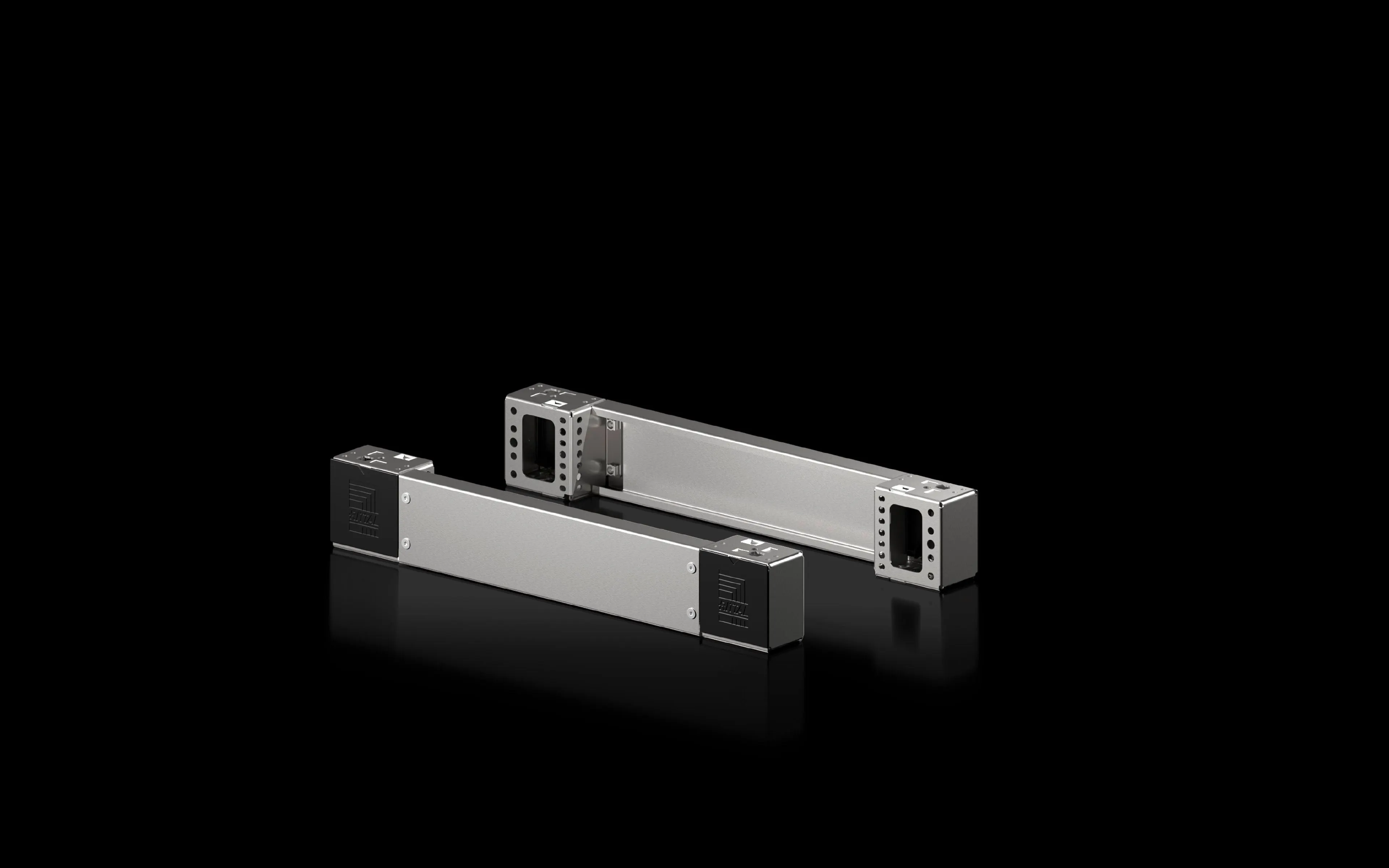

8660050 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 600 mm, stainless steel, 1.4301
Article number
VX 8660.050
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Cover caps: ABS
Surface finish
Brushed, grain 400
Supply includes
Assembly parts | 4 cover caps | 4 base/plinth corner pieces | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels are required to finish off a base/plinth unit and also for additional stability between the base/plinths.
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX SE | TS | PC | Width: = 600 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037854
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 600 mm, stainless steel, 1.4301
Feature: Material and finish provides superior corrosion resistance and durability. Business Impact: Extends service life in harsh factory environments and reduces maintenance costs. Application: Suitable for VX enclosures in corrosive or wash-down areas. Feature: Precise 100 mm height and 600 mm width for standard VX compatibility. Business Impact: Streamlines procurement and minimizes on-site fit issues, accelerating project timelines. Application: Ensures consistent base dimensions across VX, VX SE, TS, and PC models. Feature: Includes assembly parts, four cover caps, two base/plinth trim panels. Business Impact: Reduces sourcing time and assembly complexity, cutting installation labor. Application: Ideal for large-scale installations or retrofit projects. Feature: Large screw-access openings in the corner piece. Business Impact: Speeds maintenance tasks and allows easier cable and screw management. Application: Facilitates field servicing without disassembly of the entire cabinet. Feature: Side base/plinth trim panels improve stability and finish. Business Impact: Improves base rigidity and aesthetics, lowering vibration transmission. Application: Finishes base units for VX, VX SE, TS, PC enclosures. Feature: UL 50E Type 1 and ETIM/ECLASS alignment. Business Impact: Ensures regulatory compliance and predictable sourcing for regulated industries. Application: Suitable for safety-critical or compliance-driven deployments.
Get a Quick Quote for a Rittal 8660050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660050?
Enquire Now
FAQs
The VX 8660.050 fits VX, VX SE, TS, and PC enclosures with a 600 mm width and 100 mm height. It ships as a two-pack and includes four cover caps and two base/plinth trim panels, designed to simplify assembly and ensure consistent base finishing. Large access openings aid screw connections during installation and maintenance, reducing downtime.
Yes. The part uses stainless steel 1.4301 (AISI 304) with a brushed finish, offering excellent corrosion resistance suitable for demanding industrial environments. This material choice helps extend service life in wash-down or exposure-prone areas while maintaining a clean, professional base aesthetic.
The accessory carries UL 50E Type 1 rating, reflecting enclosure security and performance. It is aligned with ETIM EC000721 and ECLASS 8.0 27182003 classifications to support consistent sourcing and integration with compatible procurement systems.
It standardizes base dimensions for VX enclosures, provides front and rear trim panels, and includes necessary assembly parts, reducing installation time. The large screw-access openings enable quicker maintenance, while the robust stainless steel construction improves stability and reduces long-term maintenance costs.
This corner piece is designed to fit VX, VX SE, TS, and PC enclosure families with a 600 mm width and 100 mm height. It ships with two base/plinth trim panels and four cover caps, enabling a consistent base finish across multiple enclosure types.
