Rittal VX 8660.052 Base/Plinth Corner Piece - UL 50E Type 1
Part Number: 8660052
Quick Summary
VX 8660.052 Base/Plinth Corner Piece provides robust corner protection and trim integration for VX enclosures. Engineers often struggle to achieve stable bases and fast, clean access to screw connections in tight installations. This accessory meets UL 50E Type 1 requirements and uses corrosion‑resistant stainless steel 1.4301 (AISI 304) with a brushed finish for lasting reliability. Its compatibility with front and rear trim panels and the 100 mm high base pieces supports consistent assemblies across VX, VX SE, TS, and PC enclosures, reducing handling time and rework. In practice, VX 8660.052 delivers measurable business value through improved install efficiency, easier maintenance access, and a professional enclosure presentation.
Product Information
Extended Description

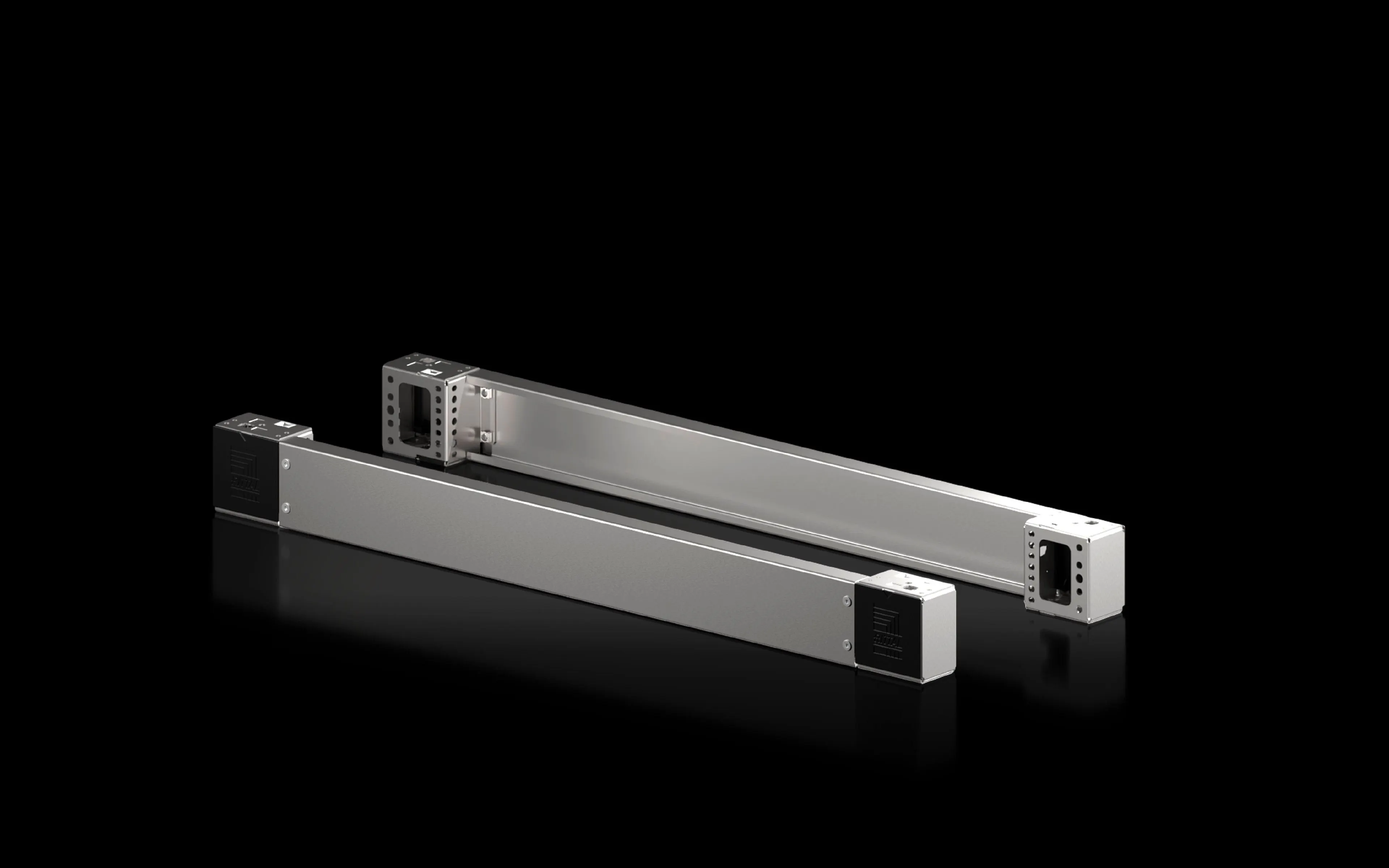

8660052 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 1000 mm, stainless steel, 1.4301
Article number
VX 8660.052
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Cover caps: ABS
Surface finish
Brushed, grain 400
Supply includes
Assembly parts | 4 base/plinth corner pieces | 4 cover caps | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels are required to finish off a base/plinth unit and also for additional stability between the base/plinths.
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX SE | TS | PC | Width: = 1,000 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037878
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 1000 mm, stainless steel, 1.4301
Material and finish: The base/plinth corner piece combines stainless steel 1.4301 (AISI 304) with ABS cover caps and a brushed grain 400 surface. Business impact: Superior corrosion resistance and durable aesthetics reduce maintenance costs and ensure long-term enclosure integrity in demanding environments. Application: Ideal for 1000 mm wide VX systems where consistent cosmetic and functional performance matters.Seamless access to hardware: Large openings in the base corners allow optimum access to screw connections. Business impact: Faster assembly, simplified service, and reduced downtime during upgrades or reworks. Application: Beneficial in dense control panels and cabinet installations where serviceability is critical.Compatibility and installation efficiency: Includes 4 base/plinth corner pieces, 4 cover caps, and 2 front/rear trim panels at 100 mm height. To fit VX, VX SE, TS, PC enclosures width 1000 mm. Pack size: 2 pieces. Business impact: Standardizes base assemblies, saves time, and improves install consistency. Application: Streamlines multi-cabinet deployments in manufacturing lines.Finish, protection, and packaging: Brushed finish aids inspection and matching with existing VX accessories; ABS caps protect edges. Supply includes essential assembly parts and spacer notes for stability. Business impact: Reduces rework, improves field service quality, and supports scalable installations. Application: Suitable for OEMs and integrators delivering modular enclosure systems.Compliance and lifecycle: Type rating UL 50E Type 1 confirms enclosure compatibility and safety alignment. Note: Side trim panels are recommended for complete finish and stability between base/plinth units. Business impact: Enhances regulatory alignment and long-term reliability, lowering lifecycle costs. Application: Critical when meeting facility standards and ensuring robust base assemblies across multiple VX configurations.
Get a Quick Quote for a Rittal 8660052
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660052?
Enquire Now
FAQs
Yes. The VX 8660.052 is designed to fit VX family enclosures, specifically a 1000 mm wide configuration, including VX, VX SE, TS, and PC models. It ships as a kit with four corner pieces, two trim panels, and required assembly parts, ensuring stable base installations and consistent aesthetics across multiple cabinet types.
The supply includes four base/plinth corner pieces, four cover caps, and two front/rear base/plinth trim panels, each 100 mm high. This full kit allows complete base and trim finishing for a 1000 mm wide enclosure, with the side trim panels recommended for added stability and finish quality.
The corner pieces and trim panels utilize stainless steel 1.4301 (AISI 304), delivering excellent corrosion resistance. Cover caps are ABS, and the parts feature a brushed grain 400 surface finish. This combination provides robust durability in demanding environments while maintaining a clean, professional enclosure appearance.
Plan for four corner pieces and two 100 mm high trim panels per 1000 mm-wide unit. Side base/plinth trim panels are recommended to finish the base and improve structural stability between adjacent base units. Ensure alignment with the VX, VX SE, TS, or PC enclosure frame for a seamless, scalable installation.
The large openings in the corner pieces provide optimum access to screw connections, simplifying servicing and upgrades. The stainless steel construction and brushed finish enhance longevity in harsh environments, while standardized trim panels improve serviceability and cabinet uniformity, contributing to reduced downtime and predictable lifecycle costs.
