Rittal VX 8660.053 Base/plinth Corner Piece - UL 50E Type 1
Part Number: 8660053
Quick Summary
Rittal VX 8660.053 base/plinth corner piece is designed to provide robust access and alignment for VX-series enclosures. Installers often struggle with stability gaps and limited screw-access when configuring long base runs; this corner piece solves those issues with generous openings and front/rear trim panels. It carries UL 50E Type 1 certification and aligns with industry standards such as ETIM EC000721 and ECLASS 8.0 27182003 to support procurement and interoperability. The stainless steel 1.4301 construction and brushed surface help resist corrosion in demanding environments, while the included trim panels and caps streamline assembly. Compatible with VX, VX SE, TS, and PC enclosures, it supports scalable installations and predictable maintenance.
Product Information
Extended Description

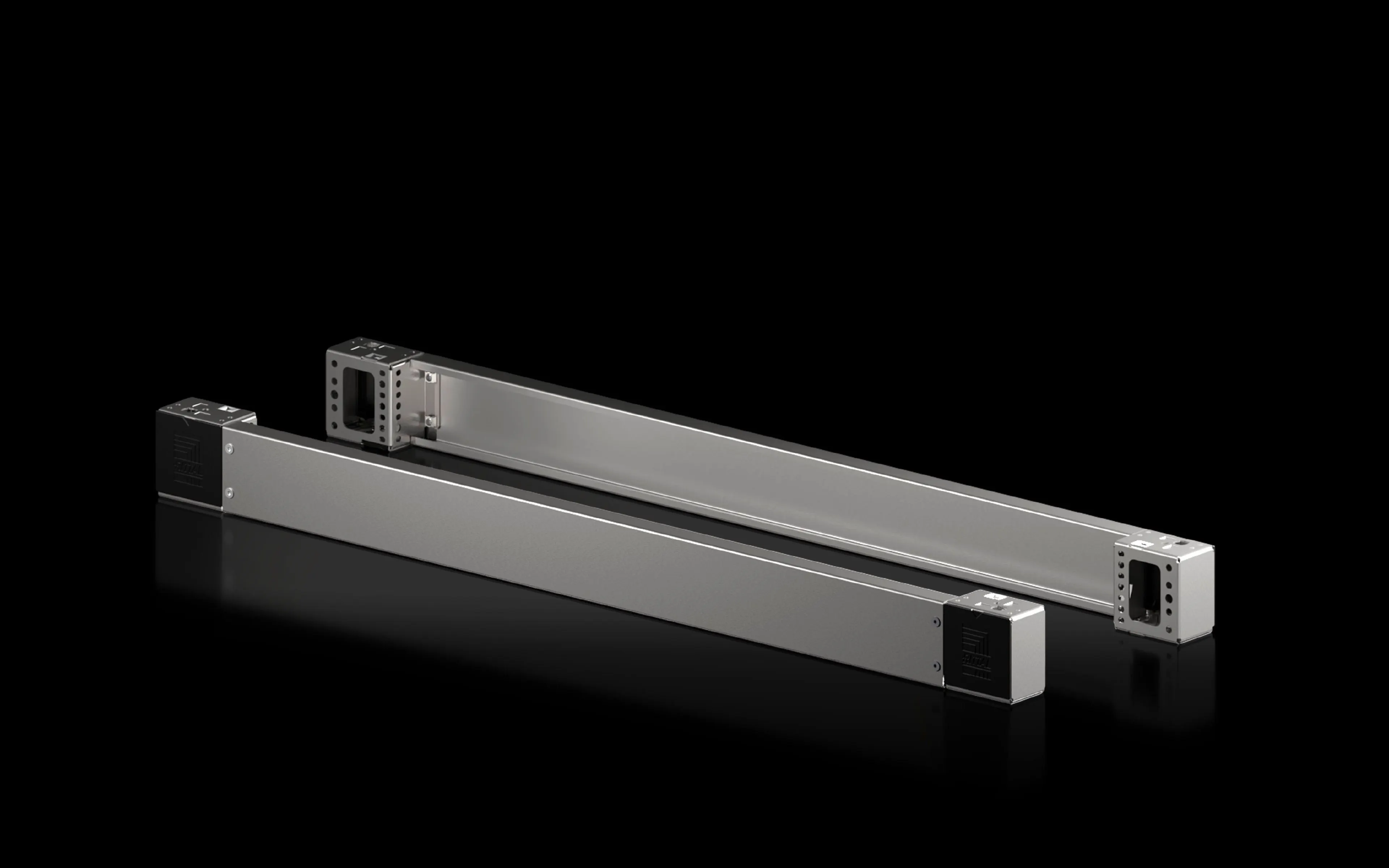

8660053 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 1200 mm, stainless steel, 1.4301
Article number
VX 8660.053
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Cover caps: ABS
Surface finish
Brushed, grain 400
Supply includes
Assembly parts | 4 base/plinth corner pieces | 4 cover caps | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels are required to finish off a base/plinth unit and also for additional stability between the base/plinths.
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX SE | TS | PC | Width: = 1,200 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037892
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 1200 mm, stainless steel, 1.4301
Feature: Stainless steel base/plinth corner piece provides durable, corrosion-resistant support for VX enclosures. Business impact: Using 1.4301 stainless steel reduces replacement cycles in challenging environments and lowers maintenance downtime. Application: Ideal for factory floors and outdoor cabinets where enclosure bases face moisture, dust, and washdown exposure. Feature: Front and rear trim panels with large openings enable optimum access to the screw connections. Business impact: Speeds up assembly and field adjustments, improving project timelines and first-pass quality. Application: Essential for long base runs, modular VX configurations, and multi-cabinet installations. Feature: Supplied parts include four base/plinth corner pieces, four cover caps, and two base/plinth trim panels. Business impact: Standardizes kits across projects, lowers procurement complexity, and ensures consistent fit. Application: Rapid deployment for 1200 mm wide VX, VX SE, TS, and PC enclosures. Feature: Brushed finish (grain 400) on stainless steel surfaces provides an easy-care exterior and professional appearance. Business impact: Maintains aesthetic and resale value while simplifying cleaning routines in production environments. Application: Best for high-visibility cabinet installations on manufacturing floors. Feature: Compatibility with VX family and UL 50E Type 1 rating supports regulatory compliance and safe operation. Business impact: Reduces risk and streamlines approvals for electrical cabinet upgrades and new builds. Application: Suitable for ongoing plant modernization and scalable enclosure projects. Note: Side base/plinth trim panels are required to finish off a base/plinth unit and also for additional stability between base/plinths.
Get a Quick Quote for a Rittal 8660053
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660053?
Enquire Now
FAQs
Yes. VX 8660.053 is designed to fit VX, VX SE, TS, and PC enclosure families with a 1200 mm width. The kit includes four corner pieces, four cover caps, and two front/rear trim panels at a height of 100 mm, enabling consistent integration across the product line and simplifying multi-cabinet installations.
The corner pieces are made from stainless steel 1.4301 (AISI 304) for the main components, with ABS cover caps. The surface finish is brushed grain 400, delivering a durable, easy-to-clean exterior suitable for demanding industrial environments.
Key advantages include large openings that provide optimum access to screw connections, front/rear trim panels that improve alignment, and a standardized kit that accelerates assembly. These features reduce installation time, improve first-pass quality, and simplify future maintenance or reconfiguration across VX-based systems.
VX 8660.053 is rated UL 50E Type 1, reflecting compliance for enclosure assemblies. It also references ETIM EC000721 and ECLASS 8.0 27182003 classifications, which support procurement, interoperability, and cross-system compatibility within standard industry frameworks.
The supply includes four base/plinth corner pieces, four cover caps, and two base/plinth trim panels (front/rear) at 100 mm height, designed to finish and stabilize a 1200 mm wide base/plinth installation and enable rapid, repeatable deployments.
