Rittal VX 8660.060 Base/plinth Corner Piece - UL Type 1
Part Number: 8660060
Quick Summary
The VX 8660.060 base/plinth corner piece from Rittal provides robust corner protection and easy access for VX enclosures. It addresses common installation challenges by enabling stable alignment and faster assembly at the base of the cabinet. Compliance notes include UL 50E Type 1, ETIM EC000721, and ECLASS 8.0 27182003, ensuring reliable electrical enclosure performance. This accessory also supports long-term durability and scalable configuration, helping installers reduce on-site time and maintenance costs while enabling seamless integration with VX, VX SE, TS, and PC enclosures. By delivering precise fit and a clean finish, it strengthens overall enclosure integrity and simplifies future reconfigurations for growing control systems.
Product Information
Extended Description

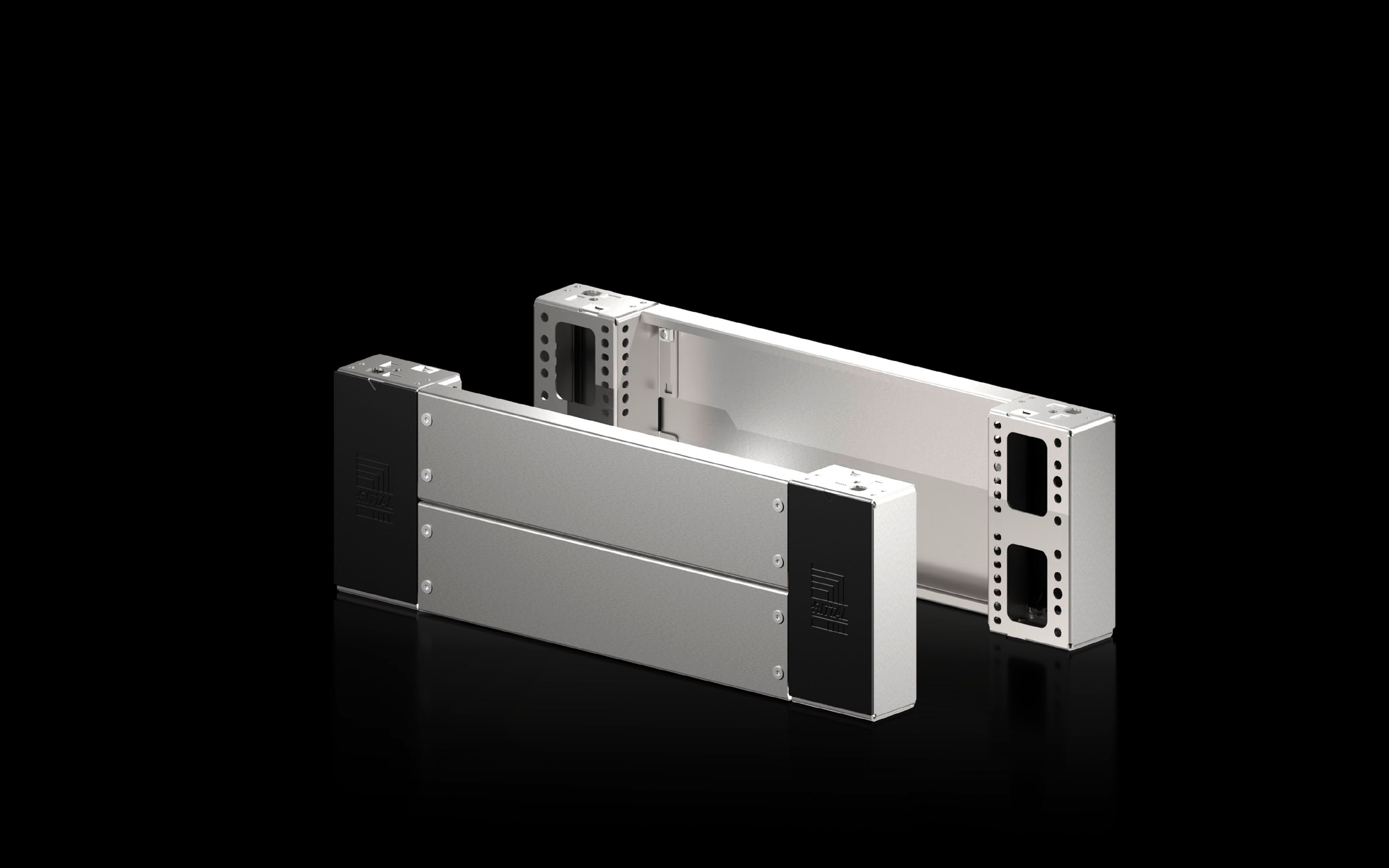

8660060 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 600 mm, stainless steel, 1.4301
Article number
VX 8660.060
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Cover caps: ABS
Surface finish
Brushed, grain 400
Supply includes
Assembly parts | 4 base/plinth corner pieces | 4 cover caps | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels are required to finish off a base/plinth unit and also for additional stability between the base/plinths.
Dimensions
Height:Â 200 mm
To fit
Enclosure type:Â VX | VX SE | TS | PC | Width:Â = 600 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037915
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 600 mm, stainless steel, 1.4301
Feature to business impact to application: VX 8660.060 uses stainless steel 1.4301 components and brushed finish to deliver corrosion resistance in demanding environments, reducing replacement costs and downtime while improving surface protection and cleanliness in control-room installations. The included base/plinth trim panels front and rear provide added stability and a neater aesthetic, which translates to fewer alignment issues during panel mounting and quicker CBT-based commissioning in aerospace, automotive, and process industries. The package includes four corner pieces, four cover caps, and two front/rear trim panels, streamlining ordering and on-site assembly, cutting project lead times and enabling rapid standardization across multiple rack builds. The large base access openings facilitate screw connections, accelerating maintenance and field upgrades with minimal downtime. Overall, this solution supports IP-rated environments and UL 50E Type 1 compliance while enabling scalable, modular enclosure layouts for growing automation systems.
Get a Quick Quote for a Rittal 8660060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660060?
Enquire Now
FAQs
Installation starts with confirming enclosure width of 600 mm, then placing the four corner pieces at the base corners and securing them with the provided assembly parts. Attach the front/rear trim panels and fit the 200 mm high trim pieces to complete the base outline. The set includes cover caps to seal exposed screw connections, so you can achieve a clean, corrosion-resistant finish quickly.
Key specs include H 200 mm, to fit 600 mm wide VX family enclosures (VX, VX SE, TS, PC), stainless steel 1.4301 (AISI 304) construction, brushed surface finish grain 400, and UL 50E Type 1 rating. The package ships with four corner pieces, four cover caps, and multiple trim panels for front and rear installation.
Yes. The VX 8660.060 is designed to fit VX, VX SE, TS, and PC enclosure families with a 600 mm width, providing a consistent base and trim solution across these lines. This compatibility helps standardize base assemblies and reduces part variety in stocking and procurement.
The component is rated UL 50E Type 1 for enclosing capabilities. It also aligns with ETIM EC000721 and ECLASS 8.0 27182003 classifications, supporting digital product data standards and enabling easier procurement and specification in industrial projects.
The kit accelerates base installation, reduces field rework, and minimizes screw-access time thanks to large openings and pre-assembled components. It also provides corrosion resistance with 1.4301 stainless steel, lowering maintenance costs over the enclosure’s lifecycle and improving uptime for critical automation tasks.
