Rittal VX 8660.061 Base/Plinth Corner Piece - UL 50E
Part Number: 8660061
Quick Summary
Rittal VX 8660.061 Base/plinth corner piece provides a robust, accessible base for VX enclosures. Installers often wrestle with gaps between base components and limited screw access, causing slower assembly and more maintenance time. The product is rated UL 50E Type 1 and aligns with ETIM 9 EC000721 and ECLASS 8.0 27182003, which supports procurement and cross-system compatibility. Built from stainless steel 1.4301 with a brushed grain finish, it delivers long-term reliability in demanding environments. By combining durable construction with a complete mounting kit, this corner piece reduces downtime and improves finish consistency, while complementing other Rittal base/accessory offerings for scalable enclosure setups.
Product Information
Extended Description

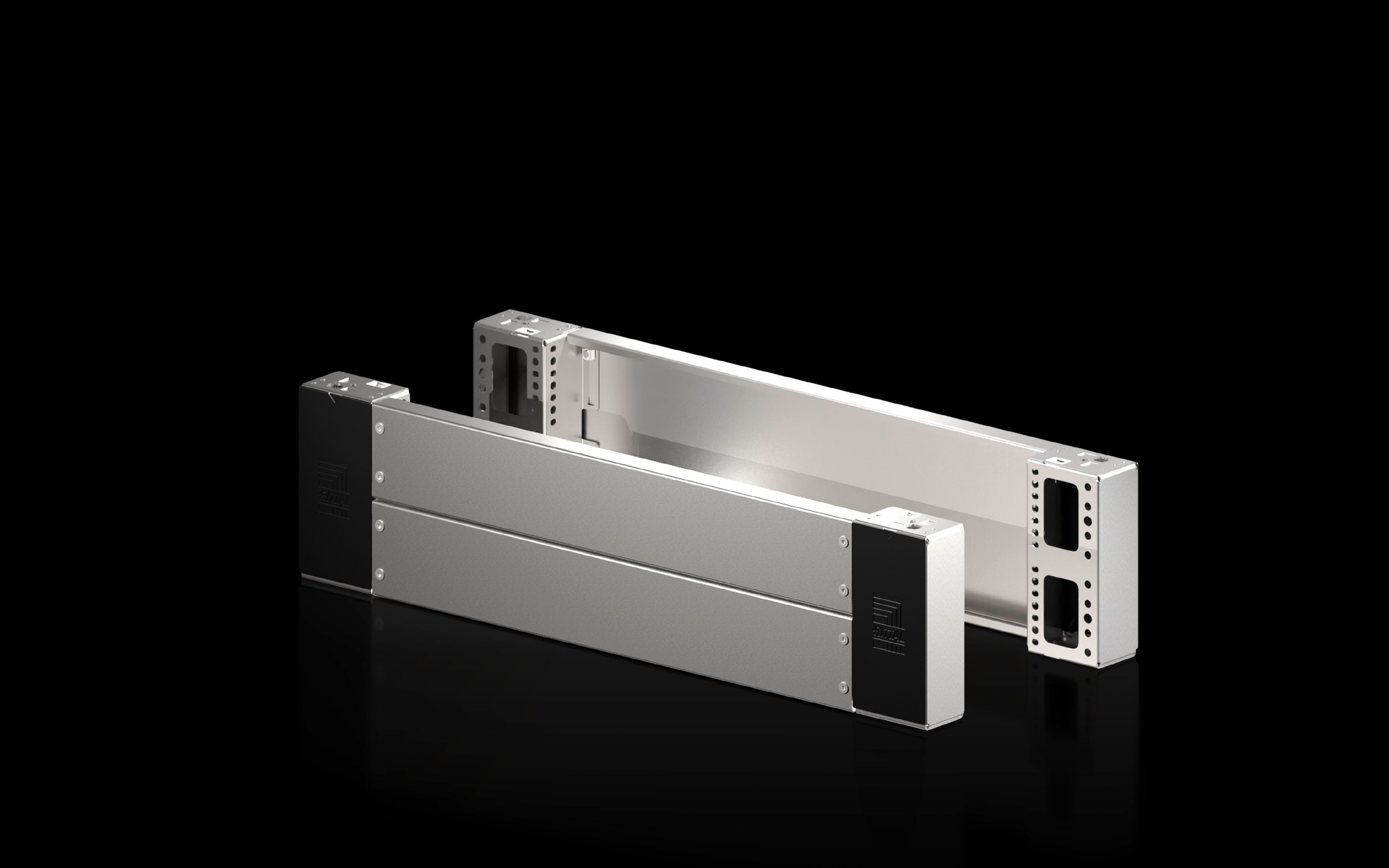

8660061 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 800 mm, stainless steel, 1.4301
Article number
VX 8660.061
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Cover caps: ABS
Surface finish
Brushed, grain 400
Supply includes
Assembly parts | 4 base/plinth corner pieces | 4 cover caps | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels are required to finish off a base/plinth unit and also for additional stability between the base/plinths.
Dimensions
Height:Â 200 mm
To fit
Enclosure type:Â VX | VX SE | TS | PC | Width:Â = 800 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037939
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 800 mm, stainless steel, 1.4301
Feature: The VX base/plinth corner piece with front and rear trim panels creates a continuous base for VX, VX SE, TS and PC enclosures. Business Impact: It ensures precise alignment of base components and easier screw access, shortening assembly time and improving serviceability. Application: Particularly beneficial for 800 mm wide installations where rapid panel mounting is required. Feature: Constructed from stainless steel 1.4301 (AISI 304) for the corner and trim panels, with ABS cover caps. Business Impact: Offers corrosion resistance and longevity in harsh industrial settings, reducing replacement costs. Application: Suitable for control panel cabinets in manufacturing, data centers, or outdoor installations. Feature: Brushed surface finish grain 400. Business Impact: Reduces glare and makes cleaning easier, preserving appearance and hygiene in demanding environments. Application: Exterior surfaces of enclosures exposed to routine maintenance. Feature: Supplied as a complete kit: 4 base/plinth corner pieces, 4 cover caps, 1 base/plinth trim panel front/rear 200 mm high, and 2 trim panels front/rear 100 mm high. Business Impact: Enables fast, drop-in installation and reduces ordering errors. Application: Ideal for rapid base unit assembly on VX/VX SE/TS/PC systems. Feature: Compatibility and standards: fits VX, VX SE, TS, PC enclosures; packs of 2; UL 50E Type 1 rated; EAN and customs data. Business Impact: Streamlines procurement, compliance assurance, and packaging efficiency. Application: Works across multiple enclosure configurations for scalable deployments. Note: Side base/plinth trim panels are required to finish off a base/plinth unit and for additional stability between base/plinths.
Get a Quick Quote for a Rittal 8660061
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660061?
Enquire Now
FAQs
VX 8660.061 is designed to fit 800 mm wide VX, VX SE, TS, and PC enclosure families. The kit includes four base/plinth corner pieces, four cover caps, and front/rear trim panels, enabling a seamless base transition and consistent enclosure aesthetics. This reduces misalignment and shortens installation time, especially in multi-cabinet racks.
The corner components and trim panels use stainless steel 1.4301 (AISI 304) with ABS caps, all finished in brushed grain 400. This combination delivers corrosion resistance in demanding environments while maintaining a professional surface appearance and ease of cleaning for long-term maintenance.
VX 8660.061 carries a UL 50E Type 1 rating for enclosure stability and safety. It is classified under ETIM 9 EC000721 and ETIM 8 EC000721, and aligns with ECLASS 8.0 code 27182003, supporting standardized procurement and interoperability across automation projects.
Yes. The large front/rear trim panels and accessible screw openings simplify assembly, while the complete kit minimizes parts sourcing and assembly steps. The 200 mm high front/rear panel and optional 100 mm high side panels reduce installation time and improve serviceability during routine maintenance.
The package includes 4 base/plinth corner pieces, 4 cover caps, 1 front/rear trim panel 200 mm high, and 2 front/rear trim panels 100 mm high. Side trim panels are recommended for finish and added stability between base units. Follow the enclosure manufacturer’s guidelines for mounting sequence and ensure proper alignment with the 800 mm width.
