Rittal VX 8660.062 Base/Plinth Corner Piece - UL 50E Type 1
Part Number: 8660062
Quick Summary
Rittal VX 8660.062 Base/plinth Corner Piece provides a durable corner solution for VX enclosures used in control cabinets. This design addresses common pain points such as difficult screw-access routes and unstable mounting in tight spaces, enabling faster service and easier maintenance. It carries UL 50E Type 1 protection and aligns with key procurement standards like ETIM EC000721 and ECLASS 27182003 to simplify sourcing and compliance. When paired with front/rear trim panels and side panels, it delivers stable, corrosion-resistant performance for demanding environments. The modular approach supports VX enclosure widths and heights, enabling scalable cabinet builds and predictable maintenance cycles while reducing total cost of ownership.
Product Information
Extended Description

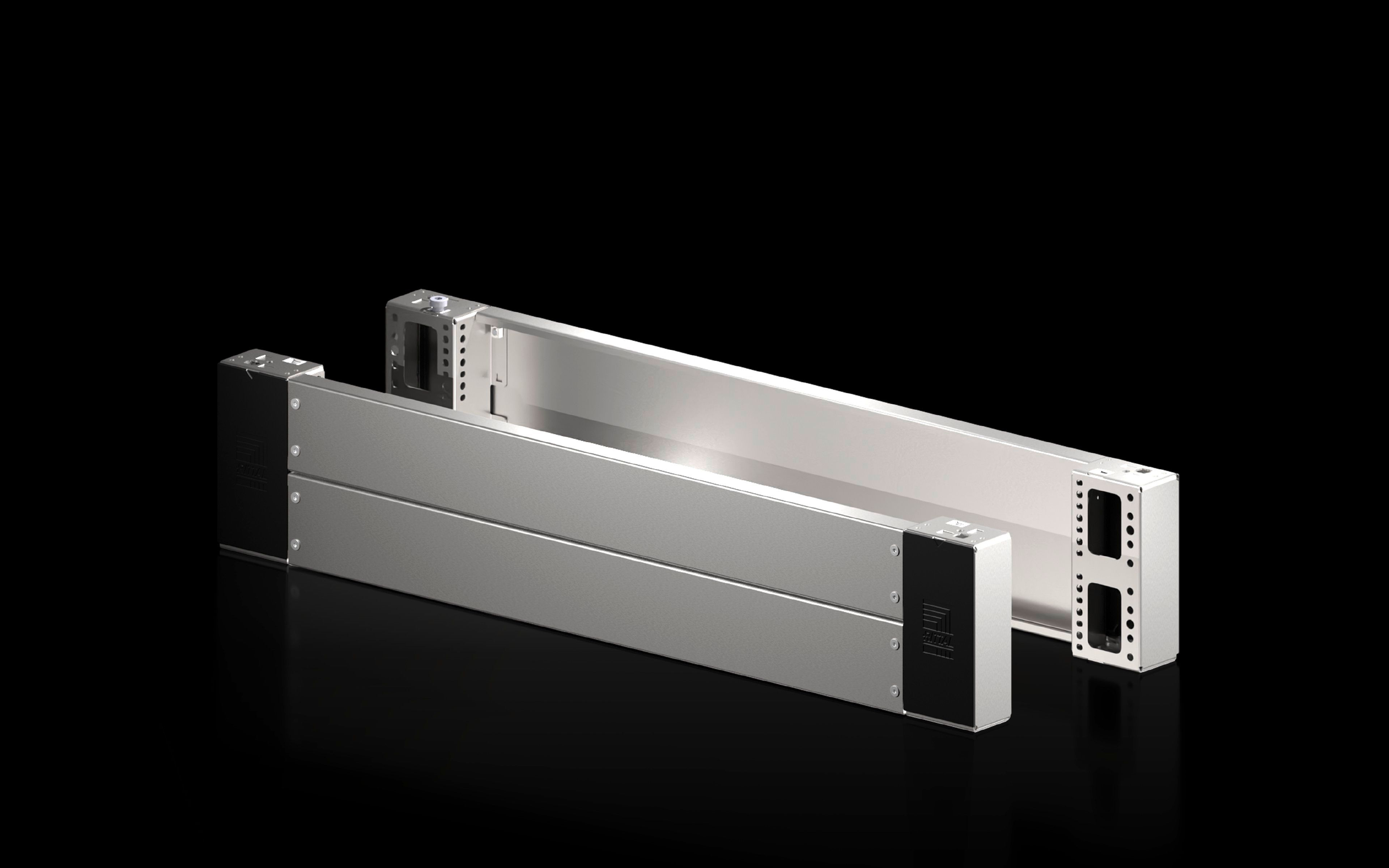

8660062 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 1000 mm, stainless steel, 1.4301
Article number
VX 8660.062
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Cover caps: ABS
Surface finish
Brushed, grain 400
Supply includes
Assembly parts | 4 base/plinth corner pieces | 4 cover caps | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels are required to finish off a base/plinth unit and also for additional stability between the base/plinths.
Dimensions
Height:Â 200 mm
To fit
Enclosure type:Â VX | VX SE | TS | PC | Width:Â = 1,000 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037953
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 1000 mm, stainless steel, 1.4301
Feature: Stainless steel 1.4301 base/plinth corner pieces and trim panels, with ABS cover caps. Impact: Superior corrosion resistance and durability in harsh environments, extending service life. Application: Ideal for VX enclosures in manufacturing and process settings where long-term reliability is critical. Feature: Large openings in the base/plinth corner piece for optimum access to screw connections. Impact: Faster assembly and easier field maintenance, reducing downtime. Application: Service-oriented installations where quick access during wiring and commissioning is essential. Feature: Complete supply includes four base/plinth corner pieces, four cover caps, one front/rear trim panel (200 mm high), and two front/rear trim panels (100 mm high). Impact: Streamlined procurement and consistent component quality, lowering project complexity. Application: New builds and upgrades of 1,000 mm wide VX-type cabinets. Feature: UL 50E Type 1 rating. Impact: Compliance with recognized electrical enclosure safety standards, supporting regulated environments. Application: Electrical control panels and data centers requiring rigorous protection. Feature: Wide enclosure compatibility (VX, VX SE, TS, PC; width 1,000 mm). Impact: Modular, scalable design reduces stock variety and accelerates implementation. Application: Standardized production lines and modular plant architectures. Feature: Side base/plinth trim panels required for finished appearance and added stability. Impact: Improved aesthetics and structural rigidity, with reduced vibration and movement. Application: Finished base units in cabinet rows and multi-unit installations.
Get a Quick Quote for a Rittal 8660062
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660062?
Enquire Now
FAQs
The VX 8660.062 base/plinth corner pieces are designed to fit VX, VX SE, TS, and PC enclosures with a 1,000 mm width. Installation uses supplied assembly parts, including four corner pieces and front/rear trim panels, enabling a straightforward, repeatable mounting sequence that aligns with enclosure rails and base profiles for solid, flat alignment.
The base/plinth corner pieces and trim panels are made from stainless steel 1.4301 (AISI 304), with ABS cover caps. The surface is brushed with grain 400, delivering good corrosion resistance and a professional finish suitable for demanding environments.
Yes. The product carries UL 50E Type 1 protection, ensuring enclosure safety compatibility. It also aligns with ETIM EC000721 and ECLASS 27182003 classifications, aiding procurement and standardization across supply chains.
The package includes 4 base/plinth corner pieces, 4 cover caps, 1 base/plinth trim panel front/rear (200 mm high), and 2 base/plinth trim panels front/rear (100 mm high). This ready-to-install set reduces the need for additional parts and minimizes project lead times.
Yes. Side base/plinth trim panels are recommended to finish the base/plinth unit and enhance stability between base/plinths. This approach improves rigidity, provides a clean look, and supports longer-term maintenance with easier access to critical connections.
