Rittal VX 8660.063 Base Corner Piece - 1.4301, Type 1
Part Number: 8660063
Quick Summary
Rittal VX 8660.063 base corner piece provides robust corner protection and easy access for VX/VX SE enclosure systems. In practice, installers often wrestle with limited access to screw connections and unstable bases during assembly. This component is certified to UL 50E Type 1 and ships with front and rear trim panels plus base trim components, ensuring a solid build. The stainless steel construction (1.4301) with a brushed finish delivers durable, corrosion-resistant performance in harsh environments. By simplifying installation and improving stability, it supports faster commissioning and reduces maintenance costs, while maintaining compatibility with VX, TS, and PC families.
Product Information
Extended Description

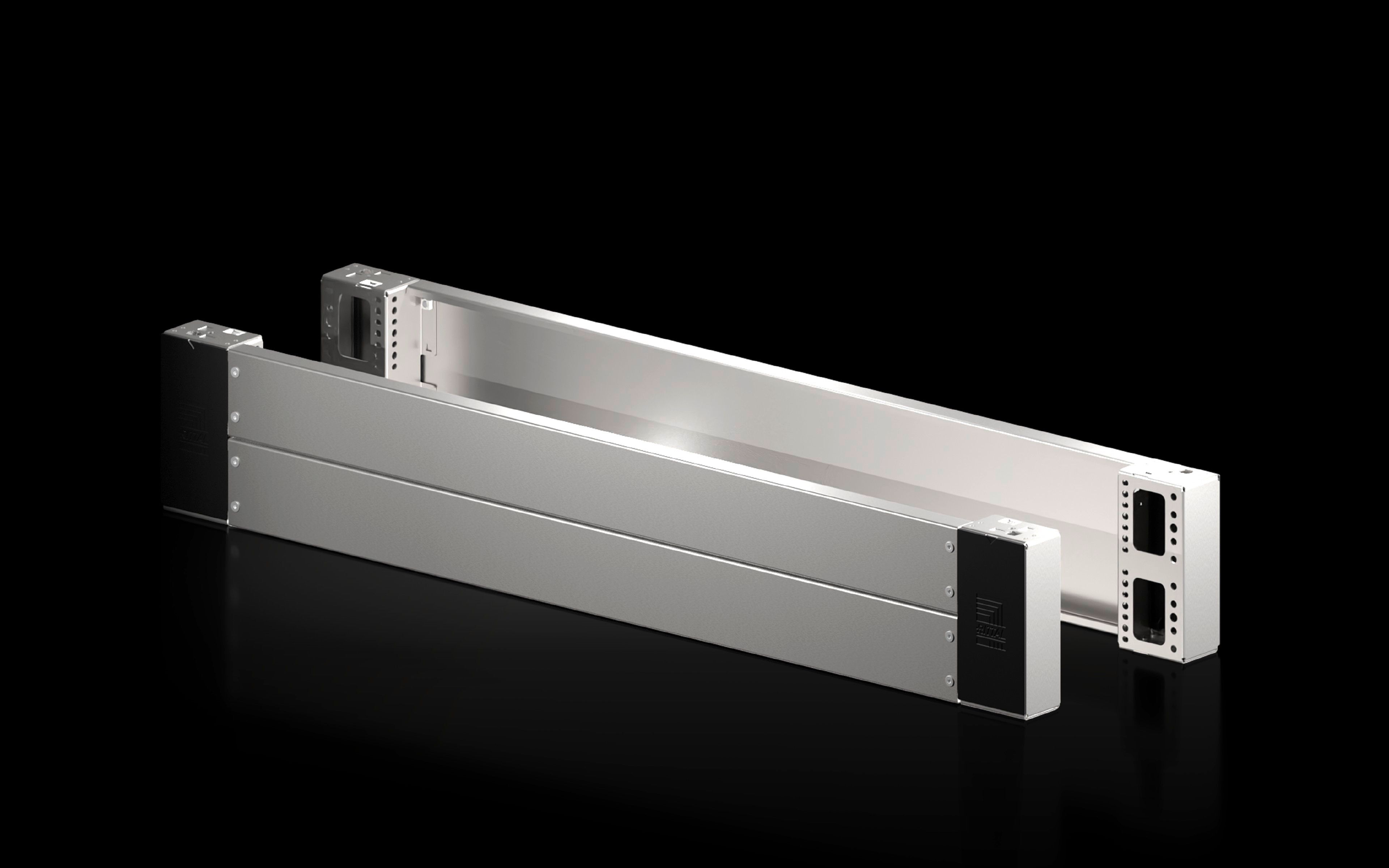

8660063 Rittal: VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 1200 mm, stainless steel, 1.4301
Article number
VX 8660.063
Material
Base/plinth corner piece: Stainless steel 1.4301 (AISI 304) | Base/plinth trim panel front/rear: Stainless steel 1.4301 (AISI 304) | Cover caps: ABS
Surface finish
Brushed, grain 400
Supply includes
Assembly parts | 4 base/plinth corner pieces | 4 cover caps | 1 base/plinth trim panel, front/rear, 200 mm high | 2 base/plinth trim panels, front/rear, 100 mm high
Note
Side base/plinth trim panels are required to finish off a base/plinth unit and also for additional stability between the base/plinths.
Dimensions
Height:Â 200 mm
To fit
Enclosure type:Â VX | VX SE | TS | PC | Width:Â = 1,200 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177038554
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth corner piece with trim panel, front and rear, H: 200 mm, for W: 1200 mm, stainless steel, 1.4301
Feature: Material and finish enable longevity and reliability in tough environments. Benefit: Stainless steel 1.4301 and brushed grain finish resist corrosion and wear, reducing replacement costs. Application: Ideal for harsh industrial enclosures in manufacturing and automation facilities. Feature: Dimensions and fit ensure compatibility with 1200 mm wide VX frames. Benefit: Precise alignment minimizes on-site adjustments and speeds up installation. Application: Fits VX, VX SE, TS, PC families, enabling scalable cabinet stackage. Feature: Included components streamline procurement and assembly. Benefit: Covers, trims, and corner pieces come as a kit, reducing sourcing steps and on-site handling. Application: Faster commissioning of VX-based enclosures. Feature: Compliance and compatibility support. Benefit: UL 50E Type 1 certification and ETIM/ECLASS alignment assist regulatory planning and standardization. Application: Safer installation and consistent documentation across facilities. Feature: Long-term value and maintenance efficiency. Benefit: Corrosion resistance and stable base reduce downtime and maintenance costs. Application: Suitable for continuous operation in production lines and data centers.
Get a Quick Quote for a Rittal 8660063
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660063?
Enquire Now
FAQs
The VX 8660.063 base corner piece is designed for VX family enclosures and fits VX, VX SE, TS, and PC models with a 1200 mm width. It ships as a complete kit including four base/plinth corner pieces, four cover caps, and front/rear trim panels. This ensures consistent mounting and alignment across production lines.
Stainless steel 1.4301 (AISI 304) provides excellent corrosion resistance and durability in challenging environments. The brushed finish reduces wear from handling and cleaning, extending service life and reducing replacement costs. This material choice supports reliable performance in manufacturing plants, substations, and automation installations over the long term.
The kit includes 4 base/plinth corner pieces, 4 cover caps, 1 base/plinth trim panel (front/rear, 200 mm high), and 2 trim panels (front/rear, 100 mm high). Having all pieces in one shipment minimizes procurement steps, speeds up on-site assembly, and improves first-pass accuracy, reducing commissioning time for VX-based enclosures.
The VX 8660.063 carries UL 50E Type 1 rating, indicating suitability for indoor electrical enclosures. While CE and regional requirements vary, the UL Type 1 certification supports electrical safety compliance in many markets. ETIM 9/ETIM 8 and ECLASS 8.0 classifications further assist standardized procurement and integration into engineering data systems.
Using this base corner piece improves enclosure stability, reduces vibration-related loosening, and minimizes corrosion-related downtime thanks to stainless steel 1.4301. The result is lower maintenance costs, fewer field repairs, and faster asset commissioning, delivering a measurable ROI through extended equipment life, fewer spare parts, and more consistent enclosure performance across lines.
