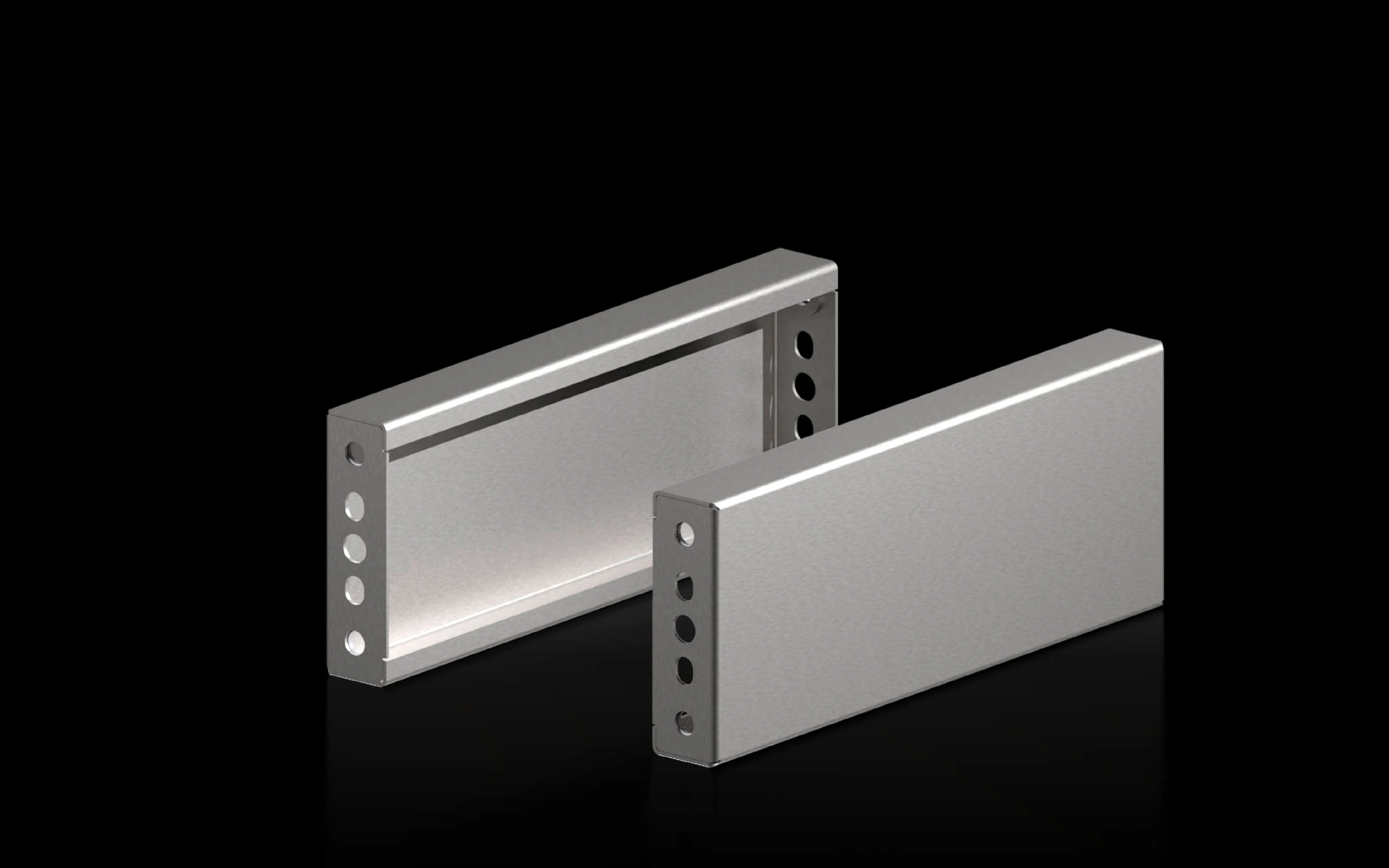

Rittal 8660070 Base/Plinth Trim Panel - UL 50E Type 1
Part Number: 8660070
Quick Summary
Rittal 8660070 base/plinth trim panel is a stainless steel side trim designed to finish VX enclosure bases. Engineers often wrestle with exposed base edges, gaps, and corrosion risk that complicate assembly and ongoing maintenance. This part carries UL 50E Type 1 certification, and aligns with ETIM 9 EC000721 and ECLASS 8.0 27182003 standards for reliable procurement. Used with VX, VX SE, TS, PC cabinets, it delivers a durable, visually clean finish while simplifying installation and future service. Packaged as a 2‑piece set with assembly parts, it supports efficient stocking and predictable lead times. Together, this trim panel boosts enclosure integrity and reduces total cost of ownership over the product lifecycle.
Product Information
Extended Description
8660070 Rittal: VX base/plinth trim panel, sides, H: 100 mm, for D: 400 mm, stainless steel, 1.4301
Article number
VX 8660.070
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
Assembly parts
Note
Components from the 1st generation base/plinth system cannot be combined with components from the 2nd generation base/plinth system
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX SE | TS | PC | Depth: = 400 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037793
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, sides, H: 100 mm, for D: 400 mm, stainless steel, 1.4301
Stainless steel 1.4301 (AISI 304) with a brushed grain 400 finish delivers robust corrosion resistance in service and a professional appearance for exposed cabinet edges. The business impact is reduced maintenance costs and longer product life. In practice, install these trim panels on VX base units to create clean side finishes that resist humidity, cleaning agents, and typical office and workshop environments. Dimensions set the fit: height 100 mm, designed to match D: 400 mm bases. This precise sizing reduces gaps and misalignment, speeding up installation and ensuring enclosure integrity. Fits VX, VX SE, TS, and PC enclosure families, simplifying part selection for projects. UL 50E Type 1 rating confirms suitability for cabinet service in ordinary environments, supporting regulatory compliance. Packaged as 2 pieces with assembly parts included, the kit reduces vendor handling and stocking complexity. Note that components from the 1st generation base/plinth system cannot be mixed with the 2nd generation system, preventing compatibility issues and rework.
Get a Quick Quote for a Rittal 8660070
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660070?
Enquire Now
FAQs
Begin by confirming the enclosure depth (400 mm) and the base/plinth mounting points. The VX 8660.070 kit includes assembly parts and is designed to fit VX, VX SE, TS, and PC enclosures. Align the panel height to 100 mm and secure with the provided hardware, ensuring a flush, corrosion-resistant finish on the sides. Ensure not to mix with the second generation base/plinth components to avoid fit issues.
Key specs include material stainless steel 1.4301 (AISI 304), brushed grain 400 surface finish, height 100 mm, depth compatibility 400 mm, and UL 50E Type 1 rating. The product ships as a 2-piece pack with assembly parts. It is designed to fit VX, VX SE, TS, and PC enclosure families and carries the EAN 4028177037793 for sourcing and cataloging.
Yes, the panel uses stainless steel 1.4301 (AISI 304), which provides solid corrosion resistance in typical cabinet exteriors and workshop environments. While it does not specify IP ratings here, its stainless steel construction and brushed finish offer a durable exterior suitable for many non-washdown applications, reducing maintenance frequency and extending cabinet life in standard industrial settings.
The part carries UL 50E Type 1 certification, indicating suitability for ordinary electrical enclosure service. It is also referenced by ETIM 9 EC000721 and ETIM 8 EC000721 as data-classification entries and aligns with ECLASS 8.0 27182003. These standards support accurate data exchange, procurement workflows, and regulatory alignment during design and sourcing.
The two-piece pack with assembly parts reduces stocking complexity and shortens assembly time, lowering labor costs during installation. Its corrosion-resistant stainless steel surface minimizes maintenance needs, while the generation-specific compatibility note prevents rework from incompatible generations. Overall, these factors contribute to lower total cost of ownership and more predictable maintenance planning.
