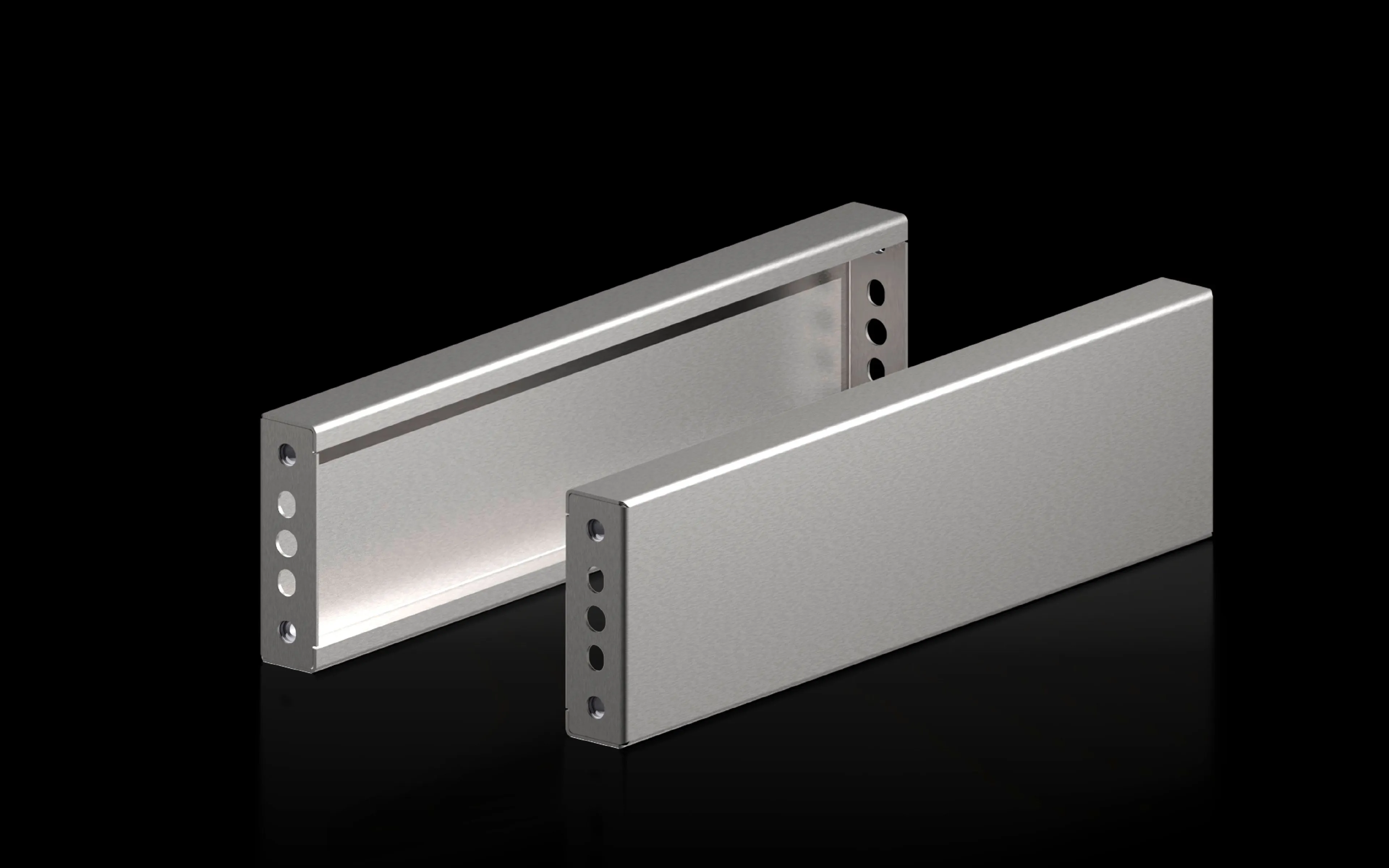

Rittal VX 8660.071 Base/plinth Trim Panel - UL Type 1
Part Number: 8660071
Quick Summary
The VX 8660.071 base/plinth trim panel is a durable finish component designed to cap the base of Rittal enclosures. It helps eliminate gaps and provides a clean, professional appearance in demanding industrial environments. This panel carries a UL 50E Type 1 rating and is constructed from stainless steel 1.4301 (AISI 304) with a brushed grain 400 finish for longevity and ease of cleaning. While it integrates seamlessly with VX systems, its use also supports consistent aesthetics across VX SE, TS, and PC enclosure families, delivering value through standardized installation and reliable protection of the base area.
Product Information
Extended Description
8660071 Rittal: VX base/plinth trim panel, sides, H: 100 mm, for D: 500 mm, stainless steel, 1.4301
Article number
VX 8660.071
Material
Stainless steel 1.4301 (AISIÂ 304)
Surface finish
Brushed, grain 400
Supply includes
Assembly parts
Note
Components from the 1st generation base/plinth system cannot be combined with components from the 2nd generation base/plinth system
Dimensions
Height:Â 100 mm
To fit
Enclosure type:Â VX | VX SE | TS | PC | Depth:Â = 500 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037816
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, sides, H: 100 mm, for D: 500 mm, stainless steel, 1.4301
Feature: Stainless steel construction 1.4301 (AISI 304) with Brushed finish. Benefit: Delivers corrosion resistance and a high-end surface that stands up to harsh environments, reducing maintenance and replacement costs. Application: Ideal for damp or chemical-adjacent environments around VX enclosures, where durable side trim panels are required. Feature: Height 100 mm and depth compatibility 500 mm. Benefit: Ensures a precise, integrated look with minimal gaps, speeding up installation and improving enclosure integrity. Application: Used on base/plinth areas of VX, VX SE, TS, and PC enclosures to maintain structural alignment. Feature: Supply includes assembly parts and 2-piece packs. Benefit: Reduces on-site sourcing time and ensures correct hardware for a secure fit. Application: Fits standard VX base/plinth assemblies, enabling rapid deployment in manufacturing lines. Feature: Gen compatibility note — avoid mixing components from 1st and 2nd generation base/plinth systems. Benefit: Prevents misfits and warranty concerns, protecting long-term investment. Application: Procurement and installation planning to ensure correct product pairing. Feature: UL 50E Type 1 rating. Benefit: Provides certification-backed safety for enclosure bases, enhancing compliance and customer confidence. Application: Required where electrical enclosures demand Type 1 protection and standardization across facilities.
Get a Quick Quote for a Rittal 8660071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660071?
Enquire Now
FAQs
The VX 8660.071 trim panel is designed for VX, VX SE, TS, and PC enclosure families with a 500 mm depth. It provides a consistent side finish for base/plinth units and helps maintain a clean, professional appearance across multiple cabinet lines. When planning a retrofit, verify that the existing base/plinth system is compatible with the first or second generation components to avoid fit issues.
Key specifications include material stainless steel 1.4301 (AISI 304), surface finish Brushed grain 400, height 100 mm, depth for fitment 500 mm, and packs of 2 pieces. The supply includes assembly parts, and the product carries a UL 50E Type 1 rating for enclosure safety. The product is intended for VX family enclosures and is linked to ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications.
Installation is straightforward with the included assembly parts. Align the trim panel to the base/plinth of the enclosure, ensure the 500 mm depth requirement is met, and secure with the supplied hardware. Do not mix components from 1st and 2nd generation base/plinth systems, as this can create misalignment gaps and impact warranty coverage.
Yes. The VX 8660.071 base/plinth trim panel carries a UL 50E Type 1 rating, providing documented safety compliance for enclosing electrical components. The stainless steel construction (1.4301) also contributes to durability in demanding environments. For procurement and classification, it is indexed under ETIM 9 EC000721 and ECLASS 8.0 27182003.
The stainless 1.4301 material and brushed finish resist corrosion and are easy to clean, reducing maintenance frequency and costs. The integrated design speeds installation and reduces field modifications, delivering faster commissioning and a more consistent, professional appearance across fleets of VX-based enclosures, which translates to lower lifecycle costs and improved uptime.
