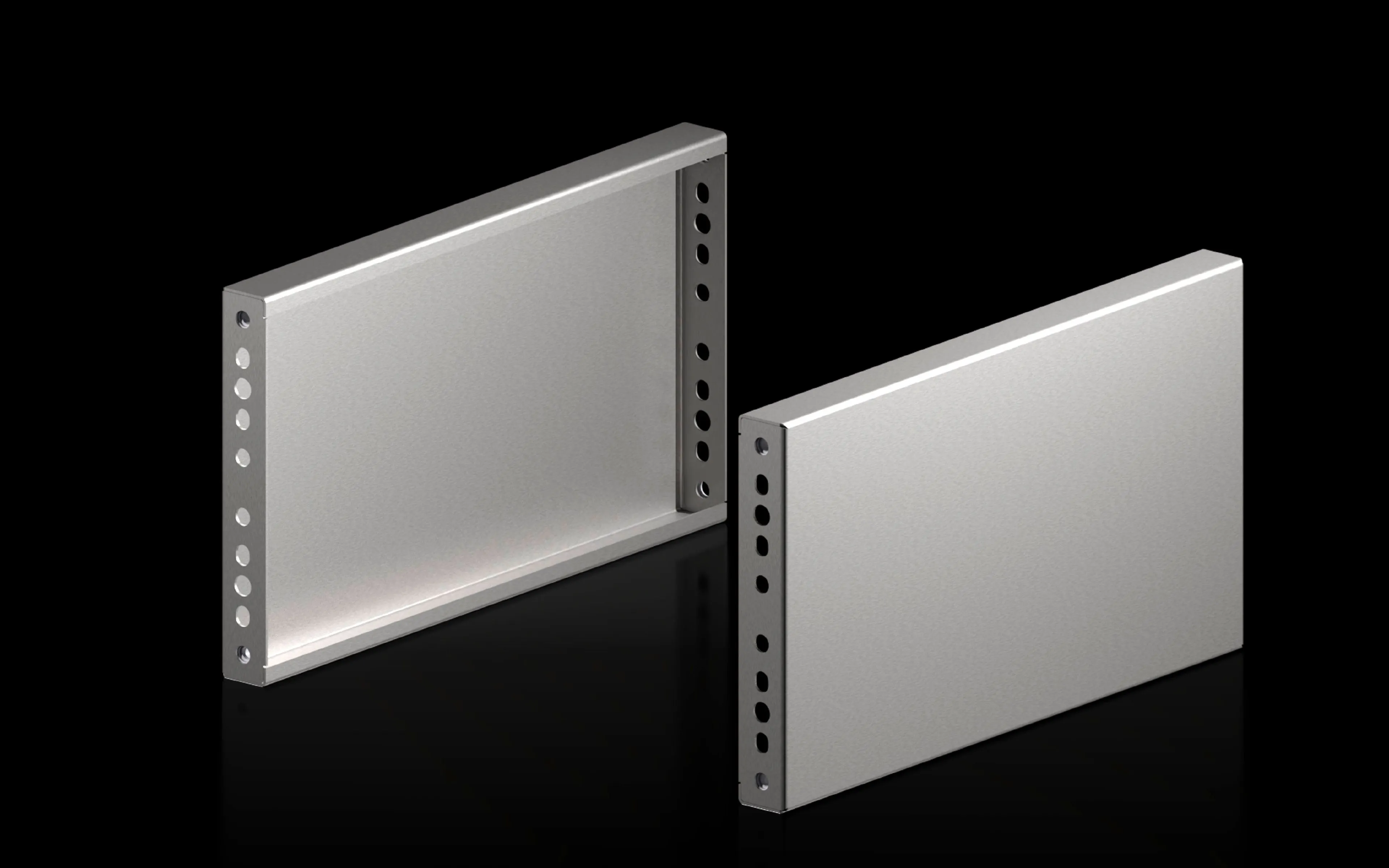

Rittal VX 8660.081 Base/Plinth Trim Panel - UL 50E Type 1
Part Number: 8660081
Quick Summary
VX 8660.081 base/plinth trim panel finishes VX enclosures by neatly trimming the base at the sides. This helps prevent exposed edges and uneven gaps that can collect dust or moisture, reducing maintenance overhead. Built from stainless steel 1.4301 (AISI 304) with a brushed surface, it delivers reliable corrosion resistance in demanding environments. The unit is UL 50E Type 1 rated and aligns with ETIM EC000721 and ECLASS 27182003 for consistent data exchange, ensuring procurement and engineering teams speak the same language. Compatible with VX, VX SE, TS, and PC enclosures at a 500 mm depth, it supports durable installations, easy assembly, and professional aesthetics across plant floors.
Product Information
Extended Description
8660081 Rittal: VX base/plinth trim panel, sides, H: 200 mm, for D: 500 mm, stainless steel, 1.4301
Article number
VX 8660.081
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
Assembly parts
Note
Components from the 1st generation base/plinth system cannot be combined with components from the 2nd generation base/plinth system
Dimensions
Height: 200 mm
To fit
Enclosure type: VX | VX SE | TS | PC | Depth: = 500 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
Customs tariff number
94039910
EAN
4028177037748
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, sides, H: 200 mm, for D: 500 mm, stainless steel, 1.4301
Material and finish provide long-term durability in challenging environments. The VX 8660.081 uses stainless steel 1.4301 (AISI 304) with a brushed grain 400 surface, delivering excellent corrosion resistance and a clean, maintenance-friendly appearance that reduces downtime for cleaning and replacements. This translates to lower lifecycle costs and a more reliable enclosure presentation in factories, data centers, or harsh industrial areas. The panel is designed to fit VX family enclosures at 500 mm depth and 200 mm height, ensuring precise alignment with enclosure frames and faster on-site installation, which minimizes project timelines and commissioning windows. Packaging includes assembly parts, simplifying sourcing and reducing the risk of missing components during install. The “1st generation” base/plinth components cannot be mixed with “2nd generation” parts, preventing fitment risk and warranty issues in upgrades. UL 50E Type 1 certification and ETIM/ECLASS classifications support regulatory compliance and supply-chain data integrity, while the 2-piece packs streamline stocking and logistics. Overall, this trim panel delivers a durable aesthetic upgrade with predictable performance, aiding maintenance planning and procurement workflows.
Get a Quick Quote for a Rittal 8660081
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660081?
Enquire Now
FAQs
Yes. The VX 8660.081 base/plinth trim panel is designed to fit VX, VX SE, TS, and PC enclosure families at a depth of 500 mm and height of 200 mm. It ships in packs of two and includes assembly parts to streamline installation. Note that components from the first generation base/plinth system cannot be mixed with the second generation components, preventing fitment issues.
The panel is made from stainless steel 1.4301 (AISI 304) with a brushed surface finish (grain 400). This combination provides superior corrosion resistance and a clean aesthetic, which is important in damp, washdown, or production environments. A robust finish helps maintain appearance and reduces maintenance cycles over the life of the enclosure.
Packs consist of two base/plinth trim panels, and the package includes assembly parts needed to mount the 200 mm high trim at the 500 mm depth. This packaging approach supports efficient stocking and reduces the risk of incomplete kits during field installation, helping keep projects on schedule.
VX 8660.081 carries UL 50E Type 1 rating for enclosure protection and safety. It is categorized under ETIM 9 EC000721 and ETIM 8 EC000721, with ECLASS 8.0 code 27182003, aligning with common industrial data standards to facilitate procurement, maintenance, and cross-system compatibility.
The panel improves durability and edge aesthetics, reducing maintenance costs and downtime. Its corrosion resistance supports longer service life in challenging environments, while UL 50E Type 1 compliance helps ensure safety and regulatory alignment. Quick installation and standardized data give procurement and engineering teams predictable timelines and streamlined inventory management.
