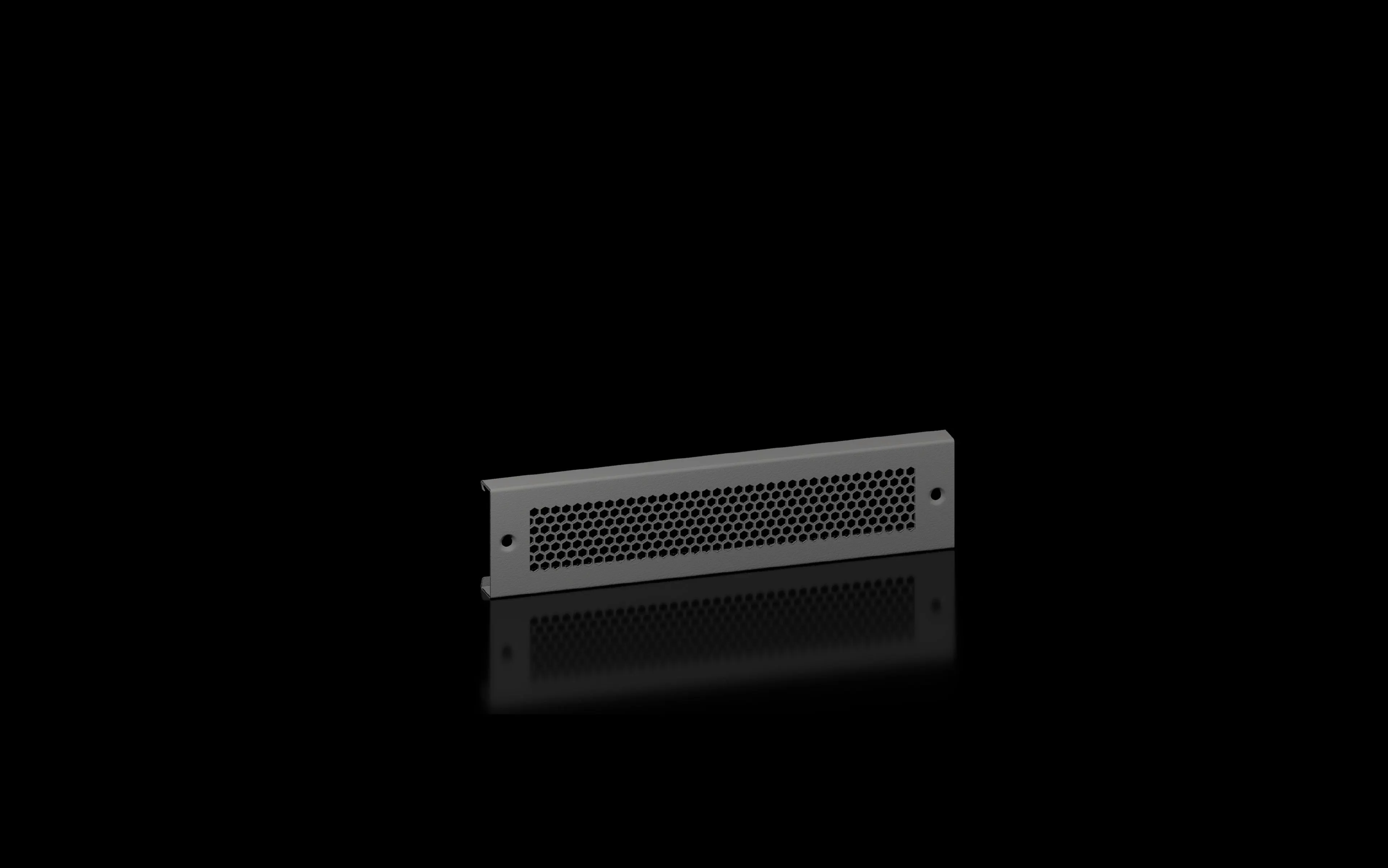

Rittal VX 8660.090 Vent Panel - UL 50E Type 1
Part Number: 8660090
Manufacturer
Rittal
Part number
8660090
Alt Part Number
VX 8660.090
Quick Summary
Rittal VX 8660.090 vent panel enables base/plinth ventilation for VX enclosures in 600 mm wide installations. This solution helps prevent heat buildup that can compromise performance and shorten service life in compact electrical cabinets. With UL 50E Type 1 certification and alignment to ETIM EC000721 and ECLASS 27182003, it supports regulatory compliance and procurement workflows. The vented base panel is made from sheet steel with a durable RAL 9005 finish, and ships with assembly parts for fast, tool-efficient installation. By enabling controlled airflow at the enclosure base, it reduces cooling load and extends component life, while preserving enclosure integrity and ease of maintenance for engineers and procurement teams.
Product Information
Extended Description
8660090 Rittal: VX base/plinth trim panel, vented, for W/D: 600 mm, sheet steel
Article number
VX 8660.090
Design
Vented
Material
Sheet steel
Colour
RAL 9005
Supply includes
Assembly parts
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | To fit width/depth: 600 mm
Type rating to UL 50E
Type 1
Weight/pack
1.42 kg
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
Customs tariff number
94039910
EAN
4028177982949
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel, vented, for W/D: 600 mm, sheet steel
Vented design provides controlled airflow at the base → This improves thermal management by reducing hot spots and extending component life under continuous loads → It applies to VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX enclosures up to 600 mm wide. Sheet steel construction with a durable RAL 9005 finish → Enhances durability and corrosion resistance in harsh industrial environments → Ideal for long-term enclosure reliability in manufacturing, data centers, and control rooms. Includes assembly parts for quick installation → Reduces commissioning time and field errors → Supports fast upgrades to VX base/plinth systems without specialized tooling. Broad compatibility with enclosure types VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX and fixed 600 mm width/depth → Streamlines procurement and reduces SKU fragmentation → Perfect for standardized plant layouts and multi-brand sites. UL 50E Type 1 certification and ETIM EC000721, ECLASS 27182003 classifications → Provides regulatory assurance and straightforward documentation for audits → Facilitates purchasing, engineering, and compliance workflows. Pack configuration 2 pieces per pack, weight 1.42 kg per pack → Improves shipping efficiency and handling on site → Enables predictable logistics and stocking for maintenance crews.
Get a Quick Quote for a Rittal 8660090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660090?
Enquire Now
FAQs
Install the VX 8660.090 vent panel by aligning it with the VX base/plinth system and using the included assembly parts. It fits VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX enclosures up to 600 mm wide. The kit simplifies mounting and reduces commissioning time for field technicians.
The vent panel is designed for VX family enclosures and related models, with a 600 mm width/depth requirement. Height is 100 mm, and each pack weighs 1.42 kg, with 2 pieces per pack. It’s compatible with VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX variants.
The VX 8660.090 carries UL 50E Type 1 certification for enclosure ventilation. It is classified under ETIM EC000721 and ECLASS 27182003, supporting accurate procurement data, audits, and cross-system compatibility in industrial purchasing workflows.
Vented base/plinth panels provide controlled airflow at the enclosure base, reducing heat buildup and hot spots. This improves thermal performance, enhances reliability, extends component life, and lowers maintenance downtime. They are especially beneficial for 600 mm wide VX enclosures used in demanding industrial environments.
By improving enclosure cooling and reducing thermal stress, these panels can lower energy consumption for cooling systems and extend service intervals for components. Quick installation with included parts reduces labor costs, and standardized sizing simplifies spares management, contributing to a faster payback in facilities with multiple VX enclosures.
