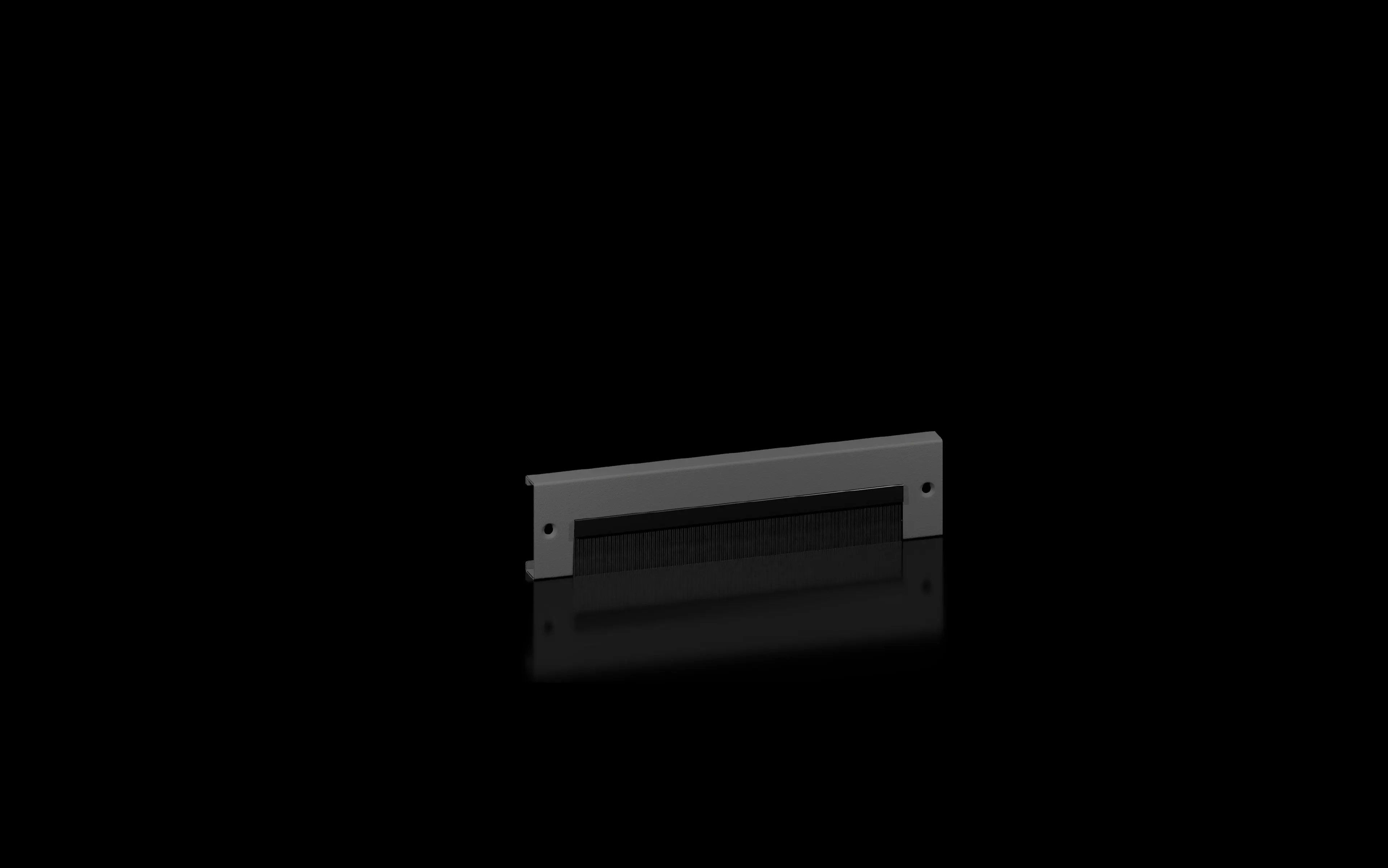

Rittal VX 8660.092 Base/Plinth Trim Panel - Type 1 UL 50E
Part Number: 8660092
Manufacturer
Rittal
Part number
8660092
Alt Part Number
VX 8660.092
Quick Summary
Rittal VX 8660.092 base/plinth trim panel with brush strip is designed to seal cable entry within VX enclosure systems while preserving enclosure integrity. Users often struggle with gaps, dust ingress, and cluttered cable routes that slow assembly and compromise reliability. This accessory is aligned with UL 50E Type 1, and complements ETIM EC000721 and ECLASS 27182003 classifications to support standardised procurement and maintenance. By integrating the trim panel, engineers can achieve a cleaner build, faster installation, and consistent sealing across VX, VX IT, VX SE and related enclosure families, while maintaining a 600 mm width fit for modular scalability and workflow efficiency.
Product Information
Extended Description
8660092 Rittal: VX base/plinth trim panel with brush strip, for width/depth: 600 mm
Article number
VX 8660.092
Design
with brush strip
Material
Base/plinth trims: Sheet steel | Brush strip: Plastic, self-extinguishing
Colour
RAL 9005
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | To fit width/depth: 600 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
Assembly instruction
For installation in the depth, the optional trim panel attachment is required.
Customs tariff number
73269098
EAN
4028177985490
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel with brush strip, for width/depth: 600 mm
Feature: Brush strip design provides a tight seal at the cable entry, reducing dust ingress and improving enclosure integrity. Impact: Lower maintenance costs and fewer downtime events due to external contaminants. Application: Use in VX base/plinth entries to maintain enclosure performance during harsh plant conditions. Feature: 600 mm width compatibility supports a wide range of VX and TX enclosure configurations. Impact: Simplifies stock and reduces part variants, speeding up procurement and project timelines. Application: Fits base/plinth systems across VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX families. Feature: Sheet steel trims with a self-extinguishing plastic brush strip offer durability and improved fire safety. Impact: Enhanced compliance with fire safety standards and longer service life under industrial conditions. Application: Ideal for heavy-use panels in electrical infrastructure environments. Feature: Optional trim panel attachment enables positioning at front, rear or side of the base/plinth corner piece. Impact: Flexible installation and retrofitting without major rework, reducing commissioning risk. Application: Installation in depth requires the attachments for proper depth alignment. Feature: Colorful, durable finish in RAL 9005 supports consistent branding and corrosion resistance in factory floors. Impact: Aesthetically cohesive installations with reliable visibility and maintenance. Application: Suitable for paneling that must match other VX components and enclosure aesthetics. Insight: In practice, combining the VX granulometry with brush strip trim panels supports lean assembly, faster changeovers, and predictable service life in automation and electrical infrastructure projects.
Get a Quick Quote for a Rittal 8660092
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660092?
Enquire Now
FAQs
VX 8660.092 is designed for VX base/plinth systems and fits VX, VX IT, VX SE, as well as related families such as TX CableNet, TS and TS IT, TP, PC, IW, and CX. Its 600 mm width ensures broad compatibility across standard VX configurations, enabling straightforward retrofits and scalable installations.
Installation requires the optional trim panel attachment to set the panel depth correctly. For depth installation, ensure the trim panel attachment is used, align the 600 mm width with the enclosure base, and secure the sheet steel trims and brush strip to achieve a continuous seal at the cable entry.
Expect reduced dust ingress and cleaner cable entry paths, improved sealing against contaminants, and faster assembly times due to standardized parts. The brush strip provides a self-extinguishing material option, contributing to safer, more reliable enclosure ecosystems in demanding industrial environments.
The product is specified with a Type rating to UL 50E Type 1, indicating suitability for electrical enclosures that require a basic, non-combustible enclosure environment. This supports compliance in many North American and international applications where standard enclosure ratings are mandated, while ETIM EC000721 and ECLASS 27182003 classifications aid in procurement.
The trim panel helps maintain a clean, sealed cable entry, reducing field rework and dust-related wear. Material compatibility (sheet steel trims and self-extinguishing brush) offers durability and fire-safety compliance, contributing to lower lifecycle costs and predictable maintenance planning in automation projects.
