Rittal VX 8660.093 Base Trim Panel - Type 1 UL50E
Part Number: 8660093
Manufacturer
Rittal
Part number
8660093
Alt Part Number
VX 8660.093
Quick Summary
The VX base/plinth trim panel with brush strip provides a clean cable-entry solution for VX enclosures in industrial control cabinets. In many installations, gaps around cable entries invite dust, corrosion and maintenance headaches. The product carries UL 50E Type 1 certification, and aligns with ETIM EC000721 and ECLASS 27182003 for clear procurement and interoperability. By enabling front, rear or side attachment of trim panels, it supports flexible installation and future upgrades. In business terms, it reduces downtime, simplifies service routines, and improves overall cabinet longevity while complementing existing VX systems and enabling scalable, modular configurations.
Product Information
Extended Description

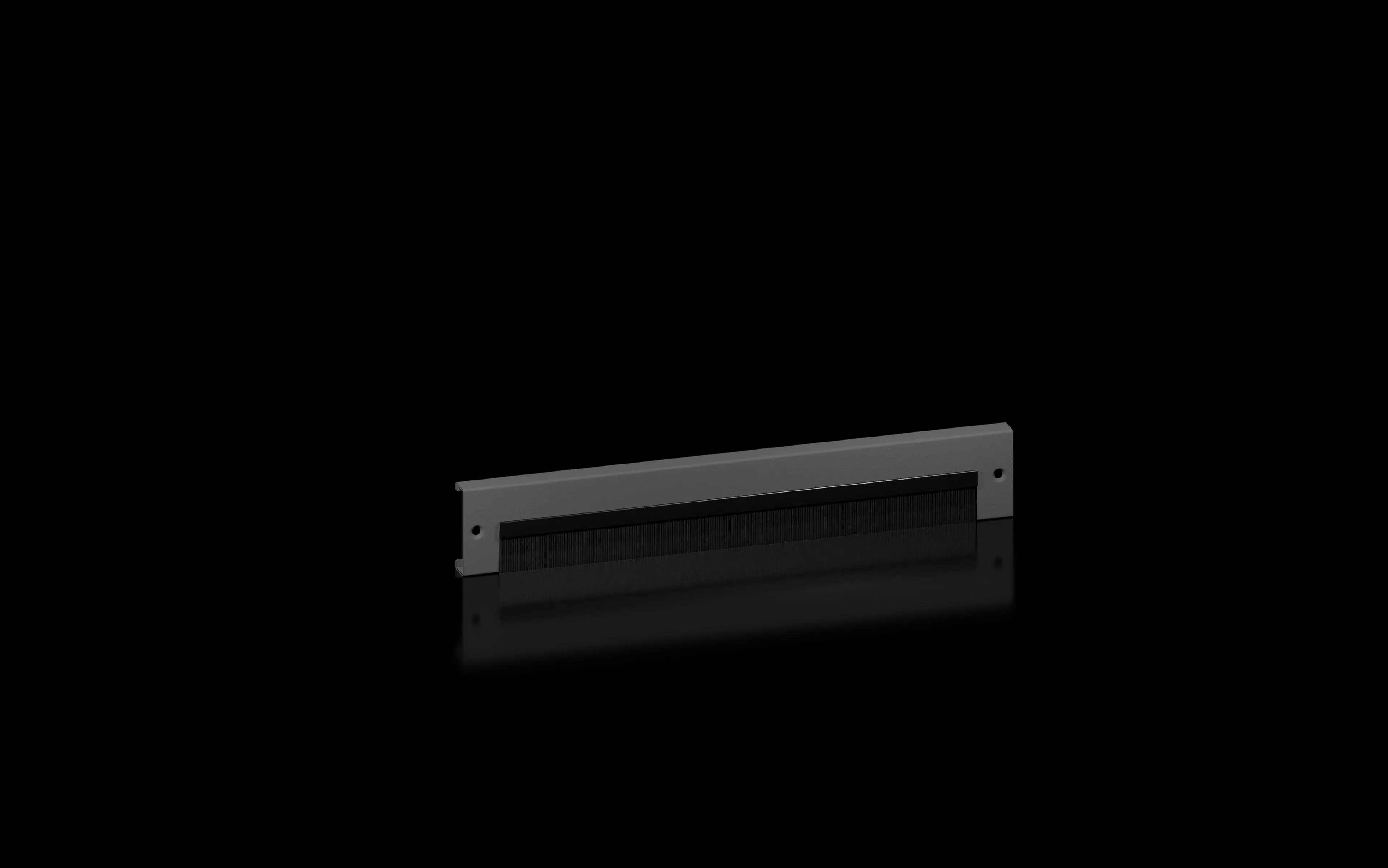

8660093 Rittal: VX base/plinth trim panel with brush strip, for width/depth: 800 mm
Article number
VX 8660.093
Design
with brush strip
Material
Base/plinth trims: Sheet steel | Brush strip: Plastic, self-extinguishing
Colour
RAL 9005
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | To fit width/depth: 800 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
Assembly instruction
For installation in the depth, the optional trim panel attachment is required.
Customs tariff number
73269098
EAN
4028177985483
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel with brush strip, for width/depth: 800 mm
Feature → Business Impact → Application: Brush strip design reduces dust ingress and improves sealing, leading to lower maintenance costs and longer enclosure life in harsh factory environments; ideal for high-dust environments and frequent cabling changes. Feature → Business Impact → Application: All-metal base/plinth trims (sheet steel) with a self-extinguishing plastic brush strip provide robust mechanical protection and fire safety compliance, enabling safe use in automated lines and high-traffic electrical rooms. Feature → Business Impact → Application: 100 mm trim height with 800 mm width/depth compatibility supports standardized DX- and VX-series installations, streamlining part commonality across multiple cabinets and reducing spare-part inventory. Feature → Business Impact → Application: UL 50E Type 1 rating and industry classifications (ETIM EC000721, ECLASS 27182003) simplify compliance, procurement, and integration with VX, VX IT, VX SE, TS, TP and CX enclosure families. Feature → Business Impact → Application: Optional trim-panel attachment allows front, rear or side mounting, enabling flexible depth installation and quick upgrades without full cabinet rework. Feature → Business Impact → Application: Pack size of 2 pieces reduces downtime during swap-outs and ensures ready availability for maintenance windows, improving lifecycle economics for large A/B cabinet deployments.
Get a Quick Quote for a Rittal 8660093
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660093?
Enquire Now
FAQs
The installation requires the optional trim panel attachment and must be performed in the depth of the enclosure. The kit is supplied as a two‑pack and supports front, rear or side mounting to accommodate different installation geometries.
The trim panel is designed to fit VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW and CX enclosure families, with a base/plinth width/depth of 800 mm to ensure uniform integration.
Base/plinth trims are sheet steel, while the brush strip is plastic and self-extinguishing. The panel height is 100 mm, colour is RAL 9005, and it holds a UL 50E Type 1 rating, with ETIM EC000721 and ECLASS 27182003 classifications for interoperability.
UL 50E Type 1 is specified for electrical safety in this component. CE conformity depends on the final assembled product and regional regulations; confirm with your compliance team for your specific installation and local requirements.
By reducing dust ingress and simplifying cable-entry management, the panel lowers maintenance frequency and downtime. The two-pack packaging supports rapid replacements and consistent service intervals across multiple VX cabinets, improving total cost of ownership in high-volume deployments.
