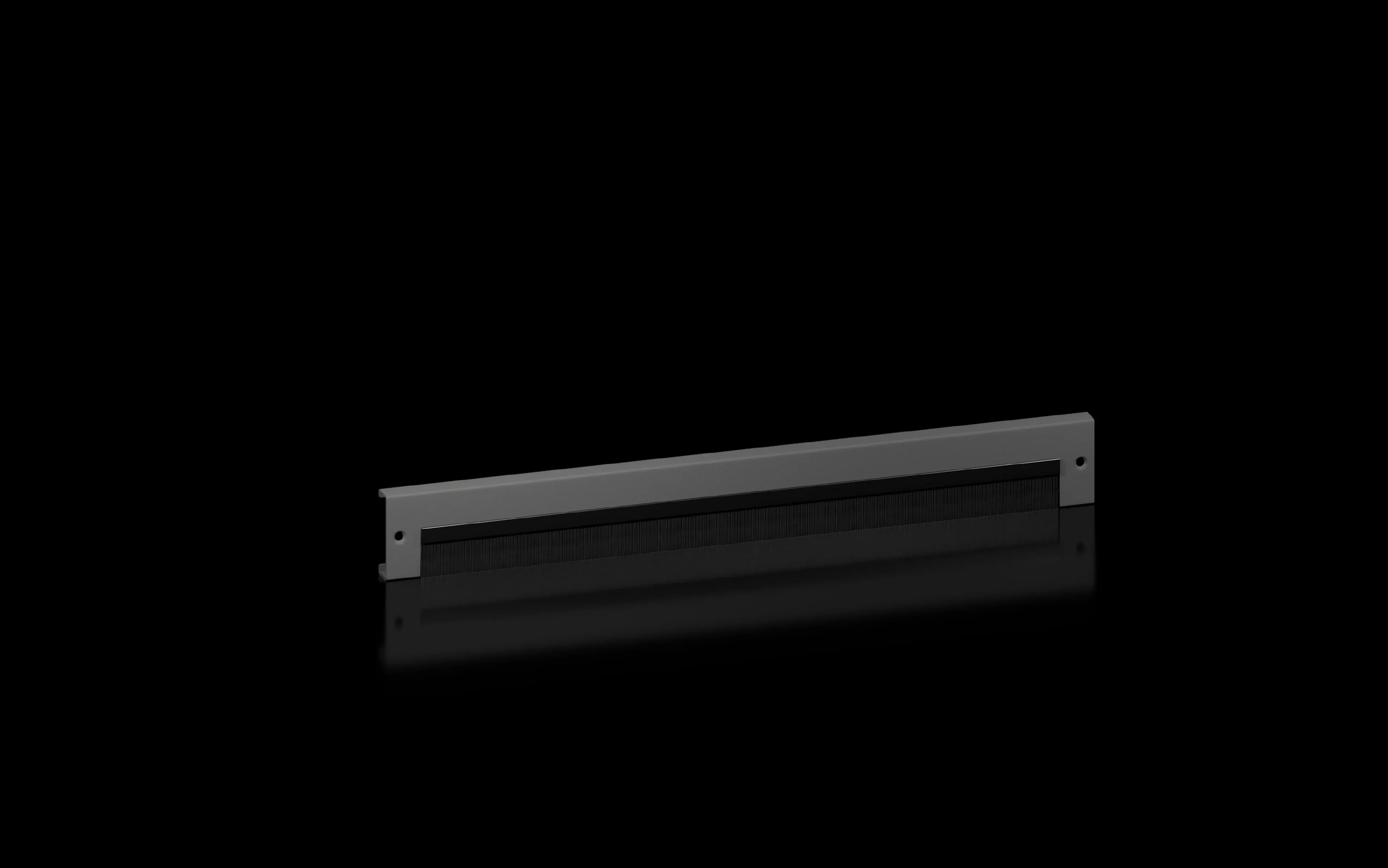

Rittal VX 8660.094 VX base/plinth trim panel - UL 50E Type 1
Part Number: 8660094
Manufacturer
Rittal
Part number
8660094
Alt Part Number
VX 8660.094
Quick Summary
Rittal VX 8660.094 VX base/plinth trim panel with brush strip is a practical solution for sealing cable entries in VX enclosures and delivering a clean, professional finish on power cabinets. The design addresses gaps and dust ingress that often occur with generic trims, offering a snug, secure fit even on crowded assembly lines. Certification-focused buyers will value its UL 50E Type 1 rating, along with ETIM EC000721 and ECLASS 8.0 alignment, which support reliable parts classification and procurement. For project teams, the trim panel integrates with the VX, VX IT, and VX SE families, helping streamline sourcing, reduce maintenance, and ensure consistent aesthetics across sites.
Product Information
Extended Description
8660094 Rittal: VX base/plinth trim panel with brush strip, for width/depth: 1000 mm
Article number
VX 8660.094
Design
with brush strip
Material
Base/plinth trims: Sheet steel | Brush strip: Plastic, self-extinguishing
Colour
RAL 9005
Dimensions
Height: 100 mm
To fit
Enclosure type: VX | VX IT | VX SE | TX CableNet | TS | TS IT | TP | PC | IW | CX | To fit width/depth: 1,000 mm
Type rating to UL 50E
Type 1
Packs of
2 pc(s).
To fit
for base/plinth system VX, sheet steel
Assembly instruction
For installation in the depth, the optional trim panel attachment is required.
Customs tariff number
73269098
EAN
4028177985476
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base/plinth trim panel with brush strip, for width/depth: 1000 mm
Feature: Brush-strip integrated design with sheet-steel base/plinth trims. Business Impact: Delivers a durable seal at cable entry points while maintaining a clean appearance, reducing dust ingress and improving enclosure integrity in harsh environments. Application: Ideal for sealing base openings on VX enclosures in manufacturing and automation facilities. Feature: Material and color specification. Business Impact: Self-extinguishing plastic brush strip plus steel trims provide flame retardance and long-term durability, lowering replacement frequency and maintenance costs. Application: Suitable for control panels requiring robust enclosure finishes with consistent color coding (RAL 9005). Feature: Precise dimensions and fit. Business Impact: Height of 100 mm and a 1,000 mm width/depth footprint standardize installations, reducing field adjustments and installation time. Application: Works across VX, VX IT, VX SE and related enclosure widths for scalable projects. Feature: Compliance and compatibility. Business Impact: UL 50E Type 1 rating plus ETIM EC000721 and ECLASS 8.0 alignment streamline procurement, doors open faster during audits, and ensure regulatory alignment. Application: Preferred in regulated environments and multi-site deployments. Feature: Packaging and installation guidance. Business Impact: Packs of two pieces simplify ordering, inventory, and project planning, supporting lean logistics and faster jobsite readiness. Application: Fits multi-unit cabinet builds and large-scale installations. Feature: Assembly flexibility. Business Impact: Optional trim panel attachment for depth installation enables front, rear, or side mounting, delivering configurability without extra SKUs. Application: Useful when configuring VX base/plinth systems across varied layouts.
Get a Quick Quote for a Rittal 8660094
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660094?
Enquire Now
FAQs
To install, ensure the enclosure width/depth is 1,000 mm and use the optional trim panel attachment when mounting in depth. Attach the base/plinth trims first, then fit the brush strip; verify alignment with VX, VX IT, or VX SE enclosures for a secure seal and clean finish.
Key specs include article VX 8660.094, design with brush strip, material: base/plinth trims in sheet steel and brush strip in self-extinguishing plastic, color RAL 9005, height 100 mm, and a 1,000 mm width/depth fit compatible with multiple VX variants. It carries UL 50E Type 1 protection.
Yes. It fits VX, VX IT, and VX SE enclosure families and supports other VX-based systems within a 1,000 mm width/depth range. It’s designed for base/plinth integration and works with the VX cabinet lineup to standardize cable entry finishing.
The product carries UL 50E Type 1 rating, and aligns with ETIM EC000721 and ECLASS 8.0 27182003. These standards support safe electrical cabinet design, reliable procurement classifications, and easier cross-site compliance during audits and maintenance.
The trim panel reduces dust ingress and provides a consistent, aesthetic finish, lowering maintenance costs and downtime. Its standardized 1,000 mm fit and two-piece packaging streamline ordering and inventory, delivering faster project completion and predictable lifecycle costs.
