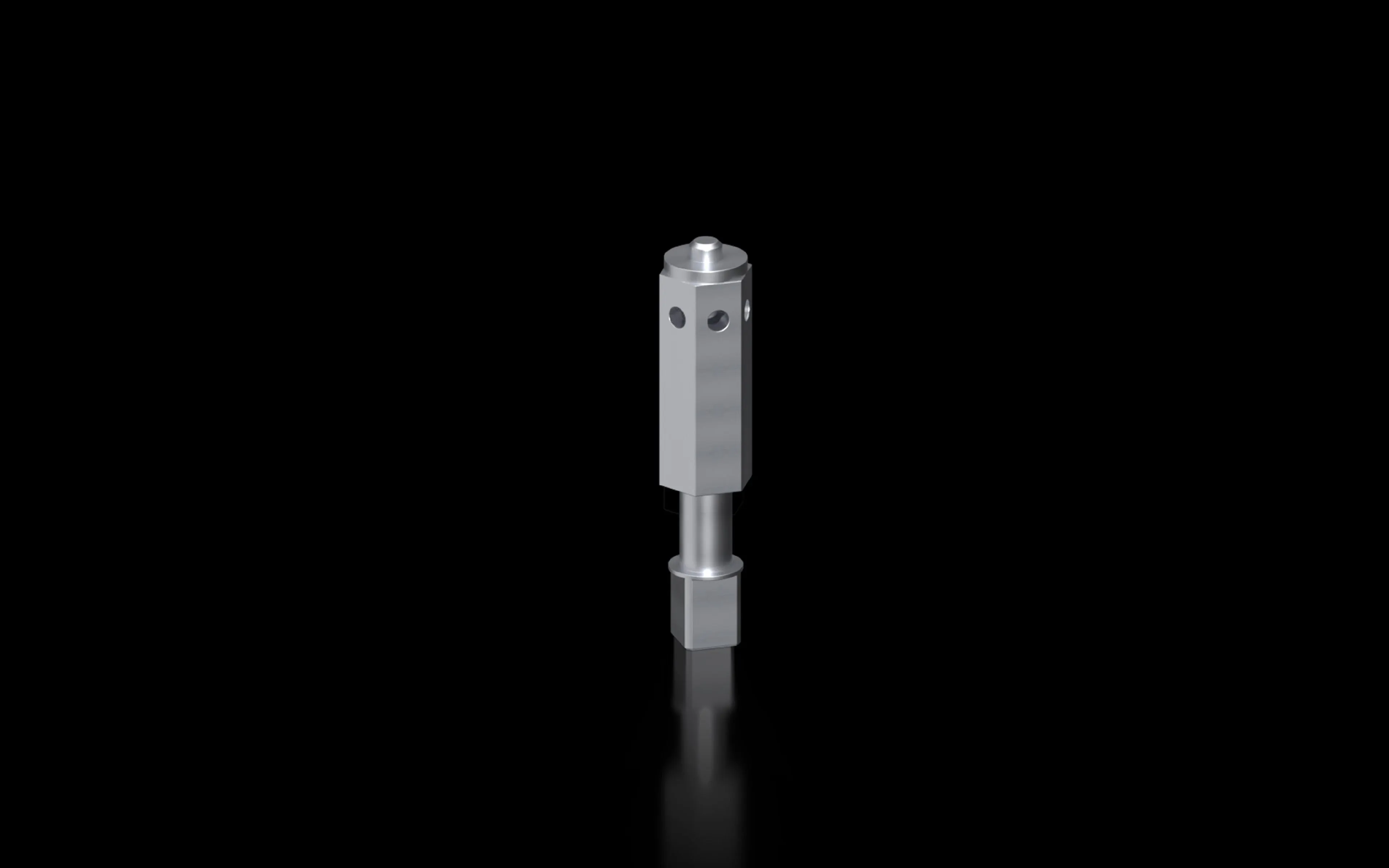

Rittal 8660120 VX levelling component - 2500 N
Part Number: 8660120
Quick Summary
Rittal VX levelling component is a practical solution for leveling cabinet bases on uneven floors in manufacturing and technical facilities. It replaces improvised shims with a purpose-built adjustment element that keeps enclosures aligned during installation and after maintenance. The part supports stable door operation, reliable cable routing, and consistent thermal behavior by preserving true base height. It complies with established industry classifications, including ETIM 8 EC000721 and ETIM 7.0 EC000721, as well as ECLASS 8.0 27182003, helping procurement teams reference the item accurately across systems. Designed specifically for the VX base/plinth system, it features 100 mm height, zinc-plated sheet steel, and a maximum admissible load of 2500 N per levelling component, delivering durable performance with minimal upkeep.
Product Information
Extended Description
8660120 Rittal: VX levelling component for base/plinth system VX, H: 100 mm
Article number
VX 8660.120
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Load capacity
Max. admissible load: 2500 N per levelling component
Note
For use in combinations of VX, VX IT, VX SE, TX , TS, TS IT, PC, IW, TP with the base/plinth system VX
Dimensions
Height: 100 mm
Weight/pack
0.612 kg
Packs of
4 pc(s).
To fit
for base/plinth system VX, sheet steel
Customs tariff number
73181900
EAN
4028177984813
ETIM 8
EC000721
ETIM 7.0
EC000721
ECLASS 8.0
27182003
Product description
VX levelling component for base/plinth system VX, H: 100 mm
Feature: Retrospective leveling up to 15 mm for uneven floors → Business Impact: Quick restoration of enclosure verticality reduces commissioning time and maintenance interruptions → Application: Installed through the base corner piece of VX base/plinth systems, enabling fast retrofit during site upgrades. Feature: 100 mm height provides ample clearance for cable trays, air intakes, and small fixtures → Business Impact: Improves airflow, simplifies cabinet wiring, and supports standardized layouts across multiple enclosures → Application: Fits standard VX base configurations, streamlining multi-unit installations. Feature: Max. admissible load 2500 N per levelling component → Business Impact: Supports heavier enclosures with reduced risk of tilt or settlement during operation, lowering risk of door misalignment → Application: Suitable for mid-to-heavy duty VX cabinets in demanding environments. Feature: Material is sheet steel with zinc-plated finish → Business Impact: Corrosion resistance and long service life in harsh environments → Application: Ensures reliable performance in industrial settings with moisture and dust exposure. Feature: Includes assembly parts and packs of 4 → Business Impact: Speeds up onsite assembly with fewer external parts to source, reducing install time and inventory complexity → Application: Ideal for batch installations and repeatable VX base/plinth deployments. Feature: Broad compatibility with VX, VX IT, VX SE, TX, TS, TS IT, PC, IW, TP when used with base VX → Business Impact: Simplifies procurement and stocking by covering multiple configurations → Application: Versatile component for mixed lines and upgrades in automation facilities.
Get a Quick Quote for a Rittal 8660120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660120?
Enquire Now
FAQs
Yes. VX 8660.120 is designed for the VX base/plinth system and supports VX, VX IT, VX SE, TX, TS, TS IT, PC, IW, and TP configurations when used with the VX base. It installs through the base corner piece and ships with assembly parts, enabling seamless retrofitting in mixed-line installations.
The 2500 N per component rating provides robust support for mid-to-heavy enclosures, reducing tilt risk and maintaining door alignment even under dynamic loading. This translates to fewer service calls, more reliable cable routing, and improved overall uptime in production environments.
Identify the required VX base location, align the levelling component with the base corner piece, and adjust height within the 15 mm range. The kit includes assembly parts for secure mounting; once installed, verify enclosure level and re-check door clearance and cable routing to confirm proper alignment.
VX 8660.120 aligns with industry classifications ETIM 8 EC000721 and ETIM 7.0 EC000721, and ECLASS 8.0 27182003. This supports consistent cross-referencing in procurement systems and ensures compatibility with standard VX-based bas systems used in automation environments.
The component reduces installation time, enhances enclosure stability, and lowers maintenance downtime by delivering reliable leveling on uneven floors. Its durable zinc-plated steel construction withstands harsh environments, while compatibility with multiple VX configurations supports scalable upgrades and improved total cost of ownership.
