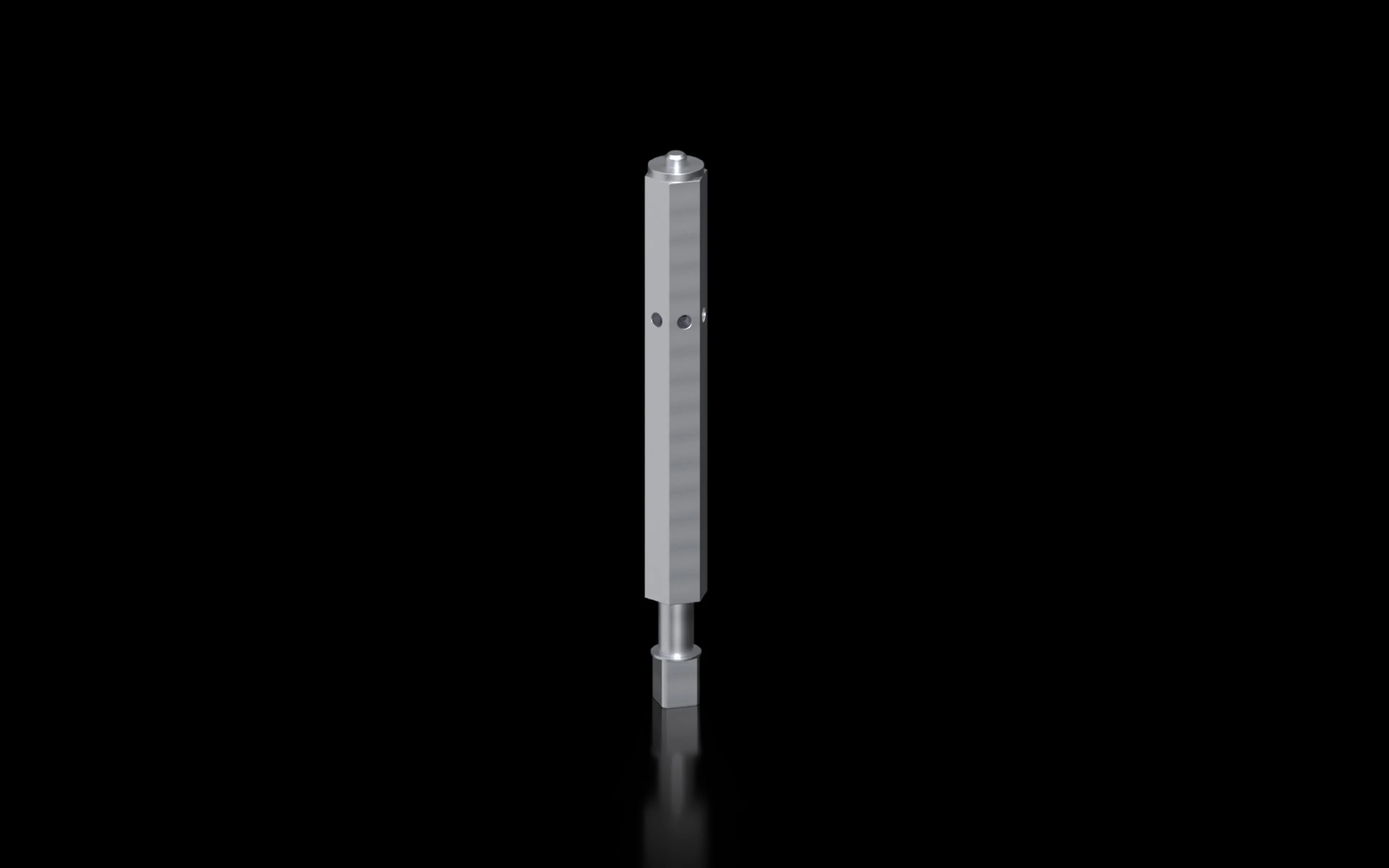

Rittal VX 8660.121 Levelling Component - 2500 N
Part Number: 8660121
Quick Summary
VX 8660.121 Levelling Component for base VX frames enables precise leveling on uneven floors. Installing equipment on irregular surfaces often leads to misalignment, wobble, and reduced accessibility. The product data references ETIM EC004043 and ECLASS 27182003 classifications, while explicit SIL, CE, or IP ratings are not specified. With a 200 mm height and a load capacity of up to 2500 N per levelling component, it is designed for VX, VX IT, VX SE, TX, TS, TS IT, PC, IW and TP configurations. The zinc-plated sheet steel construction delivers durable stability, and the included assembly parts streamline retrofitting. For procurement and maintenance planning, these levelling components offer predictable performance and lower lifecycle costs while enabling retrofits on existing VX cages and racks.
Product Information
Extended Description
8660121 Rittal: VX levelling component for base/plinth system VX, H: 200 mm
Article number
VX 8660.121
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Load capacity
Max. admissible load: 2500 N per levelling component
Note
For use in combinations of VX, VX IT, VX SE, TX , TS, TS IT, PC, IW, TP with the base/plinth system VX
Dimensions
Height:Â 200 mm
Weight/pack
1.56 kg
Packs of
4 pc(s).
To fit
for base/plinth system VX, sheet steel
Customs tariff number
73181900
EAN
4028177984806
ETIM 9
EC004043
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX levelling component for base/plinth system VX, H: 200 mm
Feature: 200 mm height levelling component crafted from sheet steel with zinc plating provides a robust base for cabinet and rack installations. Business impact: Improves stability on imperfect floors, reducing tilt and vibration that can compromise uptime and access. Application: Ideal for base VX frames and similar VX variants in manufacturing and data-center environments where precise alignment matters. Feature: Load capacity of 2500 N per levelling component with a pack of 4 pieces (1.56 kg per pack). Business impact: Enables safe mounting of heavy enclosures with predictable load distribution, lowering the risk of localized overloading. Application: Suitable for multi-rack installations in industrial control rooms and machine rooms. Feature: Zinc-plated surface resists corrosion in harsh environments, extending service life and reducing maintenance. Application: Industrial settings with humidity or cleaning regimes. Feature: Compatibility with VX, VX IT, VX SE, TX, TS, TS IT, PC, IW, TP base/plinth systems. Business impact: Simplifies procurement, standardizes interfaces, and accelerates retrofit projects. Application: OEM upgrades and plant-wide rollouts. Feature: Retrospective leveling up to 15 mm via the base/plinth corner piece. Business impact: Quick, non-disruptive corrections during commissioning or after relocation. Application: Site retrofits and continuous improvement programs.
Get a Quick Quote for a Rittal 8660121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8660121?
Enquire Now
FAQs
Begin by aligning the levelling component with the VX base corners and insert through the base/plinth corner piece. Ensure the 200 mm height is oriented to achieve the required leveling range up to 15 mm. Secure assembly parts as provided, then test by placing the enclosure and adjusting feet until the base is level within tolerance. This minimizes tilt and improves accessibility.
Each levelling component supports a maximum admissible load of 2500 N. The component allows retrospective leveling on uneven floors up to 15 mm, enabling precise leveling without disassembly. The data sheet specifies a 200 mm height and a 1.56 kg per-pack weight, with four pieces per pack for quick, scalable installations.
Yes. The component is designed for the VX base/plinth system and is specified for use with VX, VX IT, VX SE, as well as related configurations like TX, TS, TS IT, PC, IW, and TP. This compatibility simplifies procurement and accelerates retrofit projects across multiple enclosures and frames.
The product data lists ETIM classifications EC004043 and EC000721 and ECLASS 27182003. However, explicit SIL, CE, or IP ratings are not specified in the data. For compliance planning, consult the latest documentation or contact Rittal for confirmation of any additional regulatory certifications relevant to your region.
Expect improved stability and reduced downtime due to quicker, non-disruptive leveling during commissioning and site changes. The zinc-plated sheet steel withstands corrosive environments, lowering maintenance frequency. The four-pack design simplifies stocking and replacements, supporting faster serviceability and a lower total cost of ownership across multiple VX installations.
