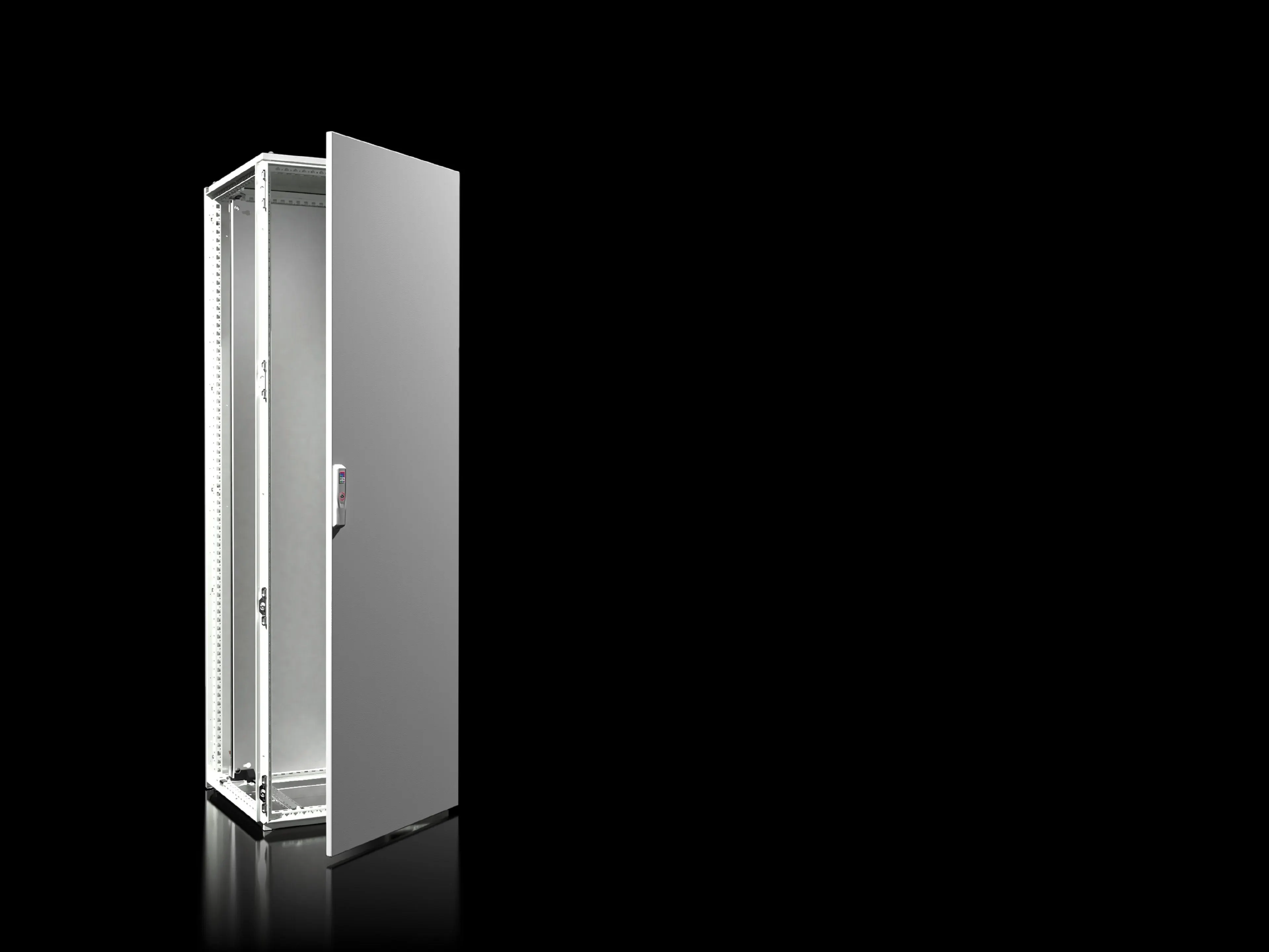

Rittal VX 8685.000 Enclosure - IP55
Part Number: 8685000
Manufacturer
Rittal
Part number
8685000
Alt Part Number
VX 8685.000
Quick Summary
Rittal VX 8685.000 Enclosure is a robust sheet-steel cabinet designed for efficient interior installation of control gear. It provides a reliable, high-quality housing for electrical assemblies in demanding industrial environments. This enclosure addresses common pain points such as installation time, access flexibility, and protection against dust and water exposure. With IP55 protection, IK10 impact resistance, UL 50E Type 1 compliance, and NEMA 1 compatibility, it meets both global and local standards. The design supports easy wiring, mounting plate alignment, and gland plate access, while the hinged door and left-right swing option simplify field orientation. For engineers and procurement, this enclosure balances rigidity, protection, and lifecycle cost advantage, making it suitable for panel builders and OEMs alike.
Product Information
Extended Description
8685000 Rittal: VX Baying enclosure system, WHD: 600x1800x500 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8685.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 600 mm | Height: 1,800 mm | Depth: 500 mm
Dimensions mounting plate (W x H)
499 mm x 1,696 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
90 kg
PCF per pack (cradle-to-gate)
221.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177813809
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 600x1800x500 mm, sheet steel, with mounting plate, single door at the front
Feature: WHD 600x1800x500 mm and a single front door maximize cabinet footprint efficiency. Benefit: Optimized space utilization and simplified wiring layouts reduce panel depth and installation time. Application: Control cabinets in machine builders and process automation where space is at a premium. Feature: Sheet steel construction with dipcoat-primed frame, powder-coated exterior on door/roof/rear panel, and zinc-plated gland plates. Benefit: Long service life, corrosion resistance, and reduced maintenance costs in harsh environments. Application: Outdoor or wash-down capable enclosures for industrial environments. Feature: IP55 protection, IK10 impact rating, UL 50E Type 1, and NEMA 1 compliance. Benefit: Robust protection against dust, moisture, and mechanical impact while meeting global electrical safety standards. Application: Safety-critical control housings in manufacturing and energy sectors. Feature: Door hinged on the right and swap-to-left capability with supplied mounting plate and two punched rails. Benefit: Flexible installation and field orientation without rework, speeding up commissioning. Application: Retrofit or greenfield projects requiring quick cabinet integration. Feature: Includes mounting plate (499x1696 mm) and 2 punched rails (18x39 mm) with 3 mm lock; total pack weight 90 kg. Benefit: Ready-to-install interior backbone with familiar rails for standardized components, reducing integration effort. Application: OEM panel builds and machine builders seeking predictable assembly processes. Feature: 2-drawer style rear panel and gland plate compatibility plus 1 door, multi-access design. Benefit: Streamlined cabling and test access while preserving enclosure integrity. Application: Industrial automation panels with frequent wiring changes or upgrades.
Get a Quick Quote for a Rittal 8685000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8685000?
Enquire Now
FAQs
The VX 8685.000 supports a right-hand door that can be swapped to the left, and includes a mounting plate (499x1696 mm) with two punched Rails (18x39 mm). This facilitates field orientation, simplifies mounting, and reduces rework during installation in tight cabinets or retrofit projects.
The VX 8685.000 offers IP55 protection, IK10 impact resistance, UL 50E Type 1, and NEMA 1 compliance, aligning with global safety and environmental standards for industrial enclosures and providing reliable protection in demanding environments.
Yes. It ships with a mounting plate and two punched rails 18x39 mm, enabling straightforward mounting of common DIN-rail components and accessories. The mounting plate size (499x1696 mm) supports typical control hardware layouts while maintaining ample clearance for cabling.
The enclosure design adheres to UL 50E Type 1 and NEMA 1 standards, while its zinc-plated gland plates and powder-coated exterior enhance durability. PCF data is provided (221.7 kg CO2 eq per cradle-to-gate), supporting sustainability reporting for B2B procurement and green manufacturing initiatives.
Investing in this enclosure yields lower lifecycle costs through extended service life, reduced maintenance due to robust protection (IP55/IK10), and faster commissioning thanks to ready-to-install interior hardware. Field flexibility (door orientation and modular mounting) also reduces downtime during upgrades or expansions.
