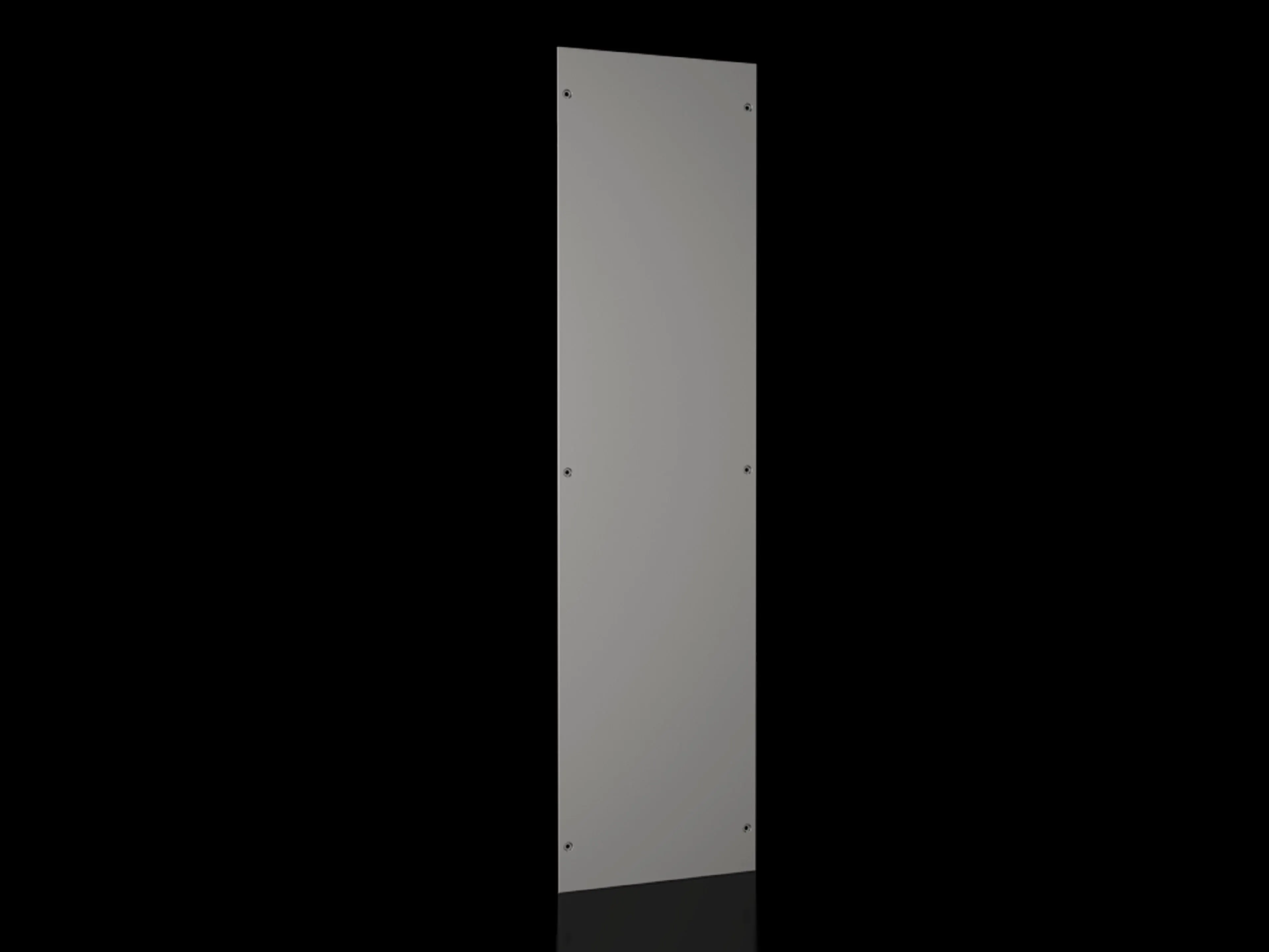

Rittal VX 8700.050 Side Panel for VX Enclosures - IP 55
Part Number: 8700050
Quick Summary
Rittal VX 8700.050 Side Panel is a stainless-steel enclosure accessory that seals VX cabinets for reliable IP-protected enclosures. Without a proper side panel, field installations risk dust ingress, time-consuming assembly, and increased downtime during maintenance. Certified IP 55 protection, UL 50E Type 1 suitability, and corrosion-resistant 1.4301 stainless steel ensure compliance and durability in harsh environments. Designed to fit VX enclosures 2000x600 mm, with clip-in side panel holders for fast assembly and reduced install costs, while maintaining a brushed 1.4301 finish.
Product Information
Extended Description
8700050 Rittal: VX Side panel, screw-fastened, for HD: 2000x600 mm, stainless steel, 1.4301
Article number
VX 8700.050
Benefits
Time-saving assembly thanks to clip-in side panel holder
Material
Stainless steel 1.4301 (AISI 304), 1.5 mm
Surface finish
Brushed, grain 400
Supply includes
Assembly parts
To fit
Enclosure type: VX | Height: = 2,000 mm | Depth: = 600 mm
IP protection category to IEC 60 529
IP 55
Type rating to UL 50E
Type 1
Basic material
Stainless steel
Packs of
2 pc(s).
Weight/pack
23.7 kg
EAN
4028177921474
ETIM 9
EC002524
ECLASS 8.0
27182101
Product description
VX Side panel, screw-fastened, for HD: 2000x600 mm, stainless steel, 1.4301
Time-saving clip-in side panel holder speeds field installation by snapping the panel into VX enclosure bodies without hunting for screws. This directly reduces on-site labor time and downtime, delivering faster project turnovers and lower labor costs. It’s ideally suited for mid to large VX systems where quick maintenance access matters. Stainless steel 1.4301 provides corrosion resistance in damp or dusty environments, with a 1.5 mm thickness giving structural rigidity without adding unnecessary weight. The brushed finish (grain 400) minimizes wear visibility and simplifies cleaning in harsh factories. The product is designed to fit VX enclosure types with height 2000 mm and depth 600 mm, aligning precisely to reduce sealing gaps and simplify retrofits thanks to the included assembly parts. With IP 55 protection and UL 50E Type 1 compatibility, it maintains enclosure integrity and electrical safety across challenging production lines. Packaging offers 2 pc per pack and weighs 23.7 kg per pack, with assembly parts included to streamline procurement and installation in VX system projects. Overall, the VX 8700.050 balances speed, durability, and compliance for reliable control-panel enclosures in industrial environments.
Get a Quick Quote for a Rittal 8700050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8700050?
Enquire Now
FAQs
The VX 8700.050 side panel is designed for VX enclosures with a 2000 mm height and 600 mm depth (HD: 2000x600). It ships as two panels per pack and includes assembly parts. The clip-in side panel holder enables quick retrofit or upgrade, reducing field installation time and risk of misalignment during sealing.
The panel uses stainless steel 1.4301 (AISI 304) with 1.5 mm thickness and a brushed grain 400 finish. It provides IP 55 protection per IEC 60529 and UL 50E Type 1 compatibility, ensuring dust and splash resistance and safe operation in industrial environments.
Yes. Its stainless steel construction and IP 55 rating protect control panels against dust and water exposure, while clip-in mounting allows swift removal and maintenance access. The 2-piece pack and included assembly parts simplify stocking and field service, supporting on-site readiness for repair or upgrade work.
This side panel aligns with UL 50E Type 1 and IP 55 requirements, and is associated with ETIM EC002524 and ECLASS 27182101 classifications. Using these codes in procurement systems helps ensure compatibility with VX enclosures and standard buying catalogs.
By leveraging clip-in side panel holders and included assembly parts, installation time is shortened and field labor costs reduced. The stainless steel 1.4301 material offers durable service life in demanding environments, lowering maintenance frequency and total cost of ownership for VX enclosure projects.
