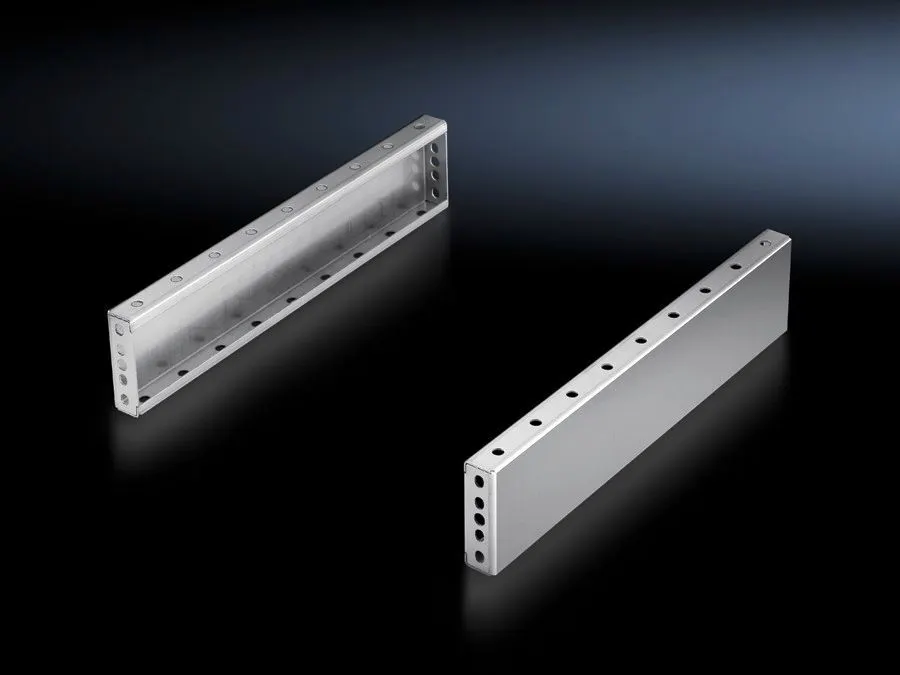

Rittal 8701040 TS Trim panel - AISI 304 stainless
Part Number: 8701040
Quick Summary
The TS Trim panel provides sturdy side trims to mount between base and plinth components in TS 400 mm enclosures. When baying multiple cabinets, installers often struggle with instability and misalignment; these trims offer precise alignment and quick install. Constructed from stainless steel 1.4301 (AISI 304) with a brushed grain finish, the parts are designed for long life and easy cleaning. ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications help procurement integrate this part into electrical cabinet catalogs. This combination of material quality, mechanical fit, and standardized classifications supports safer assembly, reduced downtime, and predictable maintenance, while ensuring compatibility with TS enclosures and base/plinth components.
Product Information
Extended Description
8701040 Rittal: TS Trim panel, sides, H: 100 mm, for W: 400 mm, Stainless steel 1.4301
Article number
TS 8701.040
Product description
For mounting between the base/plinth components. At 200 mm height, two 100 mm base/plinth trim panels may be used.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
2 base/plinth trim panels | Assembly parts
Assembly instruction
Base/plinth trim panels, side, 100 mm, may be installed rotated through 90° to stabilise bayed base/plinth components. The base/plinth baying bracket is required for this purpose
Dimensions
Height: 100 mm
To fit
Enclosure type: TS: = 400 mm
Packs of
2 pc(s).
Weight/pack
1.594 kg
Customs tariff number
94039910
EAN
4028177300088
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
TS Trim panel, sides, H: 100 mm, for W: 400 mm, Stainless steel 1.4301
Feature: Material and finish — Stainless steel 1.4301 (AISI 304) with brushed grain 400. Business Impact: Provides excellent corrosion resistance and easy cleaning in harsh industrial environments, reducing maintenance costs over the cabinet life. Application: Ideal for control panels and automation cabinets where durability and hygienic surfaces are important. Feature: Height and compatibility — 100 mm high, designed for TS 400 mm enclosures. Business Impact: Ensures precise fit and consistent bay alignment, improving assembly speed by eliminating trials. Application: Use in SCADA cabinets and PLC enclosures to maintain uniform baying. Feature: Pack contents — Supplied as 2 base/plinth trim panels with assembly parts. Business Impact: Reduces on-site procurement steps and downtime, accelerating installation schedules. Application: Rapidly retrofit existing TS frames with stable trims. Feature: Rotation capability — Panels may be rotated through 90° to stabilise bayed components. Business Impact: Improves stability for bayed configurations without additional brackets. Application: Essential when creating long, modular cabinet banks. Feature: Weight and handling — Weight per pack is 1.594 kg, supporting manageable installation. Business Impact: Simplifies lifting and positioning, lowering risk of damage or injury. Application: Field installs and retrofits where crews require efficient handling. Feature: Installation guidance — Includes assembly instructions for correct placement. Business Impact: Reduces misassembly, ensuring reliable performance from day one. Application: Cabinets with base/plinth baying brackets and modular bays.
Get a Quick Quote for a Rittal 8701040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8701040?
Enquire Now
FAQs
The TS 8701.040 is designed specifically for TS 400 mm enclosures, with a 100 mm height that aligns with the base/plinth components. It ships as a pair of trim panels, enabling straightforward installation in bayed cabinet configurations and ensuring consistent side coverage across the enclosure width.
This trim panel is manufactured from stainless steel 1.4301 (AISI 304) with a brushed grain finish. The material choice provides corrosion resistance, durability in industrial environments, and ease of cleaning, making it suitable for demanding cabinet applications.
The base/plinth trim panels can be installed rotated through 90° to stabilize bayed base/plinth components. This feature improves bay stability in long, modular cabinet banks and reduces the need for additional bracketing, speeding up installation and enhancing rigidity.
Each pack includes two base/plinth trim panels plus assembly parts. The weight per pack is 1.594 kg, facilitating manageable handling on site. Installers should note that a baying bracket may be required for stabilization when rotating panels, depending on the enclosure configuration.
The TS 8701.040 is classified under ETIM 9 EC000721 and ECLASS 8.0 27182003, which facilitates cataloging and procurement workflows. The product carries the GTIN 4028177300088 and EAN for reliable identification in BOMs and ERP systems, ensuring traceable sourcing within industrial cabinets.
