Rittal 8701050 TS Trim Panel - Stainless Steel 1.4301
Part Number: 8701050
Quick Summary
Rittal 8701050 TS Trim Panel provides durable 100 mm side trims for TS 500 mm enclosures. Installers often struggle with baying stability and misalignment when mounting base or plinth components. This CE-marked accessory is manufactured from corrosion‑resistant stainless steel 1.4301, with ETIM EC000721 and ECLASS 27182003 classifications. Designed for TS enclosures and compatible with base/plinth baying brackets, it accelerates installation and improves enclosure integrity for reliable factory setups. By standardizing trim panel fitting, it supports consistent baying across multiple cabinets and helps meet maintenance schedules.
Product Information
Extended Description

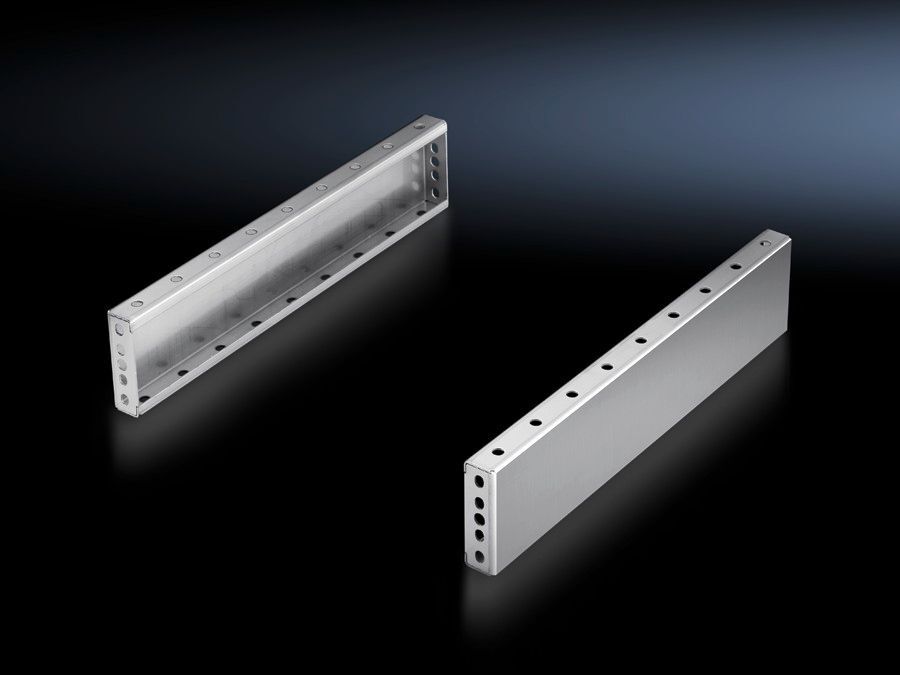

8701050 Rittal: TS Trim panel, sides, H: 100 mm, for W: 500 mm, Stainless steel 1.4301
Article number
TS 8701.050
Product description
For mounting between the base/plinth components. At 200 mm height, two 100 mm base/plinth trim panels may be used.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
2 base/plinth trim panels | Assembly parts
Assembly instruction
Base/plinth trim panels, side, 100 mm, may be installed rotated through 90° to stabilise bayed base/plinth components. The base/plinth baying bracket is required for this purpose
Dimensions
Height: 100 mm
To fit
Enclosure type: TS: = 500 mm
Packs of
2 pc(s).
Weight/pack
2.202 kg
Customs tariff number
94039910
EAN
4028177300071
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
TS Trim panel, sides, H: 100 mm, for W: 500 mm, Stainless steel 1.4301
Feature: Stainless steel construction with a brushed finish using 1.4301 (AISI 304) material provides robust corrosion resistance for harsh industrial environments, extending service life and reducing replacement costs. Application: Ideal for factory floors and switchgear rooms where long-term durability and clean aesthetics matter. Business impact: Lower total cost of ownership through reduced maintenance and fewer part replacements. Feature: Height of 100 mm and width compatibility for TS 500 mm enclosures, supplied as a two‑pack with assembly parts. Application: Enables uniform baying between base/plinth components. Business impact: Faster installation, consistent appearance, and minimized field adjustments. Feature: Installation flexibility with 90° rotation option to stabilise bayed components when used with a baying bracket. Application: Adapts to layout constraints and tight spaces. Business impact: Shorter project timelines and reduced on-site rework. Feature: Pack weight and logistics—2.202 kg per pack with two panels and assembly parts included. Application: Easy handling and streamlined shipping. Business impact: Lower logistics costs and simpler stock management. Feature: Compliance and ecosystem fit—ETIM EC000721 and ECLASS 27182003 alignment for TS 500 mm enclosures. Application: Supports procurement accuracy and cross-system compatibility. Business impact: Improves sourcing efficiency and reduces mismatch risk.
Get a Quick Quote for a Rittal 8701050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8701050?
Enquire Now
FAQs
The 8701050 TS Trim Panel is specifically designed for TS 500 mm enclosures and is supplied as a two-panel pack with assembly parts to integrate seamlessly with base/plinth components. Its 100 mm height aligns with TS standards, and it works with baying brackets to ensure stable, uniform gaps between cabinets, speeding up multi-cabinet installations.
The trim panels are made from stainless steel 1.4301 (AISI 304) with a brushed grain 400 finish. This combination provides strong corrosion resistance for humid or dusty industrial environments, helping to preserve cabinet aesthetics and structural integrity over extended service life, even in challenging factory settings.
Yes, base/plinth trim panels may be installed rotated through 90° to stabilise bayed base/plinth components. A baying bracket is required to achieve this orientation and ensure proper alignment, enabling flexible layouts and reliable assembly across multiple cabinets.
The TS 8701050 trim panel is CE marked for compliance. It is also classified under ETIM EC000721 and ECLASS 27182003, which supports accurate procurement data, cross-system interoperability, and streamlined integration within existing automation and enclosure ecosystems.
By stabilising bayed base/plinth components and enabling faster, error-free installation, the trim panel reduces on-site labor and rework. Its corrosion-resistant stainless steel construction minimizes downtime due to maintenance, while the two-pack per order simplifies inventory planning and long-term cost management.
