Rittal 8701060 TS Trim Panel - Stainless steel 1.4301
Part Number: 8701060
Quick Summary
Rittal 8701060 TS Trim Panel is used to bridge base/plinth sections in 600 mm TS enclosures, ensuring stable baying and a clean enclosure perimeter. In practice, installers often struggle with misalignment and vibration when baying multiple cabinets without a proper trim panel. While the data does not specify CE, SIL, or IP ratings, it notes ETIM EC000721 and ECLASS 27182003 classifications, and it uses corrosion-resistant stainless steel 1.4301 (AISI 304) with a brushed finish. This combination supports long-term durability in harsh environments and simplifies procurement with common industry classifications. By standardizing the fit and finish, this part reduces installation time and supports predictable maintenance, delivering measurable value for engineered enclosures and assembly workflows.
Product Information
Extended Description

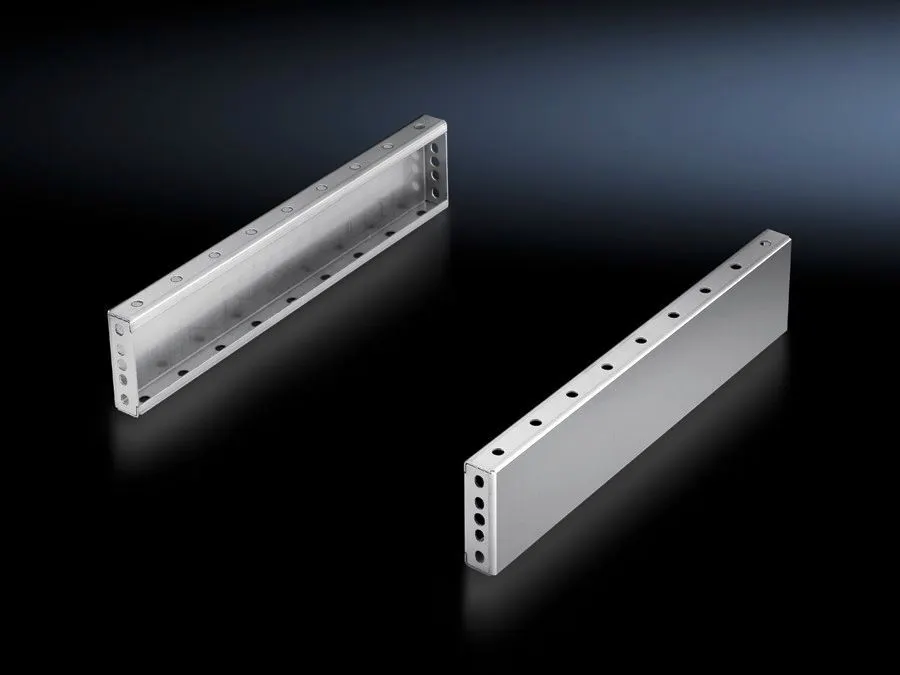

8701060 Rittal: TS Trim panel, sides, H: 100 mm, for W: 600 mm, Stainless steel 1.4301
Article number
TS 8701.060
Product description
For mounting between the base/plinth components. At 200 mm height, two 100 mm base/plinth trim panels may be used.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
2 base/plinth trim panels | Assembly parts
Assembly instruction
Base/plinth trim panels, side, 100 mm, may be installed rotated through 90° to stabilise bayed base/plinth components. The base/plinth baying bracket is required for this purpose
Dimensions
Height: 100 mm
To fit
Enclosure type: TS: = 600 mm
Packs of
2 pc(s).
Weight/pack
2.772 kg
Customs tariff number
94039910
EAN
4028177300064
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
TS Trim panel, sides, H: 100 mm, for W: 600 mm, Stainless steel 1.4301
Feature → Business Impact → Application: Stainless steel 1.4301 (AISI 304) with brushed finish provides excellent corrosion resistance and a durable surface that withstands industrial cleaning regimes. This reduces replacement costs and maintenance downtime in harsh environments, making it ideal for factory floors and data center cabinets. Feature → Business Impact → Application: Height of 100 mm and compatibility with TS 600 mm enclosures ensures precise baying between base/plinth components, improving alignment and reducing rework during deployment of multi-cabinet systems across automation lines. Feature → Business Impact → Application: Pack of 2 base/plinth trim panels with assembly parts offers a ready-to-install kit that shortens install times and minimizes missing part risk, boosting project throughput in panel shop operations and on-site installations. Feature → Business Impact → Application: Rotatable 90° installation option and required baying bracket enhance stability when baying adjacent cabinets, enabling flexible layouts in tight automation cells and minimizing vibration. Feature → Business Impact → Application: ETIM EC000721 and ECLASS 27182003 classifications streamline procurement and data accuracy for engineers, buyers, and maintenance teams, supporting compliant sourcing and accurate BOM management. Feature → Business Impact → Application: Weight per pack 2.772 kg and 2 pieces per pack provide predictable handling and shipping costs, improving logistics planning for large enclosure deployments in manufacturing facilities.
Get a Quick Quote for a Rittal 8701060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8701060?
Enquire Now
FAQs
The 8701060 is designed for TS 600 mm enclosure widths and mounts between base and plinth components. Each pack includes two trim panels and assembly parts, and panels can be oriented 90° to stabilise bayed components. A baying bracket is recommended for optimal stability when forming multiple, adjacent enclosures.
The trim panels are made from stainless steel 1.4301 (AISI 304) with a brushed surface finish (grain 400). This combination offers corrosion resistance and a professional appearance suitable for industrial environments and routine cleaning.
Each pack contains two base/plinth trim panels plus assembly parts. Installation involves placing the 100 mm high panels between base/plinth components, with the option to rotate panels 90° to stabilise bayed units. For best results, use the recommended base/plinth baying bracket and follow the installation instructions included with the product.
The panels are 100 mm in height and are designed to fit TS 600 mm enclosures. Each pack weighs 2.772 kg, and the pack contains two panels, facilitating straightforward handling and installation in typical enclosure projects.
The provided data lists ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications, which help with data consistency and procurement workflows. The data does not specify CE, SIL, or IP ratings for this specific part, so verify regulatory requirements with the supplier for your application.
