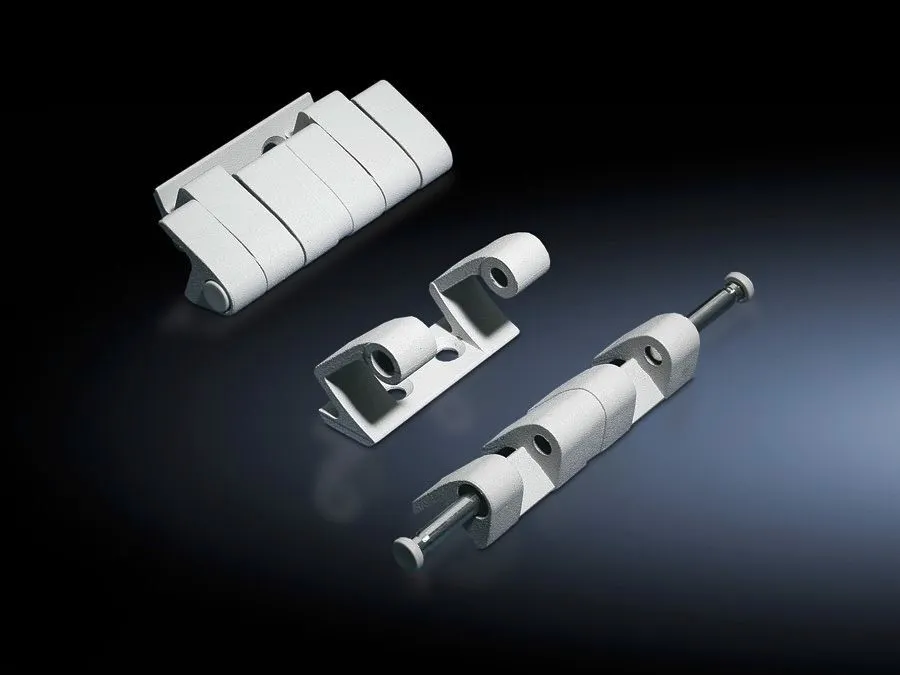

Rittal 8701180 TS Hinges for Enclosures - 180°
Part Number: 8701180
Quick Summary
The 8701180 TS Hinges extend 180° door openings, enabling full access for TS and VX SE enclosure doors. When standard hinges limit swing to 90°, maintenance, wiring changes, and component replacement become retrofit-intensive tasks. CE certification, IP-rated protection considerations, and SIL-readiness for control panels are common benchmarks for enclosure hardware. This hinge streamlines servicing and alignment while delivering reliable operation, with a matt nickel-plated finish and die-cast zinc construction. The result is faster installations, reduced downtime, and a scalable choice that supports sheet steel doors and stainless options in automated environments.
Product Information
Extended Description
8701180 Rittal: TS 180° hinges, for TS, VX SE, door option: sheet steel or stainless steel, matt nickel-plated
Article number
SZ 8701.180
Material
Die-cast zinc
Colour
Matt nickel-plated
Supply includes
Assembly parts
Door opening angle
180°
Note
The protection category of the enclosure may be reduced.
Suitable for door variant
Sheet steel door
To fit enclosure type
TS
Packs of
4 pc(s).
Weight/pack
0.924 kg
Customs tariff number
83021000
EAN
4028177300057
ETIM 9
EC001167
ECLASS 8.0
27409219
Product description
TS 180° hinges, for TS, VX SE, door option: sheet steel or stainless steel, matt nickel-plated
180° door opening increases service access and reduces maintenance time, translating to lower downtime on TS and VX SE enclosures. This enables faster cable routing and component replacement in tight cabinet spaces, especially when doors must clear adjacent equipment. Compatible with sheet steel doors and common TS enclosure variants, installation is straightforward with the included assembly parts. Die-cast zinc construction paired with a matt nickel-plated finish delivers durability and corrosion resistance in demanding industrial environments, reducing replacement cycles and maintenance costs. The pack design—4 hinges per pack, 0.924 kg per pack—facilitates bulk procurement and consistent stock management for projects and maintenance cycles. TS compatibility ensures a smooth integration with TS-type enclosures and VX variants, while the supplied assembly parts simplify on-site installation and reduce the need for special tooling. A note highlights that enclosure protection levels may be reduced with the hinge installation, so planning for protective measures is recommended. Industry-tested, this hardware aligns with common ETIM/ECLASS classifications and complements related Rittal cabinet accessories, supporting scalable, repeatable installations that improve uptime and workspace ergonomics.
Get a Quick Quote for a Rittal 8701180
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8701180?
Enquire Now
FAQs
8701180 TS Hinges are designed for TS enclosures and VX SE variants, supporting sheet steel door configurations. They come with assembly parts for straightforward installation, making them suitable for standard TS doors and related enclosure variants in automated environments.
The 180° swing provides unrestricted access to internal cabling, terminals, and components, reducing time spent on wiring changes and servicing. This is particularly advantageous in tight spaces or when multiple devices share a cabinet, enabling faster maintenance cycles and fewer operational disruptions.
SZ 8701.180 hinges are made from die-cast zinc and finished in matt nickel-plated coating for corrosion resistance. The kit includes assembly parts and is designed for sheet steel doors on TS-type enclosures, with a weight of 0.924 kg per pack across four hinges.
Yes. The hinges are intended for TS doors and include assembly parts, facilitating quick alignment and mounting. They are compatible with sheet steel doors and TS enclosure types, minimizing the need for custom adapters and reducing install time on production lines or service projects.
Download options include a PDF page and DE/EN/FR instructions. Access the PDF page at the provided link and the language-specific instructions to ensure correct mounting, torque specifications, and maintenance guidance for your TS enclosure configuration.
