Rittal TS 8701.800 Base/Plinth Components - Stainless steel 1.4301
Part Number: 8701800
Quick Summary
Rittal TS 8701.800 base/plinth components deliver sturdy base support for TS 800 mm enclosures. These components prevent misalignment, reduce corrosion risk, and mitigate vibration that can affect equipment performance in demanding environments. The datasheet lists ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications; explicit CE, IP, or SIL ratings are not shown here. With two trim panels front/rear and mounting hardware included, installation is straightforward, enabling faster commissioning and predictable service life for industrial cabinets. This combination supports standardized TS 800 mm compatibility, traceable stainless steel material, and reliable long-term performance for harsh industrial settings.
Product Information
Extended Description

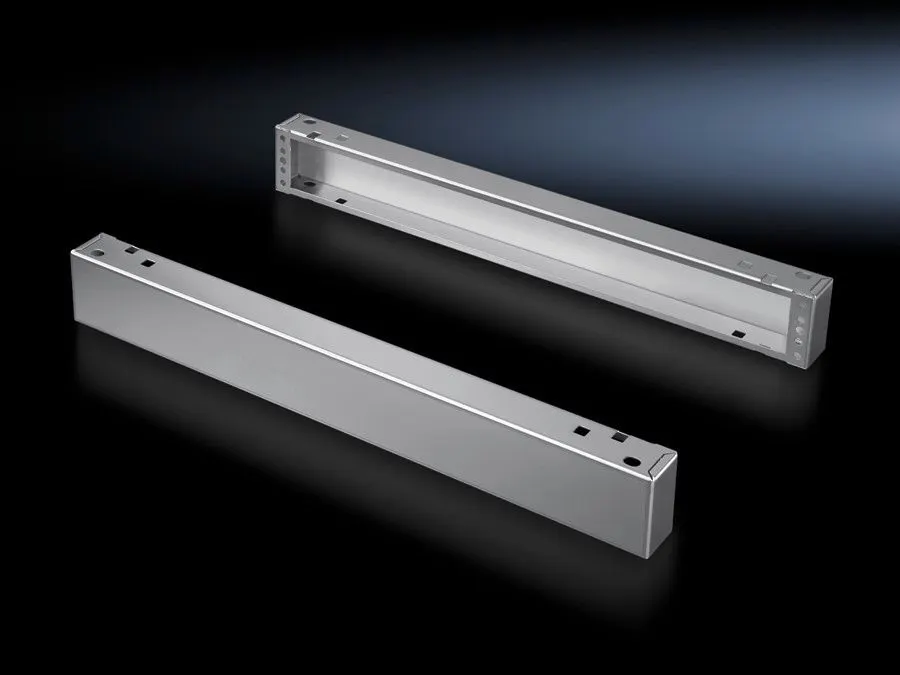

8701800 Rittal: TS Base/plinth component, front and rear, H: 100 mm, for W: 800 mm, Stainless steel 1.4301
Article number
TS 8701.800
Material
Stainless steel 1.4301 (AISIÂ 304)
Surface finish
Brushed, grain 400
Supply includes
2 trim panels front/rear | Assembly parts for mounting on the enclosure
Dimensions
Height:Â 100 mm
To fit
Enclosure type:Â TS:Â = 800 mm
Packs of
2 pc(s).
Weight/pack
7.224 kg
Customs tariff number
94039910
EAN
4028177300026
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
TS Base/plinth component, front and rear, H: 100 mm, for W: 800 mm, Stainless steel 1.4301
Feature: Stainless steel 1.4301 (AISI 304) material with brushed grain 400 finish. Business Impact: Provides excellent corrosion resistance and robust mechanical strength, extending service life in damp, washdown, or corrosive environments. Application: Ideal for outdoor or manufacturing facilities where enclosure bases face heavy use. Feature: Height 100 mm and width designed for TS 800 mm enclosures. Business Impact: Ensures precise clearance and alignment, simplifying start-up and reducing installation errors. Application: Mounting bases for TS series cabinets in standard 800 mm widths. Feature: Supplied with 2 trim panels front/rear and assembly parts. Business Impact: Speeds up on-site assembly, minimizes vendor handling, and reduces project lead times. Application: Quick retrofit or new builds requiring integrated base support. Feature: Surface finish Brushed, grain 400. Business Impact: Easier cleaning and maintenance in regulated environments, improving hygiene and uptime. Application: Cleanroom-adjacent or dust-prone facilities needing cleanable bases. Feature: Packs of 2, weight per pack 7.224 kg. Business Impact: Efficient packaging and predictable shipping/install planning, aiding procurement and inventory control. Application: Logistics-focused procurement for multi-unit rollouts in plants and facilities. Feature: Supply includes front/rear trim panels and mounting parts. Business Impact: Reduces the number of separate parts to source, lowering total cost of ownership and simplifying installation. Application: New builds or upgrades where fast, repeatable assembly is valued.
Get a Quick Quote for a Rittal 8701800
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8701800?
Enquire Now
FAQs
Begin by aligning the base against the enclosure feet or mounting interface, then attach the front and rear trim panels using the included assembly parts. Ensure all fasteners are tightened to spec to prevent movement. The two trim panels and mounting hardware are designed to speed up installation and reduce field adjustments, improving commissioning times.
The base/plinth is made from stainless steel 1.4301 (AISI 304) with a brushed grain 400 finish. This combination delivers strong corrosion resistance suitable for damp or washdown environments and enhances durability in industrial settings, contributing to lower maintenance needs and longer intervals between replacements.
TS 8701.800 is specified for TS enclosures with an 800 mm width. While it may physically fit adjacent components in some configurations, it is designed for TS 800 mm cabinets, ensuring proper fit, mounting integrity, and standardized installation. For non-TS 800 mm sizes, select the appropriate base/plinth variant from the TS family.
The provided data lists ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications. explicit CE, IP, or SIL certifications are not shown in the dataset. For regulatory compliance in your region, verify with the supplier or consult the official datasheet before deployment in regulated environments.
The product is supplied in packs of 2 with a weight of 7.224 kg per pack. This packaging supports straightforward logistics planning, helps with multi-unit rollouts, and aligns with standard warehouse handling procedures for enclosure accessories.
