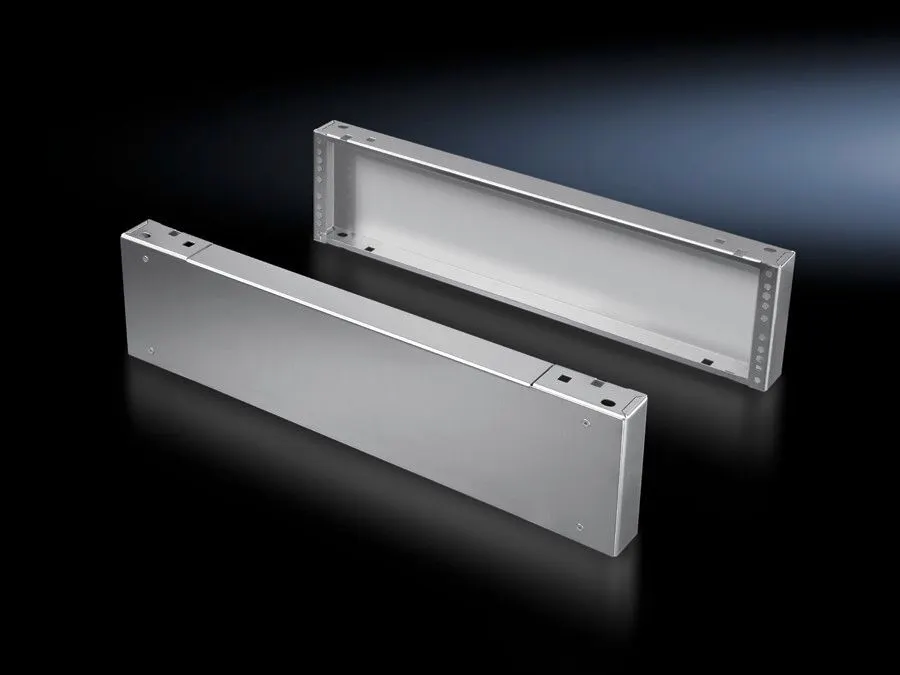

Rittal 8702000 Base/Plinth Component - Stainless 1.4301
Part Number: 8702000
Quick Summary
Rittal 8702000 Base/plinth component provides a robust pedestal for TS enclosures, ensuring stable mounting in industrial control panels. Engineers often struggle with vibration, corrosion risk, and misalignment when mounting TS enclosures on raised bases. The product aligns with ETIM EC000721 and ECLASS 27182003 classifications, supporting reliable data exchange and cross-system compatibility. Built from stainless steel 1.4301 with a brushed finish, it complements TS base accessories and mounting parts, while delivering corrosion resistance and long service life. This solution improves installation efficiency and procurement consistency for industrial automation projects, combining mechanical reliability with streamlined integration for rugged environments.
Product Information
Extended Description
8702000 Rittal: TS Base/plinth component, front and rear, H: 200 mm, for W: 1000 mm, Stainless steel 1.4301
Article number
TS 8702.000
Material
Stainless steel 1.4301 (AISIÂ 304)
Surface finish
Brushed, grain 400
Supply includes
1 trim panel front/rear | 2 corner pieces with removable trim panel | Assembly parts for mounting on the enclosure
Dimensions
Height:Â 200 mm
To fit
Enclosure type:Â TS:Â = 1,000 mm
Packs of
2 pc(s).
Weight/pack
12.74 kg
Customs tariff number
94039910
EAN
4028177666320
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
TS Base/plinth component, front and rear, H: 200 mm, for W: 1000 mm, Stainless steel 1.4301
The TS 8702000 base/plinth component delivers a corrosion-resistant pedestal designed for TS enclosures. This feature reduces maintenance needs by protecting the enclosure foundation from wear in harsh environments, delivering measurable life-cycle cost savings. Benefit: Improved stability and alignment of large enclosures, enabling faster commissioning and reduced field adjustments during installation. Application: Ideal for factory automation and process environments using TS 1000 mm wide frames, where precise mounting reduces downtime and vibration-related wear. Feature: Stainless steel 1.4301 with brushed grain 400 finish provides durable, easy-to-clean surfaces. Benefit: Enhanced longevity and low maintenance in humid or dusty plants, supporting regulatory compliance and cleaner asset management. Application: Suitable across automotive, food & beverage, and general industrial automation where robust base components are required. Feature: Supplied with front/rear trim panel, two corner pieces with removable trim, and mounting assembly parts. Benefit: Streamlined installation and predictable fit, reducing procurement lead times. Application: Quick integration with TS enclosure families and accessories, lowering total cost of ownership.
Get a Quick Quote for a Rittal 8702000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8702000?
Enquire Now
FAQs
The TS 8702000 base/plinth is designed to sit under TS 1000 mm enclosures, providing a stable 200 mm high pedestal. It ships as a paired set with front/rear trim panels, corner pieces, and mounting components, so installation is straightforward on standard TS frames. It supports precise alignment and helps protect enclosure bases from corrosion and wear.
Install on a clean, level TS frame by first fixing the corner pieces with the removable trim panels, then attach the front and rear trim panels using the supplied assembly parts. Align to the enclosure flanges, torque hardware evenly, and check that the 200 mm height sits level across the base. The process minimizes field adjustments.
Yes. The base/plinth uses stainless steel 1.4301 (AISI 304) with a brushed grain 400 finish, offering excellent corrosion resistance and durability in dusty, humid, or washdown environments. Its robust construction reduces maintenance needs and protects enclosure foundations from wear. For best results, pair with appropriate enclosure seals and mounting hardware.
The TS 8702000 aligns with ETIM 9 EC000721 and ECLASS 8.0 27182003, ensuring consistent data exchange and catalog interoperability across procurement and engineering systems. By following these classifications, you can reliably match compatible accessories, trim panels, and mounting components within Rittal TS solutions, reducing selection errors and integration time.
Investing in the TS 8702000 base/plinth reduces installation time and extends enclosure life, lowering maintenance costs over the system's lifetime. The stainless steel construction resists corrosion, lowering parts replacement frequency even in harsh environments. Quick mounting with included components minimizes downtime during commissioning, while improved stability reduces vibration-related wear and loosening of internal fittings.
