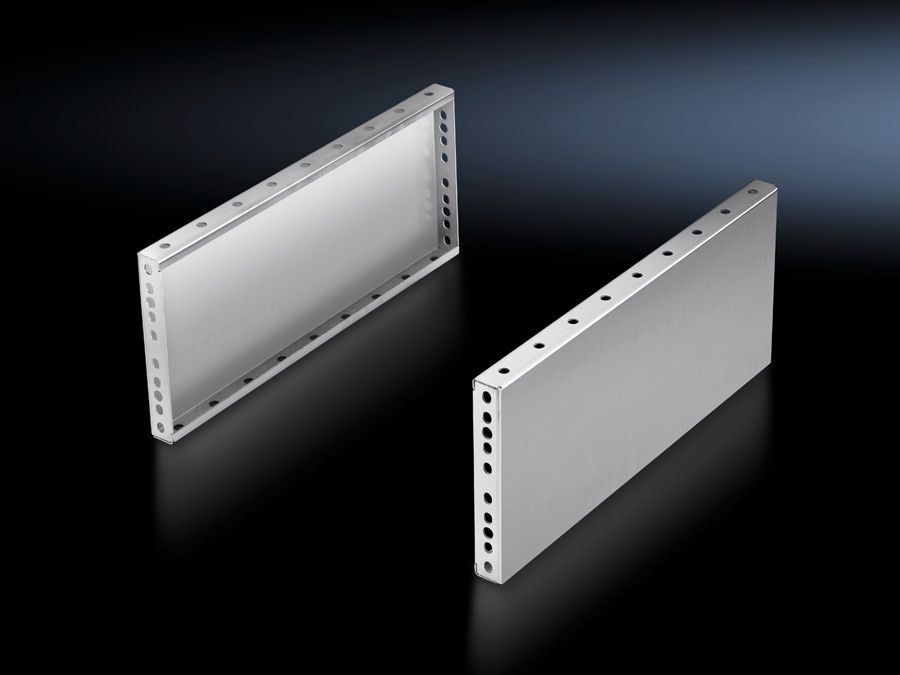

Rittal 8702040 TS Trim Panel - Stainless steel 1.4301
Part Number: 8702040
Quick Summary
TS Trim Panel 8702040 from Rittal provides side panels for mounting between base and plinth components in 400 mm enclosures. This design addresses the common challenge of stable baying and corrosion resistance in compact TS enclosures. The panel is aligned with ETIM EC000721 and ECLASS 27182003 to ensure seamless procurement and integration. Designed for TS 400 mm bays, it supports efficient installation and long-term corrosion resistance, boosting OEM uptime and serviceability. In practice, the panels reduce maintenance cycles by resisting moisture ingress and simplifying base/plinth alignment during assembly. With 2-pack quantities and a clear assembly guide, procurement teams gain predictability, lower waste, and faster project turnover.
Product Information
Extended Description
8702040 Rittal: TS Trim panel, sides, H: 200 mm, for W: 400 mm, Stainless steel 1.4301
Article number
TS 8702.040
Product description
For mounting between the base/plinth components. At 200 mm height, two 100 mm base/plinth trims may be used.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
2 base/plinth trim panels | Assembly parts
Assembly instruction
Base/plinth trim panels, side, 100 mm, may be installed rotated through 90° to stabilise bayed base/plinth components. The base/plinth baying bracket is required for this purpose
Dimensions
Height: 200 mm
To fit
Enclosure type: TS: = 400 mm
Packs of
2 pc(s).
Weight/pack
2.686 kg
Customs tariff number
94039910
EAN
4028177300019
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
TS Trim panel, sides, H: 200 mm, for W: 400 mm, Stainless steel 1.4301
Feature: TS Trim Panel sides are 200 mm high and designed for W 400 mm TS enclosures. Impact: This sizing provides stable baying, reducing the risk of misalignment when using two 100 mm base/plinth trims. Application: Ideal for modular TS 400 mm enclosures in manufacturing lines. Feature: Material is stainless steel 1.4301 (AISI 304) with a brushed surface finish. Impact: Delivers excellent corrosion resistance in harsh environments, lowering maintenance and replacement costs. Application: Suitable for humid production areas and long-term outdoor-adjacent installations. Feature: Supply includes 2 base/plinth trim panels plus assembly parts. Impact: Streamlines procurement and on-site assembly, cutting project timelines. Application: Quick-starter for bayed enclosures needing reliable base/plinth stabilization. Feature: Assembly instruction allows rotation of base/plinth trim panels through 90° to stabilize bayed components. Impact: Increases installation flexibility and stability in tight or irregular layouts. Application: Works well in multi-module rack systems where space constraints exist. Feature: Weight per pack is 2.686 kg across 2 panels. Impact: Facilitates manageable shipping, handling, and on-site handling without heavy lifting equipment. Application: Efficient for site deliveries and routine maintenance crews.
Get a Quick Quote for a Rittal 8702040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8702040?
Enquire Now
FAQs
The TS 8702.040 trim panels are designed specifically for TS 400 mm bay enclosures and fit between base and plinth components. They ship as a 2-pack with assembly parts and can be oriented 90° to suit baying requirements, ensuring straightforward integration with existing TS frames.
Important specs include height 200 mm, width 400 mm, material stainless steel 1.4301 (AISI 304) with a brushed surface finish, weight per pack 2.686 kg, and packaging of 2 panels. It also supports TS 400 mm bays and includes assembly instructions for accurate alignment.
Yes. Constructed from stainless steel 1.4301 (AISI 304) with a brushed finish, the panels offer superior corrosion resistance suitable for humid manufacturing environments and long-term reliability in demanding installations.
The panels can be rotated 90° to stabilize bayed base/plinth components. This flexibility helps when working in constrained spaces and supports stable multi-panel assemblies by allowing precise alignment during mounting.
The TS 8702.040 aligns with ETIM 9 EC000721 and ECLASS 8.0 27182003 classifications, ensuring consistent part data, seamless e-procurement, and easy integration into existing catalogs and ERPs.
