Rittal TS 8702.050 TS Trim panel - Stainless steel 1.4301
Part Number: 8702050
Quick Summary
The TS 8702.050 TS Trim panel is a 200 mm high stainless steel side trim for TS 500 mm wide enclosures, designed to create a clean, modular interface between base and plinth components. This accessory addresses common installation challenges such as baying instability and misalignment that slow retrofit projects. While exact certifications like CE or IP ratings are not listed for this accessory, it aligns with ETIM 9 EC000721 and ECLASS 8.0 27182003 for accurate cataloging and procurement. By enabling precise mounting and repeatable baying, this trim panel supports faster assembly, consistent aesthetics, and reduced maintenance in industrial environments, delivering clear business value for panel builders and system integrators alike.
Product Information
Extended Description

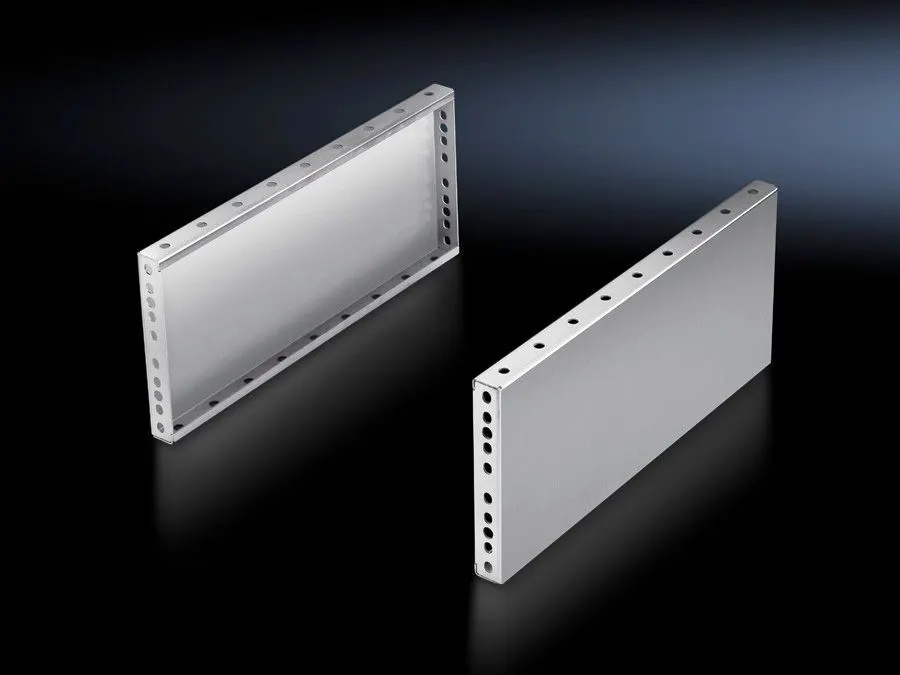

8702050 Rittal: TS Trim panel, sides, H: 200 mm, for W: 500 mm, Stainless steel 1.4301
Article number
TS 8702.050
Product description
For mounting between the base/plinth components. At 200 mm height, two 100 mm base/plinth trims may be used.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
2 base/plinth trim panels | Assembly parts
Assembly instruction
Base/plinth trim panels, side, 100 mm, may be installed rotated through 90° to stabilise bayed base/plinth components. The base/plinth baying bracket is required for this purpose
Dimensions
Height: 200 mm
To fit
Enclosure type: TS: = 500 mm
Packs of
2 pc(s).
Weight/pack
3.58 kg
Customs tariff number
94039910
EAN
4028177300002
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
TS Trim panel, sides, H: 200 mm, for W: 500 mm, Stainless steel 1.4301
Material and corrosion resistance drive long-term reliability: manufactured from stainless steel 1.4301 (AISI 304) with a brushed grain finish, the trim panel resists corrosion and is easy to wipe clean, reducing maintenance costs and downtime in harsh environments. This translates to lower total cost of ownership when used in dynamic TS enclosure installations and outdoor or semi-exposed installations. Dimensional compatibility and modularity enable quick, repeatable installations: with a height of 200 mm and width for TS 500 mm enclosures, two 100 mm base/plinth trims can be used per bay, simplifying layout planning and ensuring consistent gaps across multiple panels. Installation efficiency and flexibility: supplied in packs of two with assembly parts, and the base/plinth trim panels can be rotated through 90° to stabilize bayed components; a dedicated baying bracket is available to support this configuration, reducing complexity during mounting. Surface finish and maintenance ease: brushed surface finish (grain 400) not only looks professional but also minimizes visible wear and makes routine cleaning straightforward, aiding in compliance with cleanliness standards. Compatibility and procurement clarity: ETIM 9 EC000721 and ECLASS 8.0 27182003 references streamline integration with ERP and procurement catalogs, ensuring accurate part matching and reduces sourcing errors. Practical value for installers and end-users: the combination of robust material, clear assembly instructions, and two-pack packaging minimizes the risk of missing components and supports faster, repeatable installations across multiple enclosures.
Get a Quick Quote for a Rittal 8702050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8702050?
Enquire Now
FAQs
Yes, the TS 8702.050 is designed for TS enclosures with a 500 mm width. It functions as a pair of base/plinth trim panels that mount between the base and plinth components, allowing stable baying and consistent alignment when multiple panels are used in a row.
The trim panels are manufactured from stainless steel 1.4301 (AISI 304) with a brushed grain finish (grain 400). This combination provides corrosion resistance, ease of cleaning, and a professional appearance suitable for industrial environments.
Each pack contains two base/plinth trim panels plus assembly parts. The design supports installation of two 100 mm trims at 200 mm height, and the panels can be rotated 90° to assist with stabilizing bayed components, with the baying bracket recommended for this setup.
The provided data does not specify CE or IP ratings for the TS 8702.050. It does reference ETIM 9 EC000721 and ECLASS 8.0 27182003 for classification and procurement, and notes the material and finish as key differentiators.
Plan for a 200 mm high trim with two 100 mm base/plinth panels per bay. The panels may be rotated 90° to stabilize bayed components, and a base/plinth baying bracket is recommended to achieve robust, repeatable alignment across multiple units, reducing drift and installation time.
