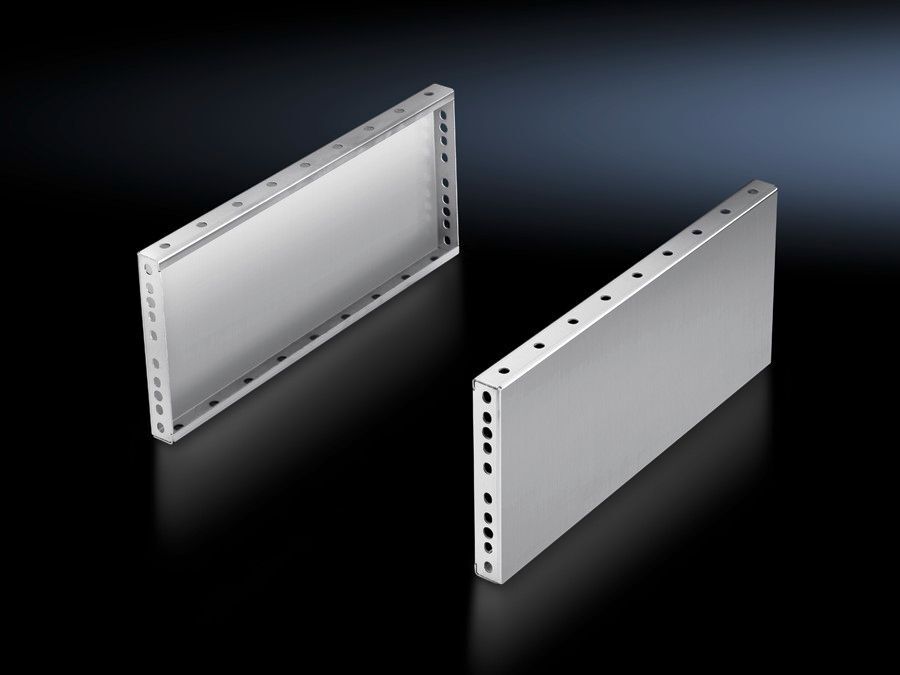

Rittal TS 8702.060 Trim Panel - Stainless Steel 1.4301
Part Number: 8702060
Quick Summary
Rittal TS 8702.060 Trim Panel provides mounting between base/plinth components for TS 600 mm enclosures. Without dedicated trim panels, misalignment and instability during base mounting can slow installation and raise maintenance costs. Key certifications to verify include CE compliance, IP protection considerations, and SIL compatibility; consult the official datasheet for exact ratings. This panel uses stainless steel 1.4301 with a brushed grain finish for durability and easy cleaning, while supporting efficient assembly and long-term reliability. Together with TS 600 mm enclosures, it helps streamline baying, stabilize base assemblies, and reduce field rework and lifecycle costs.
Product Information
Extended Description
8702060 Rittal: TS Trim panel, sides, H: 200 mm, for W: 600 mm, Stainless steel 1.4301
Article number
TS 8702.060
Product description
For mounting between the base/plinth components. At 200 mm height, two 100 mm base/plinth trims may be used.
Material
Stainless steel 1.4301 (AISI 304)
Surface finish
Brushed, grain 400
Supply includes
2 base/plinth trim panels | Assembly parts
Assembly instruction
Base/plinth trim panels, side, 100 mm, may be installed rotated through 90° to stabilise bayed base/plinth components. The base/plinth baying bracket is required for this purpose
Dimensions
Height: 200 mm
To fit
Enclosure type: TS: = 600 mm
Packs of
2 pc(s).
Weight/pack
4.5 kg
Customs tariff number
94039910
EAN
4028177299993
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
TS Trim panel, sides, H: 200 mm, for W: 600 mm, Stainless steel 1.4301
Feature: TS Trim panel, sides, H: 200 mm for W: 600 mm, stainless steel 1.4301 with brushed grain 400. Business Impact: Delivers corrosion-resistant, durable panels that maintain enclosure integrity in demanding environments, reducing replacement costs. Application: Ideal for TS 600 mm enclosures where base/plinth separation must be precise and clean. Feature: Supply includes 2 base/plinth trim panels and assembly parts. Business Impact: Enables faster, error-free installation with all necessary components in one pack, reducing on-site sourcing and downtime. Application: Suitable for rapid deployment in assembly lines and data centers. Feature: Base/plinth trims can be rotated through 90° to stabilize bayed components; requires base/plinth baying bracket. Business Impact: Provides flexible layout options for multi-cabinet bays, improving stability and reducing misalignment risk. Application: Great for modular TS enclosure configurations. Feature: Weight per pack 4.5 kg; Packs of 2; To fit TS: 600 mm; Height: 200 mm. Business Impact: Manageable weight supports safer on-site handling and predictable logistics, while two-pack packaging speeds standard installations. Application: Streamlines procurement and field assembly. Feature: Finish and material: stainless steel 1.4301 (AISI 304); Surface finish: brushed grain 400; EAN: 4028177299993; Customs tariff: 94039910. Business Impact: Combines corrosion resistance with a clean, easy-to-clean surface, aiding compliance and inspection. Application: Suitable for wash-down environments in industrial settings.
Get a Quick Quote for a Rittal 8702060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8702060?
Enquire Now
FAQs
Install the two base/plinth trim panels between the base components as per the assembly instructions. If needed, rotate the side panels 90° to stabilize bayed components, using the base/plinth baying bracket for secure alignment. The included assembly parts simplify fastening and reduce field adjustments.
The trim panels are 200 mm in height and designed for 600 mm wide TS enclosures. They are made from stainless steel 1.4301 (AISI 304) with a brushed grain finish, offering corrosion resistance and easy cleaning. Each pack contains two panels with a total weight of 4.5 kg per pack.
Yes. The product is specifically specified to fit TS enclosures with a 600 mm width, providing the necessary base/plinth separation and stabilizing the baying assembly for reliable performance.
Stainless steel 1.4301 (AISI 304) offers excellent corrosion resistance, durability, and cleanability in harsh industrial environments. The brushed surface finish reduces visible wear and eases inspection, while the robust construction helps extend enclosure service life and minimize maintenance.
Each order includes 2 base/plinth trim panels and assembly parts, designed as a complete kit for quick on-site installation. Packs are available as 2-piece units, with a weight of about 4.5 kg per pack, enabling efficient handling and logistics during installation.
