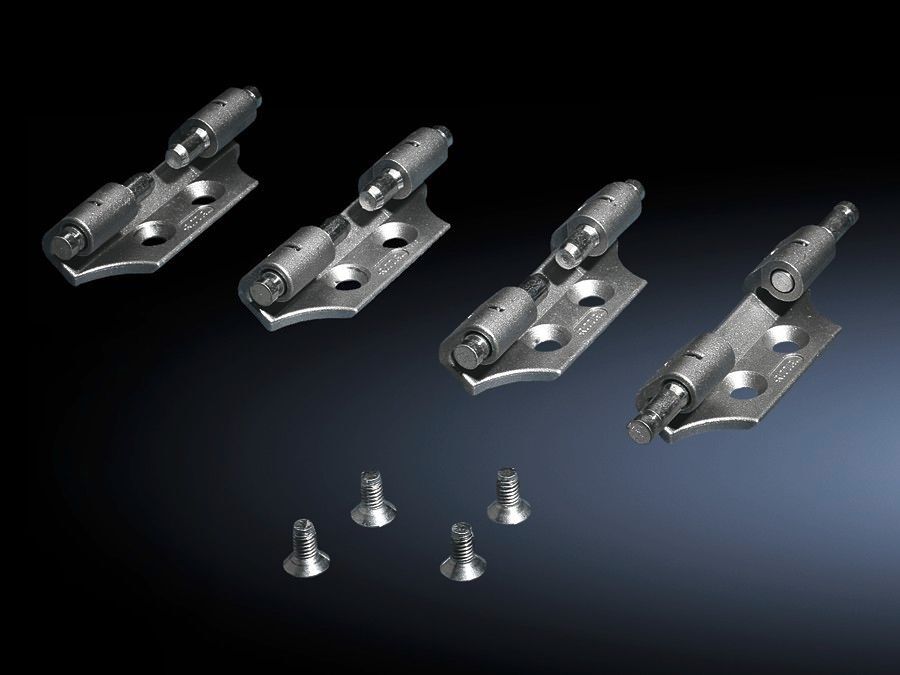

Rittal 8800020 Hinge - TS 130° for Sheet Steel Doors
Part Number: 8800020
Quick Summary
8800020 TS 130° hinge is a die-cast zinc door hinge for TS and VX SE sheet steel enclosures designed to deliver precise 130° opening and reliable access. In busy environments, misalignment and retrofit downtime can drive maintenance costs up; this hinge mitigates those issues by providing robust fit with included assembly parts for fast, predictable installation. Designed to align with ETIM 7.0 EC001167 and ECLASS 8.0 27409219 standards, it is traceable via GTIN 4028177212428 and carries a harmonized customs tariff of 83021000. For buyers, the combination of durable construction, standardized packaging, and clear part numbers translates into lower procurement complexity and smoother field service for sheet steel doors.
Product Information
Extended Description
8800020 Rittal: TS 130° hinge, for TS, SE, sheet steeldoor
Article number
SZ 8800.020
Material
Die-cast zinc
Supply includes
Assembly parts
Door opening angle
130°
Suitable for door variant
Sheet steel door
Packs of
4 pc(s).
Weight/pack
0.344 kg
Customs tariff number
83021000
EAN
4028177212428
ETIM 7.0
EC001167
ECLASS 8.0
27409219
Product description
TS 130° hinge, for TS, SE, sheet steeldoor
Die-cast zinc construction delivers high durability and corrosion resistance, reducing wear over the life of the enclosure and lowering maintenance costs in harsh industrial environments. The 130° door opening enhances access for maintenance, inspections, and component replacement, improving serviceability in compact switchgear and cabinet layouts. Supplying assembly parts with the hinge accelerates installation, minimizes sourcing steps, and reduces downtime during retrofits or new installations. Compatibility with TS and VX SE sheet steel doors streamlines procurement and ensures a precise fit, decreasing the risk of misalignment and rework. Packaging in packs of four (0.344 kg per pack) optimizes logistics and stock management, supporting cost-efficient field distribution and predictable project planning. The hinge also benefits from standardized classifications (ETIM 7.0 EC001167, ECLASS 8.0 27409219) that simplify digital sourcing and compliance tracking for industrial projects.
Get a Quick Quote for a Rittal 8800020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800020?
Enquire Now
FAQs
To install the SZ 8800.020 hinge, start by aligning the hinge leaf with the TS or VX SE sheet steel door and frame, then attach the supplied assembly parts with the included screws. The kit provides the complete mounting hardware, enabling rapid retrofit or new-build installation. Support the door during mounting to maintain precise alignment and ensure reliable 130° operation.
Key specs include: article number SZ 8800.020, material die-cast zinc, supply includes assembly parts, door opening angle 130°, suitable for sheet steel doors, packs of 4, weight per pack 0.344 kg, customs tariff 83021000, GTIN 4028177212428, ETIM 7.0 EC001167, and ECLASS 8.0 27409219. These details support accurate procurement and lifecycle planning.
Yes. The hinge is designed for TS and VX SE sheet steel doors and ships in four-piece packs with all assembly parts included, simplifying retrofit projects. Its durable construction and standardized dimensions reduce field modification needs, helping maintain project schedules and minimize downtime during door replacements or updates.
The 8800020 hinge complies with ETIM 7.0 EC001167 and ECLASS 8.0 27409219 classifications, aiding digital procurement and interoperability. It also carries GTIN 4028177212428 and a customs tariff classification of 83021000 for import consistency. While explicit CE or SIL ratings are not listed in the provided data, these classifications support standardized sourcing and traceability.
The die-cast zinc construction provides long service life with reduced wear, lowering maintenance needs. The inclusion of assembly parts and four-pack packaging speeds installation, decreasing downtime during upgrades. Overall, the hinge supports predictable lifecycle performance, faster serviceability, and lower total cost of ownership for sheet steel door installations in industrial enclosures.
