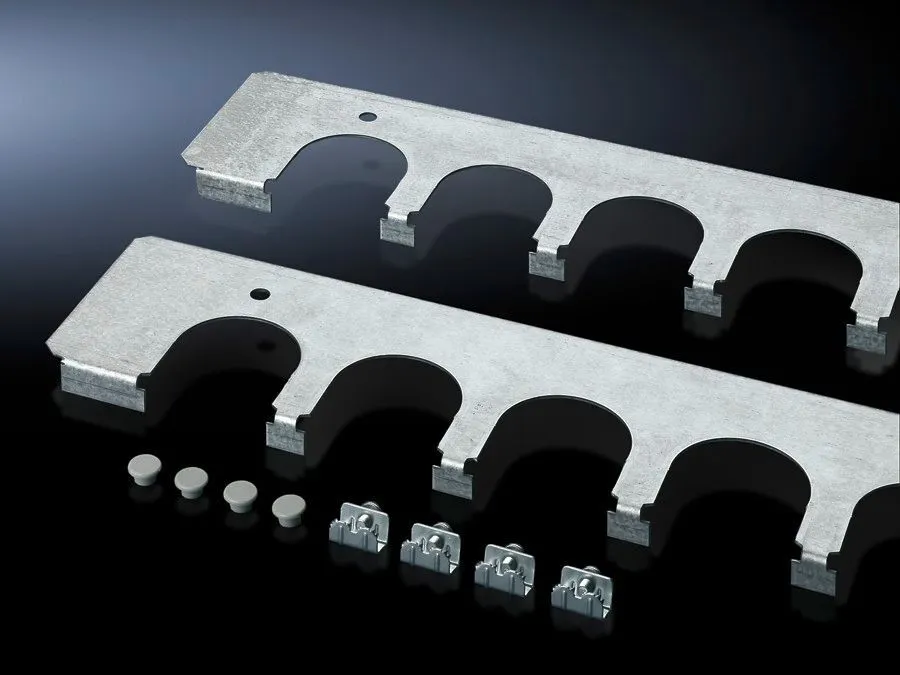

Rittal SZ 8800.100 TS Cable Entry Plate – 4 cut-outs
Part Number: 8800100
Quick Summary
Rittal SZ 8800.100 TS Cable Entry Plate securely routes cables in TS, SE and PC enclosures. This solution tackles the challenge of accommodating cables with different cross-sections without compromising enclosure integrity. While the data does not list CE, IP or SIL certifications, standard enclosure components typically align with CE requirements and robust industry practices. Designed from sheet steel with a zinc-plated finish and four cut-outs, it fits 1,000 mm wide TS enclosures and ships in packs of four for streamlined installation. Using this accessory can reduce installation time, improve cable management, and support safer, compliant wiring practices in industrial panels.
Product Information
Extended Description
8800100 Rittal: TS Cable entry plate, for TS, SE and PC enclosures, for W: 1000 mm
Article number
SZ 8800.100
Product description
Secure cable routing in conjunction with cable entry grommets, connector grommets. Fitted instead of standard gland plates.
Benefits
Particularly well-suited to cables with different cross-sections
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Number of cut-outs
4
To fit
Enclosure type:Â TS:Â = 1,000 mm | Enclosure type:Â SE
Packs of
4 pc(s).
Weight/pack
1.908 kg
Customs tariff number
73269098
EAN
4028177212480
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
TS Cable entry plate, for TS, SE and PC enclosures, for W: 1000 mm
Feature → Business Impact → Application: Four cut-outs provide dedicated routing channels for cables with varying cross-sections, reducing interference and easing future modifications, which translates to faster panel builds and easier maintenance in high-density enclosures. This improves wiring clarity and supports compliant, traceable installations in TS, SE, and PC configurations. Feature → Material and finish: sheet steel, zinc-plated construction delivers durable corrosion resistance in harsh manufacturing environments, extending enclosure life and lowering replacement costs for automated systems. Feature → Supply includes assembly parts: no extra hardware hunting needed, enabling quicker on-site assembly and reducing labor time during upgrades or retrofits in industrial facilities. Feature → Pack details: weight per pack 1.908 kg and packs of 4 enable predictable logistics and cost per enclosure, boosting planning accuracy for large-scale builds. Feature → Fitment: designed for 1,000 mm-wide TS enclosures, ensuring reliable compatibility with existing TS, SE and PC families and simplifying parts standardization.
Get a Quick Quote for a Rittal 8800100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800100?
Enquire Now
FAQs
To install, remove the existing gland plate, align the SZ 8800.100 mounting holes with enclosure bossing, place the plate in position, and secure with the included assembly parts. Verify four cut-outs align with intended cable runs, then route cables sequentially to minimize cross-section interference. This speeds up retrofits and new builds in industrial cabinets.
The four cut-outs provide separate ingress paths, allowing multiple cable sizes and shielded/unshielded conductors to be routed without crowding. This reduces bending radius issues and cross-talk risks, improving signal integrity and simplifying future changes as system wiring evolves in TS, SE, and PC enclosures.
Yes. The plate is specifically designed to fit TS 1,000 mm wide enclosures and is suitable for SE variants and PC enclosure families in the same width class. This compatibility supports standardized wiring layouts across a family of Rittal enclosures, reducing part variety during procurement.
The provided data does not list explicit CE, IP, or SIL certifications for SZ 8800.100. In practice, enclosure accessories used in European installations are expected to meet CE-related design practices and relevant IP protection levels, but verification with the supplier is advised for project-specific certification requirements.
By replacing standard gland plates with a purpose-made cable entry plate, installations gain faster assembly, improved cable management, and reduced risk of cross-section damage. The included assembly parts and pack configuration enable batch deployments (4 per set), lowering labor time and procurement complexity across multiple enclosures.
