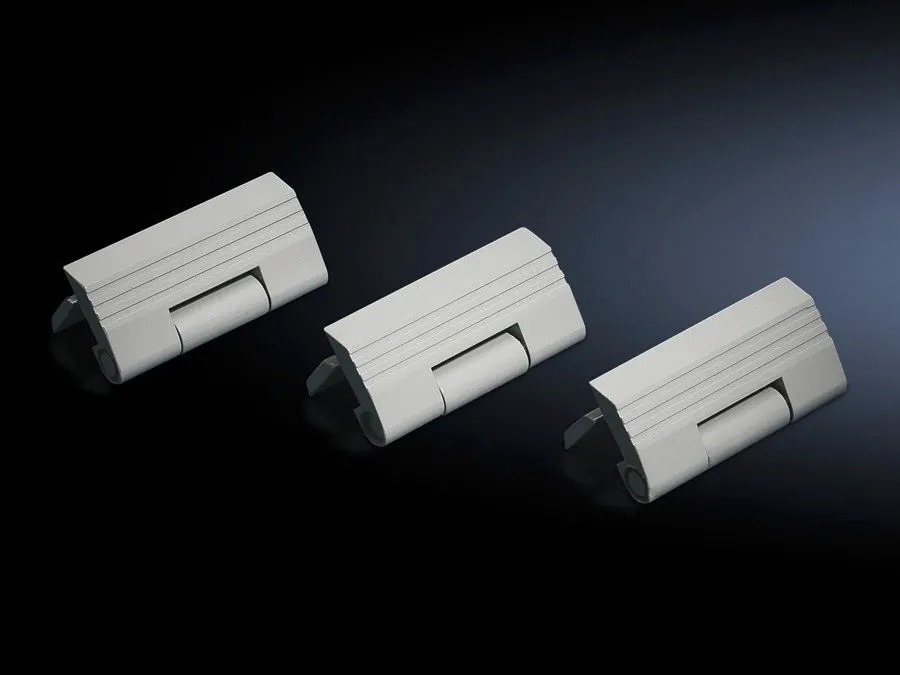

Rittal 8800110 TS Hinge for Side Panel - ETIM EC001167
Part Number: 8800110
Quick Summary
Rittal 8800110 TS Hinge for side panel enables a 180° opening for unhindered access to enclosure internals in control cabinets. When panel space is tight or layouts are crowded, technicians struggle with efficient maintenance and fast, reliable access. The accessory aligns with ETIM EC001167 and ECLASS 27409219 classifications, aiding standardized purchasing and specification. Built from die-cast zinc and finished in RAL 7035, it delivers durable performance with a consistent appearance. Supplied in packs of six with assembly screws, it supports scalable retrofits across multiple enclosures, helps preserve the enclosure’s protection category, and reduces service time while simplifying installation and field upgrades. Ideal for panel replacements and controlled upgrades in rugged environments.
Product Information
Extended Description
8800110 Rittal: TS Hinge for side panel, screw-fastened, sheet steel
Article number
TS 8800.110
Product description
The 180° opening angle allows unhindered access. Optionally installed either from the inside or outside of the enclosure.
Benefits
Despite the hinge, the protection category of the enclosure is retained
Applications
Replace the 3 enclosure panel holders with hinges
Material
Die-cast zinc
Colour
RAL 7035
Supply includes
Assembly screws
Note
Side panel and door hinges may only be installed on the same enclosure section when using a 180° door hinge
Packs of
6 pc(s).
Weight/pack
0.966 kg
Customs tariff number
83021000
EAN
4028177246997
ETIM 9
EC001167
ECLASS 8.0
27409219
Product description
TS Hinge for side panel, screw-fastened, sheet steel
The 180° opening angle is the core feature, enabling unhindered access to internal components during maintenance and wiring. This directly reduces time spent opening and re-sealing enclosures, boosting field efficiency for technicians working in crowded control panels. Designed as a screw-fastened hinge for side panels on sheet steel enclosures, TS 8800.110 integrates with standard hardware while preserving the enclosure’s protection category. Install from inside or outside without compromising protection, thanks to a robust design. Die-cast zinc construction delivers durability and corrosion resistance, while the RAL 7035 finish ensures visual uniformity across installations. Packaging in packs of six with assembly screws simplifies stocking and commissioning, and a weight per pack of 0.966 kg supports easy handling during upgrades. Compatibility notes: replace the three enclosure panel holders with hinges, and side panel and door hinges may only be installed on the same enclosure section when using a 180° door hinge. These features together enable scalable retrofits, reduce maintenance time, and support standardized procurement across multiple enclosures.
Get a Quick Quote for a Rittal 8800110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800110?
Enquire Now
FAQs
To install TS 8800.110, remove the existing panel fasteners and replace three with the hinge assembly using the included assembly screws. The hinge can be mounted from inside or outside the enclosure, preserving protection while increasing accessibility. Ensure you select the same enclosure section for compatible 180° hinge configurations and verify alignment with the door hinge if pairing.
Yes. The TS 8800.110 hinge is designed for installation from either the inside or outside of the enclosure. This flexibility supports handling tight spaces and crowded racks, enabling quick maintenance without compromising the enclosure’s structural integrity or protective rating.
The hinge is made from die-cast zinc for durability and corrosion resistance, and it is finished in RAL 7035 to match common enclosure colors. The supplied screws and the six-pack packaging simplify stocking and installation, while maintaining a uniform appearance across multiple enclosures.
Note that side panel and door hinges may only be installed on the same enclosure section when using a 180° door hinge. This ensures coordinated movement and maintains protection levels. Always confirm compatibility with your enclosure’s sectioning to avoid misalignment or protection gaps.
This hinge aligns with ETIM 9 EC001167 and ECLASS 8.0 27409219 classifications, aiding procurement systems and cataloging. It is supplied as packs of six with assembly screws and has an EAN of 4028177246997 for easy ordering. These standards support consistent specification across multiple enclosure projects.
