Rittal 8800330 TS Bracket - Die-cast Zinc
Part Number: 8800330
Quick Summary
Rittal 8800330 TS Bracket provides direct fixation on TS profiles in electrical enclosures. Engineers often face challenges mounting punched sections without mounting flanges, risking alignment and stability. This part complies with ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications, supporting consistent procurement and data accuracy. By integrating this bracket into TS enclosure builds, teams realize faster assembly, easier maintenance, and a longer service life thanks to durable die-cast zinc construction. It also complements TS rails and 23x23 mm punched rail configurations, reducing inventory fragmentation while improving structural integrity across customer installs.
Product Information
Extended Description
8800330 Rittal: TS Support bracket, for direct fixation on TS profile, of PS punched rail 23x23 mm/, PS punched rail 23x23 mm
Article number
TS 8800.330
Product description
For the attachment of punched sections without mounting flange 23 x 73 mm or punched rails 23 x 23 mm.
Material
Die-cast zinc
Supply includes

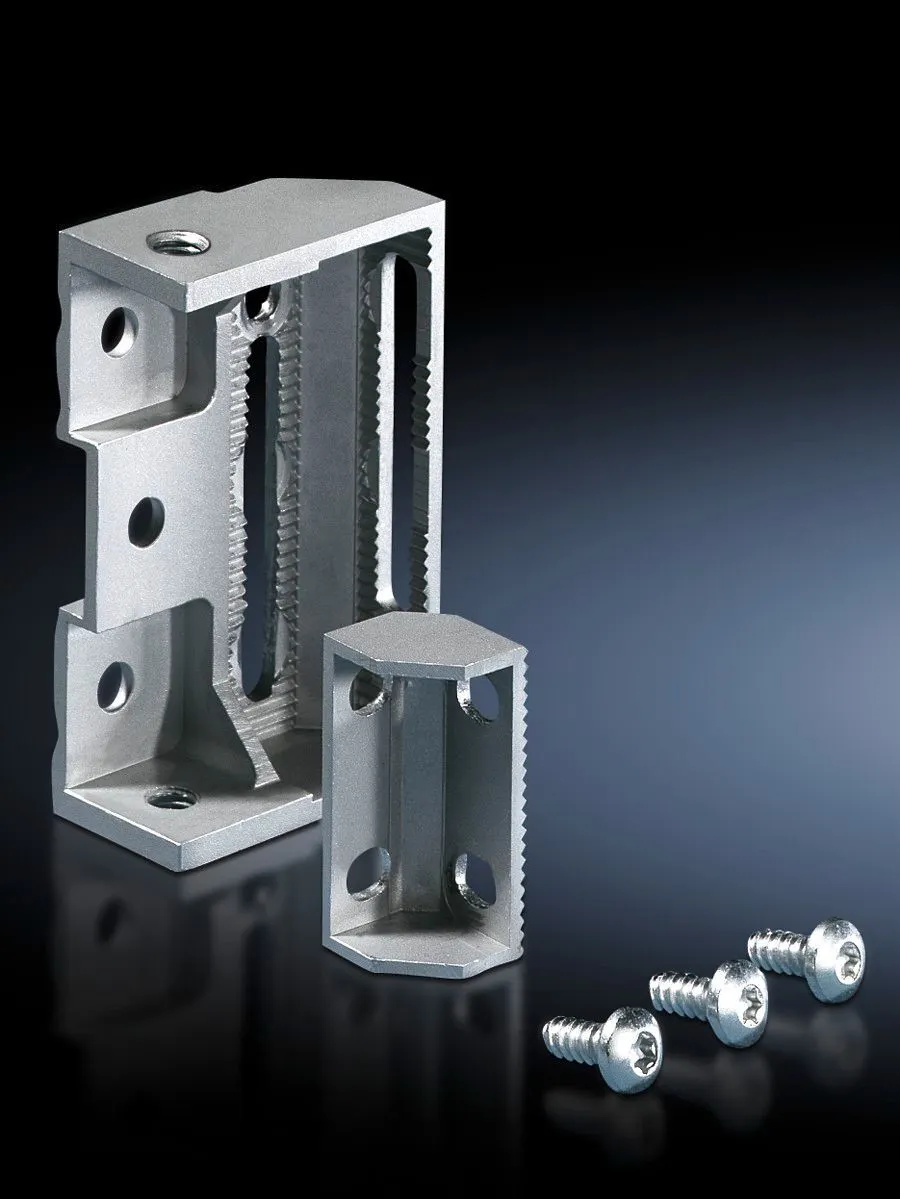

1 set = 1 support bracket, 1 stay, 3 metal screws 5.5 x 13 mm
Installation options
On the vertical TS enclosure section (25 mm pitch pattern, 2 mm increments)
To fit enclosure type
TS
Packs of
6 pc(s).
Weight/pack
1.122 kg
Customs tariff number
73182900
EAN
4028177230958
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Support bracket, for direct fixation on TS profile, of PS punched rail 23x23 mm/, PS punched rail 23x23 mm
Feature: Direct fixation on TS profile enables secure mounting of accessories without mounting flanges. Business Impact: Reduces assembly time and risk of misalignment, leading to faster wiring and more reliable internal mounting. Application: Suitable for direct fixation on TS enclosure sections and PS punched rails, ensuring consistent support for 23x23 mm rails and 23x73 mm punched sections. Feature: Die-cast zinc construction provides robust mechanical strength and corrosion resistance. Business Impact: Longer service life in harsh environments reduces replacement costs and downtime. Application: Ideal for indoor electrical enclosures where hardware reliability matters. Feature: Complete supply set includes 1 bracket, 1 stay, and 3 screws 5.5 x 13 mm. Business Impact: Simplifies BOM planning and minimizes trips to the parts cabinet. Application: Easy stocking for installation teams and pre-assembled kits for field retrofit. Feature: Installation options on vertical TS enclosure section with 25 mm pitch pattern, 2 mm increments. Business Impact: Precision alignment allows repeatable mounting across multiple positions, improving modularity. Application: Works with TS enclosure frames designed for 25 mm pitch increments. Feature: Compatibility with TS type enclosures and PS punched rails 23x23 mm, 23x73 mm. Business Impact: Broad compatibility reduces need for adapters and speeds up configuration. Application: Useful for control panels, power distribution enclosures, and automation cabinets. Feature: Pack size of 6 pieces per pack. Business Impact: Enables efficient procurement and scalable installations; reduces logistics footprint. Application: Ideal for standard kit builds and ongoing maintenance cycles.
Get a Quick Quote for a Rittal 8800330
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800330?
Enquire Now
FAQs
The TS Bracket is designed for direct fixation on TS profiles within TS enclosure systems. Install on vertical TS enclosure sections using the 25 mm pitch pattern with 2 mm increments for precise alignment. The package includes 1 bracket, 1 stay, and 3 screws (5.5 x 13 mm), simplifying field retrofit and panel upgrades without mounting flanges.
Key material is die-cast zinc for high strength and corrosion resistance. The article number is TS 8800.330, and the product ships as 1 set per pack (1 bracket, 1 stay, 3 screws 5.5 x 13 mm). The weight per pack is 1.122 kg, and it is intended for PS punched rails 23x23 mm as well as 23x73 mm punched sections.
Yes. The TS 8800.330 bracket is specifically designed for direct fixation on TS profiles and supports PS punched rails 23x23 mm as well as 23x73 mm punched sections. It provides stable mounting without mounting flanges, improving alignment, rigidity, and overall enclosure integrity in automation cabinets.
The product aligns with ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications, aiding consistent data exchange and procurement. It carries the GTIN 4028177230958 and uses Customs tariff number 73182900. While not a certified electrical safety rating, these classifications support interoperability and cataloging across engineering systems.
Adopting the TS Bracket streamlines assembly by reducing the number of mounting steps and required hardware, cutting installation time and labor costs. Its die-cast zinc construction improves durability and reduces maintenance cycles, while the included screws and stay simplify kit provisioning, lowering BOM diversification and inventory handling for service teams.
