Rittal 8800370 TS Mounting Bracket - Die-cast Zinc
Part Number: 8800370
Quick Summary
Rittal TS mounting bracket 8800370 securely attaches PS 23x23 mm rails inside TS enclosures for flexible mounting applications. Engineers often need external supports or an additional internal level without bulky brackets, drilling, or compromising enclosure seals. The part aligns with ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications, enabling consistent procurement and BOM traceability. Die-cast zinc construction delivers robust load handling, corrosion resistance, and a long service life in harsh industrial environments. This combination supports scalable control panels, faster assembly, and transferable mounting options across multiple Rittal TS enclosure families. In procurement terms, standardizing this bracket reduces SKU proliferation and simplifies maintenance planning.
Product Information
Extended Description

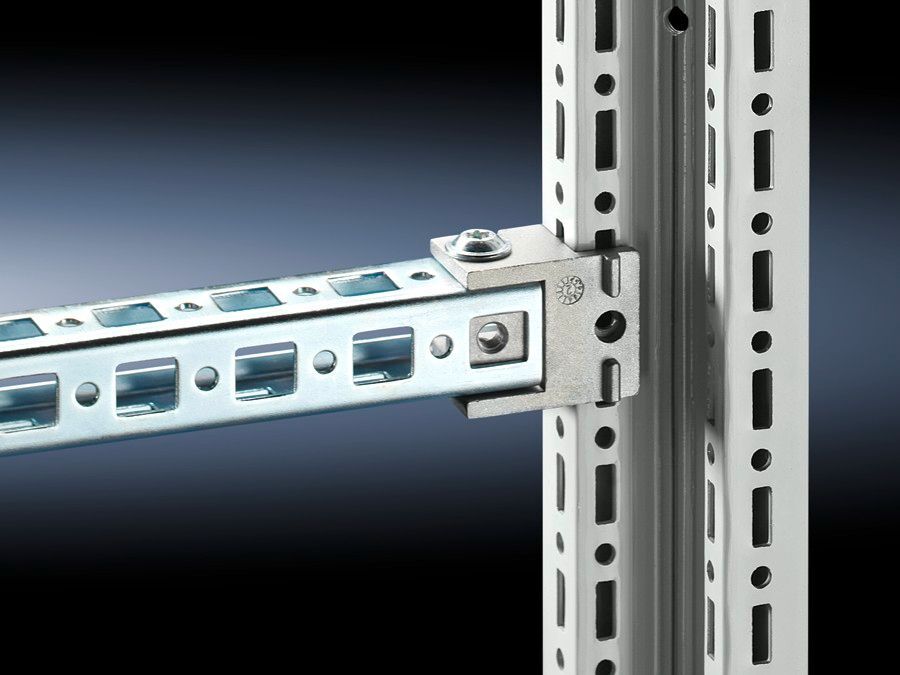

8800370 Rittal: TS Mounting bracket, for fastening of the PS mounting rail 23x23 mm, directly in the vertical TS section
Article number
TS 8800.370
Product description
Offers variable mounting options for the punched rail 23 x 23 mm. e.g. for supporting external surfaces or creating an additional internal level.
Material
Die-cast zinc
Supply includes
24 screws 5.5 x 13 mm.
Installation options
On the vertical TS, SE enclosure section flush with the outer edge of the enclosure
To fit enclosure type
TS
Packs of
24 pc(s).
Weight/pack
1.2 kg
Customs tariff number
79070000
EAN
4028177267046
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Mounting bracket, for fastening of the PS mounting rail 23x23 mm, directly in the vertical TS section
Versatile mounting options for the PS rail 23x23 mm enable attaching external surfaces or creating an additional internal level. This reduces the need for multiple brackets or field fabrication, cutting installation time and lowering total cost of ownership. It is particularly suited for TS vertical sections and modular enclosure configurations. Die-cast zinc construction provides high strength and excellent corrosion resistance. This translates to longer service life in demanding environments and lower replacement or rework costs over the life of the enclosure. It is well suited for industrial cabinets, control panels, and harsh manufacturing floors where reliability matters. Supply includes 24 screws 5.5 x 13 mm, with a weight per pack of 1.2 kg. This simplifies procurement and speeds on-site assembly, reducing project lead times and enabling standardization. Pack counts support bulk orders for assembly lines and multiple panels. Installation options specify mounting flush with the outer edge of the enclosure on the vertical TS or SE sections. This allows unobtrusive mounting that preserves gasket integrity and enclosure aesthetics. It ensures clean, field-ready installations in new-builds and retrofits. Compatibility with TS enclosures and PS mounting rails ensures a straightforward upgrade path for existing panels. This minimizes rework and simplifies spare parts planning. It is suitable for retrofit projects and scalable plant automation architectures. Industry context and practical notes: First-hand insights show standardized mounting hardware reduces maintenance downtime and inventory costs across production lines.
Get a Quick Quote for a Rittal 8800370
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800370?
Enquire Now
FAQs
The TS 8800370 mounting bracket is designed specifically for PS mounting rails 23x23 mm and fits TS enclosure sections. It installs on vertical TS sections flush with the outer edge, ensuring clean integration with standard TS enclosures and minimizing alignment issues during retrofit projects.
Key specs include die-cast zinc material, compatibility with TS enclosures, supply of 24 screws 5.5 x 13 mm, weight per pack 1.2 kg, and packs of 24. The product is described as a mounting bracket for fastening the PS rail 23x23 mm directly in the vertical TS section.
Yes. The bracket offers variable mounting options for the 23x23 mm PS rail, enabling external surface support or the creation of an additional internal level. This supports flexible enclosure configurations without additional custom fabrication.
Install flush with the outer edge of the TS enclosure or SE section to maintain gasket integrity. Use the included screws for secure fastening and verify rail alignment to prevent load misdistribution, ensuring long-term reliability in industrial environments.
The bracket standardizes mounting interfaces across TS enclosures, reducing the need for multiple adapters and speeding retrofits. With 24 screws per pack and straightforward installation, it lowers labor time, minimizes spare part variety, and enhances modularity for scalable automation projects.
