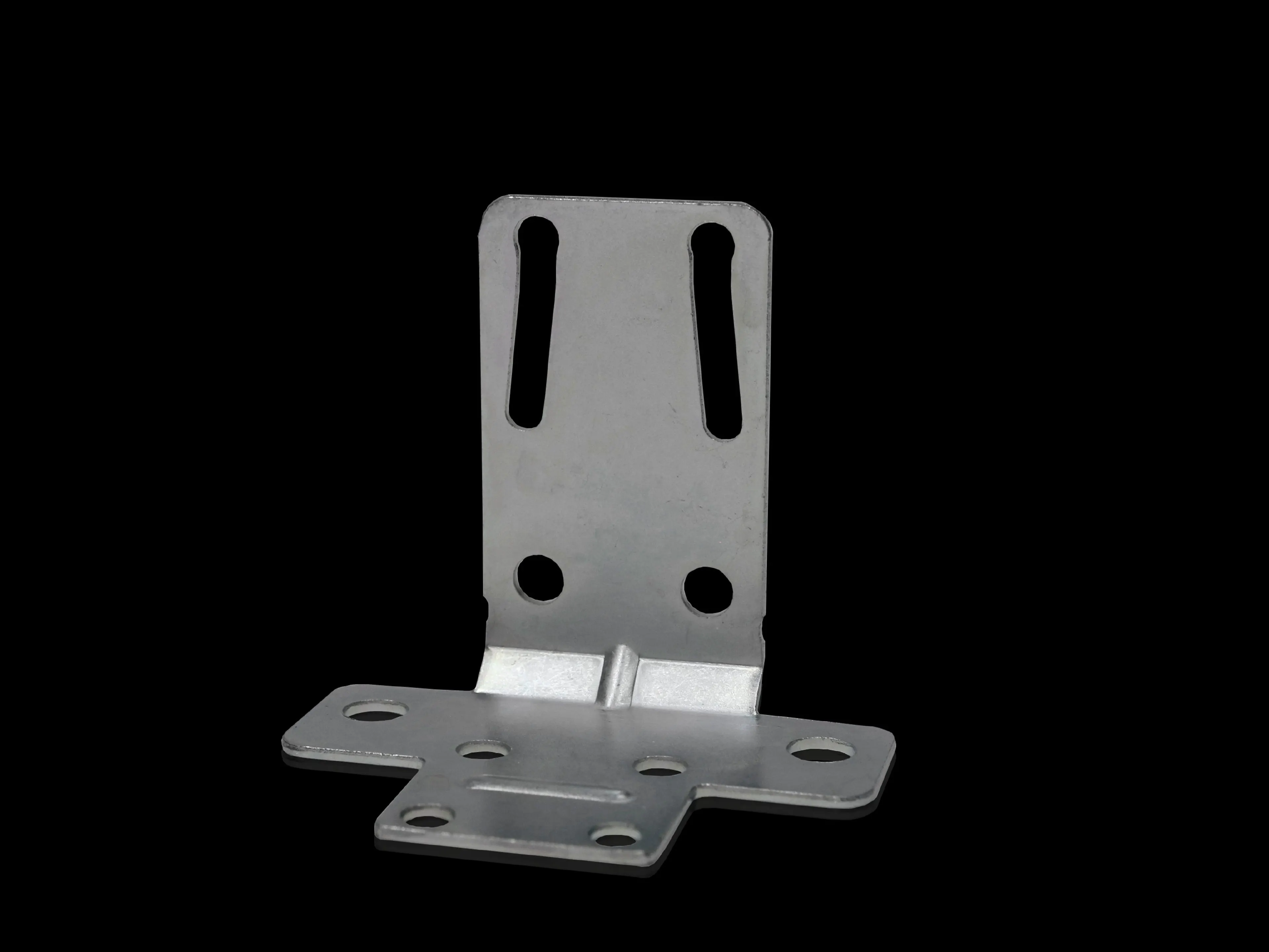

Rittal TS 8800.430 Baying Bracket - Zinc-Plated Sheet Steel
Part Number: 8800430
Quick Summary
Rittal TS 8800.430 Baying Bracket is designed to secure bayed enclosures during transport and handling. When bayed systems shift or rattle, equipment damage and site-delivery delays can escalate, increasing risk and cost. This part is aligned with ETIM EC002622 and ECLASS 8.0 27189263 classifications, signaling compatibility with purchasing data and data standards. With a zinc-plated sheet steel construction and a 4-piece pack, it delivers durable, ready-to-use hardware that reduces install time and sequencing risk, supporting lean maintenance and fast deployment across multiple bays. Supplying assembly parts and clear mounting guidance, it simplifies field installation and minimizes rework, delivering measurable uptime improvements for panel outfits and customer sites.
Product Information
Extended Description
8800430 Rittal: TS Angular baying bracket, for TS/TS
Article number
TS 8800.430
Product description
For a stable connection when transporting bayed enclosure suites.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Assembly instruction
Screw-fastening either horizontally and vertically with 8 screws, or horizontally with 2 screws and M8 threaded blocks, vertically with 4 screws
To fit
Enclosure type: TS 8
Packs of
4 pc(s).
Weight/pack
0.688 kg
Customs tariff number
73182900
EAN
4028177212725
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
TS Angular baying bracket, for TS/TS
Feature: Material and finish are sheet steel with a zinc-plated surface. Business impact: Enhanced corrosion resistance and longevity in harsh industrial environments, reducing replacement costs and maintenance intervals. Application: Ideal for TS enclosures in manufacturing, automation, and electrical cabinets requiring durable transport hardware. Feature: Compatibility with TS 8 enclosures. Business impact: Guarantees a proper fit, lowering risk of misalignment and rework during installation. Application: Streamlines procurement and onsite assembly for contractors and OEMs.Feature: Pack configuration of four pieces per set (weight/pack 0.688 kg). Business impact: Simplifies inventory management, shipping logistics, and bulk project planning. Application: Facilitates scalable deployments across multi-bay systems.Feature: Assembly flexibility using eight screws or two screws with M8 blocks (vertical and horizontal options). Business impact: Reduces tool requirements and accelerates compliant installations, cutting downtime. Application: Meets varied site conditions and installation protocols.Feature: Included assembly instructions and assembly parts. Business impact: Minimizes field errors and warranty claims by providing clear guidance. Application: Supports technician training and consistent installations across teams.Feature: Product classifications ETIM EC002622 and ECLASS 27189263. Business impact: Improves data interoperability with ERP, procurement, and cataloging systems. Application: Facilitates smoother product lifecycle management and supplier data integration.
Get a Quick Quote for a Rittal 8800430
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800430?
Enquire Now
FAQs
The bracket can be screw-fastened either horizontally and vertically with 8 screws, or horizontally with 2 screws and M8 threaded blocks, and vertically with 4 screws. This flexibility supports various installation layouts and reduces on-site modification, speeding up commissioning.
It is designed to fit Enclosure type TS 8, ensuring a precise, secure connection for bayed configurations. The compatibility simplifies sourcing and ensures predictable assembly across TS-series cabinets.
The bracket is made from sheet steel with a zinc-plated surface finish, delivering robust mechanical strength and corrosion resistance suitable for demanding industrial environments.
Packs contain 4 pieces, with a weight per pack of 0.688 kg. This packaging supports straightforward inventory management and efficient shipping for multi-bay deployments.
The product is classified under ETIM 9 EC002622 and ECLASS 8.0 27189263, aiding data interoperability with ERP and procurement systems and ensuring consistent cataloging across suppliers.
