Rittal TS 8800.570 Cable Duct - Flame-Resistant
Part Number: 8800570
Quick Summary
Rittal TS 8800.570 cable duct is designed to support vertical TS sections in compact enclosures. Too often, installers face misaligned mounting points and time-consuming drilling when expanding TS layouts. CE conformity is confirmed by the included Declaration of Conformity, and the hard PVC is flame-resistant and self-extinguishing to enhance enclosure safety. This solution also aligns with TS hole patterns for faster assembly and long-term reliability, helping procurement teams reduce stock complexity while improving install times. In practice, engineers gain predictable cable routing and easier future upgrades across TS, VX SE, PC, and IW enclosure families. This translates to reduced commissioning risk and faster project handoffs.
Product Information
Extended Description

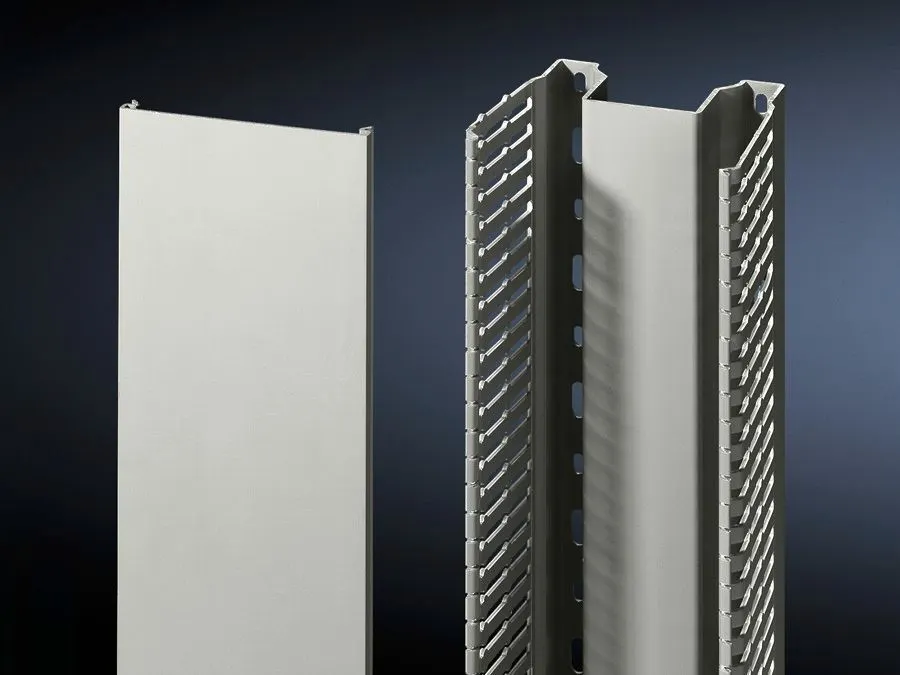

8800570 Rittal: TS Cable duct for vertical TS section, WHD: 50x1600x80 mm
Article number
TS 8800.570
Design
Width 50 mm, for assembly on one vertical enclosure section in the area of the side panel.
Benefits
The cable duct fastening points are co-ordinated with the TS system hole pattern. This eliminates time-consuming drilling work that would be necessary with DIN ducts.
Material
Hard PVC | Flame-resistant, self-extinguishing
Colour
Similar to RAL 7030
Supply includes
Cable duct with cover
Bar width
5.5 mm
Slot width
4.5 mm
Note
Can be shortened for other enclosure sizes.
Dimensions
Width: 50 mm | Height: 1,600 mm | Depth: 80 mm
To fit
Enclosure type: TS | VX SE | PC | IW | Height: ≤ 1,800 mm
Operating temperature range
60 °C
Packs of
8 pc(s).
Weight/pack
9.44 kg
Customs tariff number
73269098
EAN
4028177238015
ETIM 9
EC000012
ECLASS 8.0
27400703
Product description
TS Cable duct for vertical TS section, WHD: 50x1600x80 mm
Feature: TS hole pattern alignment eliminates drilling and reduces field modification steps. Business Impact: Speeds up installation, lowers labor costs, and reduces error-prone mounting, especially in bayed TS layouts. Application: Ideal for busy panel shops upgrading existing enclosures with consistent hole patterns and standardized cable routing. Feature: Width 50 mm, height 1,600 mm, depth 80 mm fits compact vertical TS sections. Business Impact: Delivers a compact, predictable footprint that maximizes enclosure real estate and improves airflow management. Application: Suitable for TS, VX SE, PC, IW enclosures up to 1,800 mm in height, enabling scalable wiring channels. Feature: Material is hard PVC, flame-resistant and self-extinguishing. Business Impact: enhances fire safety, supports compliance, and reduces risk during electrical testing phases. Application: Reliable in harsh industrial environments and within the TS system family. Feature: Supply includes cable duct with cover; packs of eight; weight per pack 9.44 kg. Business Impact: Simplifies procurement and packaging, minimizes on-site assembly time, and streamlines stocking. Application: Ready-to-install solution for rapid project commissioning. Feature: Can be shortened for other enclosure sizes. Business Impact: Increases versatility, lowers inventory variety, and accelerates design changes. Application: Enables customization for non-standard TS enclosures without custom fabrication. Feature: Operating temperature range up to 60 °C. Business Impact: Supports reliable performance in typical enclosure environments, reducing thermal-related drift. Application: Suitable for standard indoor industrial environments and equipment bays requiring durable routing.
Get a Quick Quote for a Rittal 8800570
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800570?
Enquire Now
FAQs
TS 8800.570 is designed for vertical TS sections and supports enclosure families including TS, VX SE, PC, and IW up to 1,800 mm in height. It matches the TS system hole pattern, enabling installation without additional drilling. The 50 mm width and 1,600 mm height provide a consistent cable routing channel that scales with standard enclosure builds and bayed configurations.
Key specifications include width 50 mm, height 1,600 mm, depth 80 mm, and a flame-resistant hard PVC construction. Each pack contains 8 cable ducts with a total weight of 9.44 kg per pack, and the unit is designed for operating temperatures up to 60 °C. The supply includes the duct with cover, and the product is identified by article number TS 8800.570 with EAN 4028177238015.
Install TS 8800.570 on the vertical enclosure section in the vicinity of the baying, aligning with the TS hole pattern to avoid any field drilling. This location supports efficient cable routing next to side panels, enabling clean, maintainable wiring runs and straightforward future upgrades within bayed TS layouts.
CE conformity is documented via the included Declaration of Conformity, and the material is flame-resistant and self-extinguishing to support safety requirements in industrial enclosures. While ETIM/ECLASS classifications are provided for procurement, ensure site-specific compliance checks align with your regional safety standards and DoC documentation.
Using TS 8800.570 reduces installation time by eliminating drilling and simplifying mounting through TS hole-pattern compatibility. The product’s predictable dimensions and packaging (eight per pack) streamline stocking and reduce field errors, contributing to lower labor costs, faster commissioning, and improved long-term reliability of vertical cable routing in TS-based enclosures.
