Rittal TS 8800.620 EMC Gland Plate - Shielded Cables
Part Number: 8800620
Quick Summary
The TS 8800.620 EMC gland plate is a shielded-cable solution for TS enclosures that provides a low-resistance shield contact. Design engineers often battle EMI leakage while striving for fast, reliable installation in busy control cabinets. ETIM EC002620 and ECLASS 27189261 classifications help with data standardization, though the product notes that standard IP protection is not supported. This combination reduces total cost of ownership by cutting assembly steps and improving EMI compliance across 400–800 mm deep TS enclosures. By leveraging built-in EMC seals and the included hardware, installers achieve faster commissioning with fewer field issues. In practice, you get reliable shielding, compatibility with TS enclosure standards, and a predictable supply that helps stock and procurement teams.
Product Information
Extended Description
8800620 Rittal: TS EMC gland plate, W: 1200 mm
Article number
TS 8800.620
Product description
For shielded cables with a maximum diameter of 20 mm. Combined EMC contacting and cable fastening provide low-resistance contact between the cable shield and gland plate. For all 400, 500, 600 and 800 mm deep enclosures in conjunction with standard gland plates.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes

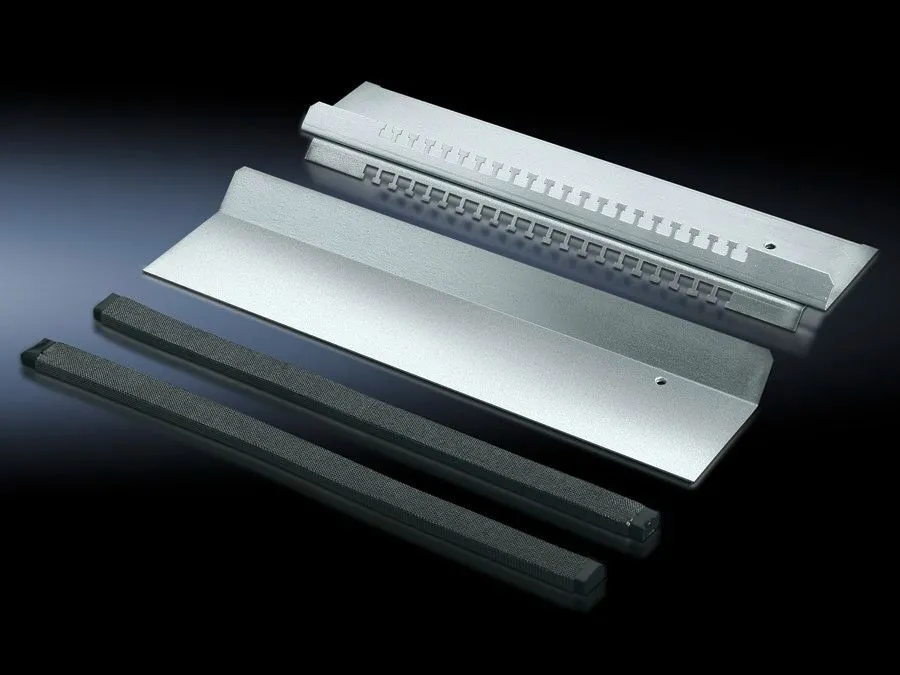

Cable clamp strip with hammer-head punching | 1 sliding gland plate | 2 EMC seals
Note on Model No.
For one enclosure half only
To fit
Enclosure type: TS | Width: = 1,200 mm
Note
Standard-compliant IP protection category not supported
Packs of
1 pc(s).
Weight/pack
1.98 kg
Customs tariff number
73269098
EAN
4028177214910
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
TS EMC gland plate, W: 1200 mm
Feature: Shielded-cable compatibility up to 20 mm diameter in TS enclosures. Business Impact: Ensures EMI integrity with a low-resistance contact path between shield and gland plate, reducing leakage and boosting compliance. Application: Ideal for 400–800 mm deep TS enclosures using standard gland plates in factory automation environments. Feature: Integrated EMC contacting and cable fastening. Business Impact: Streamlines assembly, lowers part counts, and reduces risk of contact degradation over time. Application: Quick-field installations in high-throughput panel builds. Feature: Durable materials and finish. Business Impact: Sheet steel with zinc-plated finish delivers ruggedness and corrosion resistance for harsh industrial settings. Application: Long service life in automation cabinets with frequent maintenance. Feature: Complete supply kit. Business Impact: Includes cable clamp strip with hammer-head punching, 1 sliding gland plate, and 2 EMC seals, enabling faster, reliable installation. Application: Ready-to-install solution for TS enclosures. Feature: Precise fit for TS enclosure width 1,200 mm. Business Impact: Reduces alignment issues and procurement complexity with a standard width. Application: Streamlined logistics for 1.2 m wide TS systems.
Get a Quick Quote for a Rittal 8800620
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800620?
Enquire Now
FAQs
The TS 8800.620 EMC gland plate is designed for TS enclosures with depths of 400, 500, 600 and 800 mm when paired with standard gland plates. It supports shielded cables up to 20 mm in diameter and ensures EMC continuity through combined contacting and cable fastening. This makes it ideal for mid-range control cabinets in factory automation.
The gland plate provides low-resistance contact between the cable shield and the gland plate via integrated EMC contacting and cable fastening. This reduces EMI leakage along the entry point, improves enclosure integrity, and helps meet typical EMC directives in automated production lines. The design supports reliable performance even in harsh industrial environments.
The TS 8800.620 ships as a ready-to-install kit that includes one sliding gland plate, two EMC seals, and a cable clamp strip with hammer-head punching. This eliminates multiple sourcing steps and reduces installation time in TS enclosures. The parts are sized for a standard 1.2 m wide enclosure, aligning with 400–800 mm depths.
Constructed from sheet steel with a zinc-plated finish, the gland plate offers robust durability in industrial environments. The 1.98 kg per pack weight reflects a solid, field-ready component that resists corrosion and wear during servicing. It is designed to withstand routine panel maintenance while keeping EMI protection intact. The zinc-plated surface supports long service life in dusty, humid environments.
Note that the gland plate does not provide a standard IP protection rating, and IP protection category is not supported by this accessory. It uses ETIM EC002620 and ECLASS 27189261 classifications for data standardization and is designed to be used with TS enclosures in industrial automation contexts. For European compliance, refer to the enclosure system's CE certifications.
