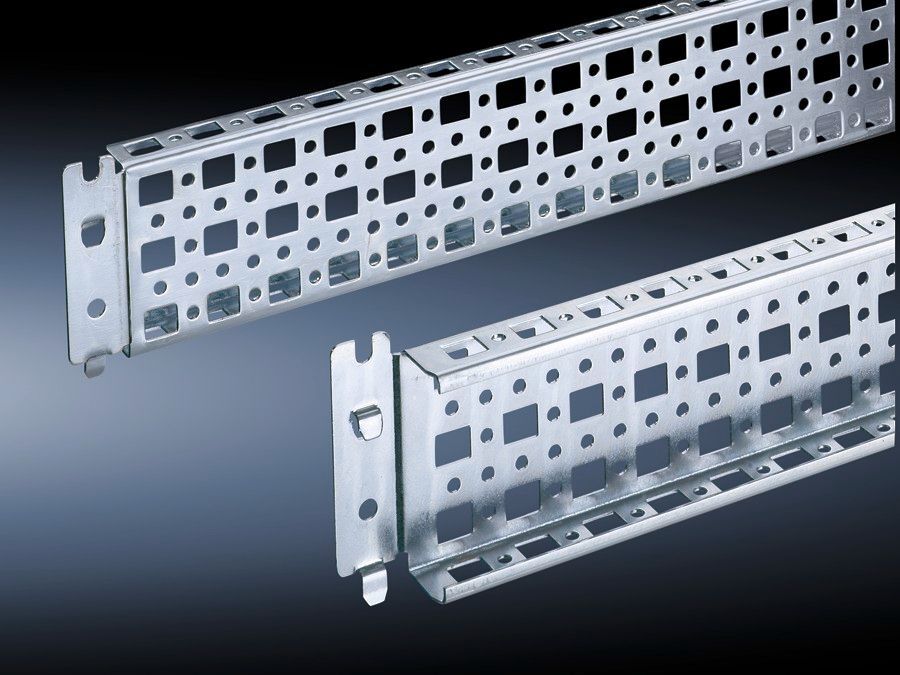

Rittal 8800640 TS Punched Section - 23x73 mm, Zinc-Plated, VX SE Compatible
Part Number: 8800640
Quick Summary
Rittal 8800640 TS punched section is a mounting flange for TS enclosures used in universal skeleton structures. It helps simplify assembly by locating directly into the TS punchings and securing quickly, reducing misalignment and install time. While ETIM EC002625 and ECLASS 27189234 provide standardized data, explicit SIL, CE or IP certifications are not listed in the data; however, the product is designed for reliable, durable mounting with VX SE adaptor rails for VX compatibility. This combination supports consistent enclosure mounting across TS and VX SE installations, offering a robust base for modular cabinet builds and efficient procurement workflows.
Product Information
Extended Description
8800640 Rittal: TS punched section with mounting flange, 23 x 73 mm, for TS, SE, for W/D: 400 mm
Article number
SZ 8800.640
Product description
Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate into the system punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Installation options
On the vertical TS, VX SE enclosure section via adaptor rails for VX compatibility
To fit
Enclosure type: TS | VX SE | To fit width/depth: 400 mm
Packs of
4 pc(s).
Weight/pack
1.66 kg
Customs tariff number
73269098
EAN
4028177290228
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 23 x 73 mm, for TS, SE, for W/D: 400 mm
Feature: Five rows of holes for universal skeleton structures in a 23 x 73 mm footprint. Business Impact: Enables flexible mounting configurations and faster skeleton assembly, reducing field modifications and project delays. Application: Ideal for TS and SE enclosures requiring adaptable internal frameworks. Feature: Sheet steel construction with a zinc-plated finish. Business Impact: Provides corrosion resistance and long service life in harsh industrial environments, lowering maintenance costs. Application: Suitable for factory floors, outdoor setups, and environments with temperature and humidity fluctuations. Feature: Install options on vertical TS or VX SE enclosure sections via adaptor rails for VX compatibility. Business Impact: Expands compatibility with VX accessories, enabling seamless retrofits and scalable installations. Application: Used in modernized panels and retrofitted cabinets in mixed VX/TS ecosystems. Feature: Supplied with assembly screws; packs of four pieces per package. Business Impact: Reduces procurement steps, speeds up on-site assembly, and lowers logistics handling time. Application: Field kits for large installations and multi-cabinet projects. Feature: To fit TS and VX SE with 400 mm width; data references ETIM EC002625 and ECLASS 27189234 aid interoperability. Business Impact: Improves data accuracy in CAD/WMS systems and procurement, minimizing errors. Application: Engineering design and purchasing in standardized enclosures.This section also highlights practical insights for industrial practitioners, such as compatibility with common skeleton structures and the value of standard data models in supplier catalogs.
Get a Quick Quote for a Rittal 8800640
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800640?
Enquire Now
FAQs
Yes. The 8800640 is designed for TS and SE enclosure applications and supports VX compatibility through adaptor rails. It installs into TS punchings and ships as a ready-to-assemble kit with screws, simplifying retrofits and new builds alike.
The section features a 23 x 73 mm hole pattern on a sheet steel, zinc-plated flange with a 400 mm width suitable for TS and VX SE installations. It ships in packs of four and includes assembly screws for straightforward mounting to TS punchings.
With five rows of holes for universal skeleton structures and a mounting flange that locates into system punchings, installation time is reduced and alignment is improved. The included screws further streamline on-site assembly, especially in multi-cabinet projects.
The product data references ETIM EC002625 and ECLASS 27189234, enhancing interoperability and catalog accuracy. GTIN is 4028177290228, and the EAN matches the listed identifier for straightforward procurement.
Suitable for TS and VX SE enclosures with a 400 mm width, the zinc-plated sheet steel construction provides corrosion resistance for industrial environments. It supports universal skeleton structures and is compatible with VX adaptor rails for scalable enclosure setups.
