Rittal 8800650 TS Punched Section - 23 x 73 mm
Part Number: 8800650
Quick Summary
Rittal 8800650 TS punched section is a mounting flange accessory for TS enclosures, enabling flexible skeleton structures. Installation pain points like misalignment and time-consuming assembly are minimized by locating directly into the system punchings and securing. It aligns with ETIM 9 EC002625 and ECLASS 8.0 27189234 standards, and carries the EAN 4028177290235 for traceability. Designed for TS and VX SE enclosure sections with adaptor rails, it supports a 500 mm width/depth and helps standardize components across sites. Together with quick-install screws and a durable zinc-plated finish, this part reduces installation labor and improves maintenance readiness across assemblies.
Product Information
Extended Description

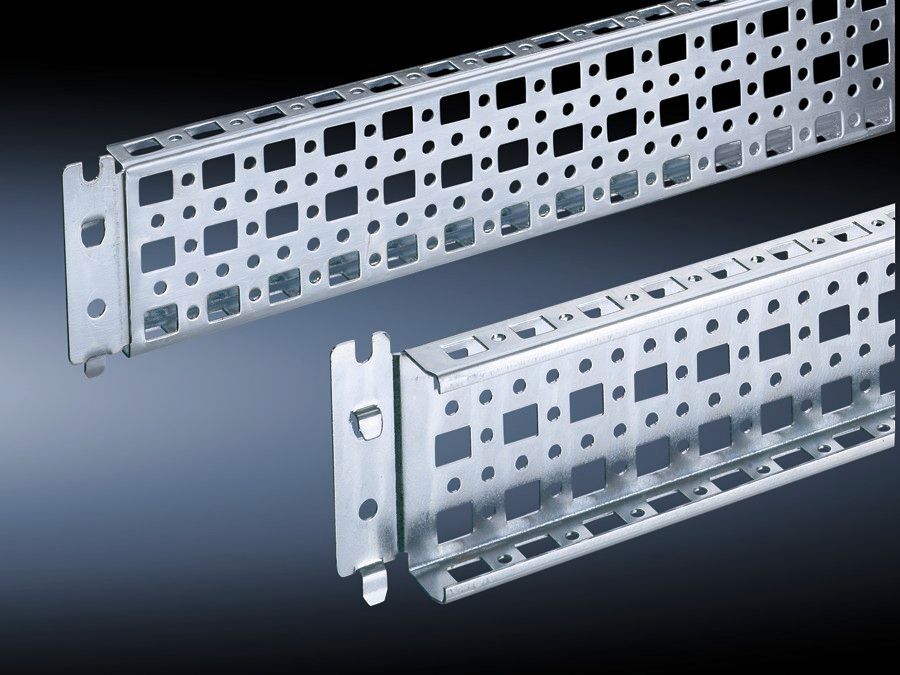

8800650 Rittal: TS punched section with mounting flange, 23 x 73 mm, for TS, SE, for W/D: 500 mm
Article number
SZ 8800.650
Product description
Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate into the system punchings and secure.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Installation options
On the vertical TS, VX SE enclosure section via adaptor rails for VX compatibility
To fit
Enclosure type:Â TS | VX SE | To fit width/depth:Â 500 mm
Packs of
4 pc(s).
Weight/pack
2.048 kg
Customs tariff number
73269098
EAN
4028177290235
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 23 x 73 mm, for TS, SE, for W/D: 500 mm
Feature TS punched section with mounting flange, 23 x 73 mm, enables a repeatable mounting plane for TS and SE enclosure sections. Business Impact This minimizes misalignment and simplifies skeleton construction, reducing field rework and speeding on-site panel assembly. Application Suitable for W/D: 500 mm configurations and works with adaptor rails for VX compatibility. Feature Material: Sheet steel; Surface finish: Zinc-plated. Business Impact Provides corrosion resistance and long-term durability in harsh industrial environments, lowering maintenance cycles. Application Ideal for control panels and enclosures across manufacturing floors. Feature Supply includes assembly screws; Packs of 4; Weight/pack: 2.048 kg. Business Impact Reduces procurement steps and ensures ready-to-use hardware, accelerating project timelines. Application Useful for multi-section builds and standardized spares. Feature Installation options: On the vertical TS, VX SE enclosure section via adaptor rails for VX compatibility. Business Impact Enables flexible integration with existing VX frames, minimizing retrofit work. Application Facilitates quick retrofits in mixed enclosure environments. Feature To fit: Enclosure type TS | VX SE; To fit width/depth: 500 mm. Business Impact Ensures compatibility with the most common TS and VX SE configurations, reducing custom fabrication. Application Streamlines design-for-manufacture and field installation. Note: This product ships in packs of four and includes assembly screws, supporting consistent installation practices and efficient stock management. Long-tail keywords: TS enclosure accessories, mounting flange for TS enclosures, VX compatibility, adaptor rails, zinc-plated sheet steel, system punchings.
Get a Quick Quote for a Rittal 8800650
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800650?
Enquire Now
FAQs
The 8800650 is designed for TS and VX SE enclosures, mounting into TS punchings and, when used with adaptor rails, enabling VX compatibility. It ships with assembly screws and is zinc-plated for durability, allowing quick, secure installation without additional hardware or fabrication.
Key specs include a mounting flange size of 23 x 73 mm, sheet steel construction with a zinc-plated finish, and a 500 mm width/depth (W/D). Each pack contains four pieces and ships with assembly screws for immediate use on TS or VX SE systems.
Yes. The part is described as variable with five rows of holes, enabling universal skeleton structures or partial assemblies. This supports flexible configurability and reduces the need for custom fabrications when building or modifying TS-based enclosures.
The data lists ETIM 9 EC002625 and ECLASS 8.0 27189234 as classifications, along with an EAN for traceability. While CE or IP/SIL certifications are not specified in the data, these classifications help ensure interoperability within standard industrial procurement and maintenance ecosystems.
Using the 8800650 reduces assembly time, standardized mounting across TS/VX SE configurations, and stock-keeping with packs of four and included screws. The zinc-plated finish offers corrosion resistance, potentially lowering maintenance cycles and extending enclosure service life in harsh environments.
