Rittal 8800660 EMC Gland Plate - Shielded Cables 20 mm
Part Number: 8800660
Quick Summary
Rittal 8800660 EMC gland plate enables reliable EMC grounding for shielded cables entering TS enclosures. Installers often face difficulties maintaining low-resistance shielding while keeping cabinet access and cable management straightforward. While this accessory does not carry a standard IP protection rating, it aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, supporting robust data and parts classification. The solution also complements standard gland plates, delivering improved shielding efficiency in industrial panels. By packaging EMC sealing with a ready-to-install gland plate, it helps reduce installation time and lifecycle costs, while enabling consistent performance across 400 to 800 mm deep TS enclosures. For buyers, this means more predictable outcomes and smoother procurement workflows when equipping automation cabinets with shielded cabling.
Product Information
Extended Description
8800660 Rittal: TS EMC gland plate, W: 600 mm
Article number
TS 8800.660
Product description
For shielded cables with a maximum diameter of 20 mm. Combined EMC contacting and cable fastening provide low-resistance contact between the cable shield and gland plate. For all 400, 500, 600 and 800 mm deep enclosures in conjunction with standard gland plates.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes

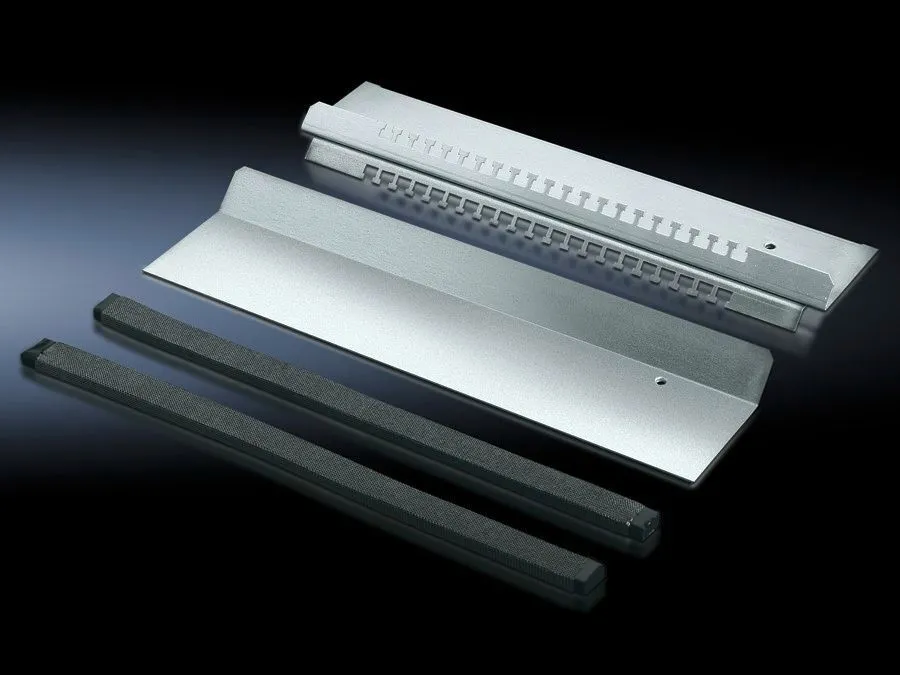

Cable clamp strip with hammer-head punching | 1 sliding gland plate | 2 EMC seals
To fit
Enclosure type: TS | Width: = 600 mm
Note
Standard-compliant IP protection category not supported
Packs of
1 pc(s).
Weight/pack
1.8 kg
Customs tariff number
73269098
EAN
4028177214880
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
TS EMC gland plate, W: 600 mm
Feature: EMC contacting and cable fastening create a low-resistance path between the cable shield and the gland plate. Business impact: improves shielding effectiveness, reduces noise susceptibility, and supports reliable operation of sensitive automation components. Application: ideal for shielded cables entering TS enclosures in motor drives and PLC panels. Feature: Sheet steel, zinc-plated surface finish. Business impact: delivers durable protection in harsh industrial environments with corrosion resistance and long service life. Application: suitable for factory floors, outdoor installations, and harsh manufacturing environments. Feature: Width designed for TS enclosures at 600 mm. Business impact: enables plug-and-play compatibility with standard gland plates, reducing field customization and installation time. Application: supports 400, 500, 600 and 800 mm deep enclosures. Feature: Supplied as a complete kit (cable clamp strip with hammer-head punching, 1 sliding gland plate, 2 EMC seals). Business impact: fast setup, fewer components to manage, and consistent assembly across sites. Application: streamlines panel upgrades and new cabinet builds. Feature: Note on IP protection. Business impact: clarifies expectations for protection requirements, guiding customers to plan additional sealing if IP compliance is mandatory. Application: helps procurement teams align with project-spec IP requirements and reduces post-purchase changes. Feature: Pack details (1 pc) and weight (1.8 kg). Business impact: straightforward shipping, handling, and inventory planning. Application: efficient logistics and warehouse stocking for panel assembly.
Get a Quick Quote for a Rittal 8800660
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800660?
Enquire Now
FAQs
Begin by confirming enclosure depth compatibility (TS 400, 500, 600, 800 mm) and width (600 mm). Remove the standard gland plate if required, align the TS 8800.660 accessory, and fit the sliding gland plate. Insert the cable into the shielded entry, secure with the cable clamp strip, and install the two EMC seals to establish a low-resistance shield connection. Ensure any existing cabling remains organized and that the kit components are properly seated before re-sealing the enclosure.
The gland plate supports shielded cables with a maximum diameter of 20 mm. It is designed to fit TS enclosures with standard gland plates across 400, 500, 600, and 800 mm depths, providing a consistent EMC entry solution for common control cabinet configurations.
The product notes indicate that standard IP protection is not supported. While CE certification is not listed in the provided data, the gland plate is classified under ETIM 9 (EC002620) and ECLASS 8.0 (27189261). Buyers should verify project-specific IP and CE requirements and plan any additional sealing or measures if full IP rating or compliance is mandatory.
By delivering a low-resistance shield connection and integrated cable fastening, the gland plate reduces EMI-related troubleshooting and rework, shortening commissioning times and boosting system reliability. The zinc-plated steel construction offers durable performance with low maintenance, while the included EMC seals minimize future seal replacement needs in standard cabinet upgrades.
The kit includes a cable clamp strip with hammer-head punching, one sliding gland plate, and two EMC seals, all sized for a 600 mm wide TS enclosure. This complete setup reduces the number of separate parts a technician must source, speeds up installation, and ensures consistent EMC bonding between the shield and gland plate across multiple panels.
