Rittal 8800670 TS Baying Attachment - Vertical TS/TS
Part Number: 8800670
Quick Summary
Rittal TS Baying Attachment 8800670 baying two populated TS enclosures on vertical sections. Installing this accessory reduces misalignment and gaps that slow projects and create touchpoints for corrosion and door misfit. It aligns with CE marking expectations and IP-rated protection practices, helping teams meet safety and installation standards across data centers and industrial panels. By simplifying installation and delivering a defined end position within ±2 mm, it enables faster assembly, repeatable layouts, and reliable enclosure performance for TS 8 systems. The included assembly parts and straightforward hex-screw fastening minimize field labor, inventory complexity, and service calls.
Product Information
Extended Description

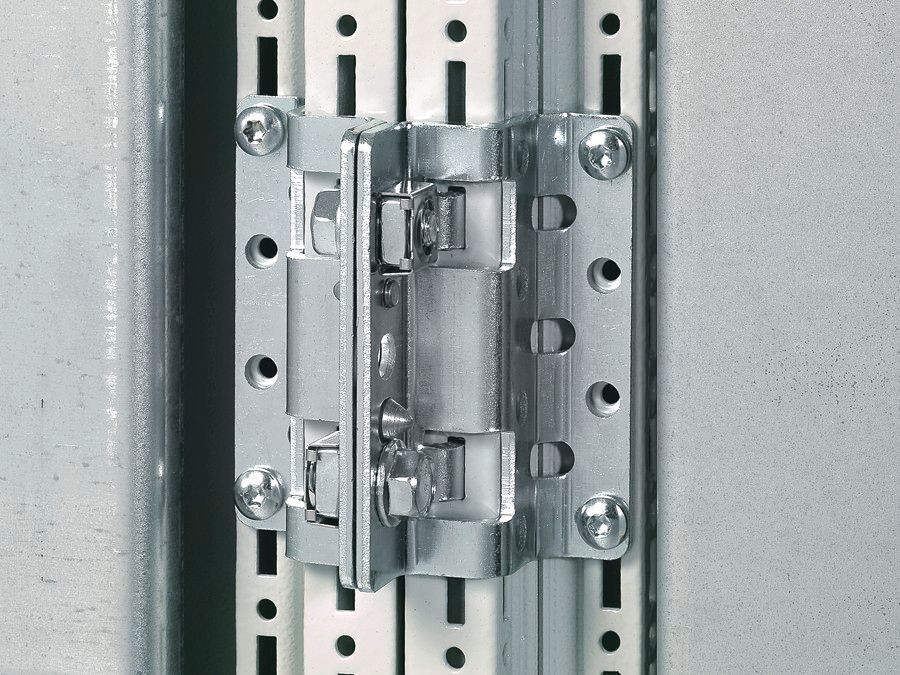

8800670 Rittal: TS Baying attachment, vertical, for TS/TS
Article number
TS 8800.670
Product description
For baying two populated enclosures on the vertical enclosure section.
Benefits
Using the fastening bolts, the enclosure is pulled into a defined end position, with a height or side offset of up to ±2 mm
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Assembly instruction
Simply locate into the vertical TS punchings, secure and connect both brackets using the hex screws (supplied loose)
To fit
Enclosure type: TS 8
Packs of
6 pc(s).
Weight/pack
2.118 kg
Customs tariff number
83024900
EAN
4028177338401
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
TS Baying attachment, vertical, for TS/TS
Feature: Vertical baying attachment for TS and TS enclosures built from sheet steel and finished zinc-plated. Business impact: Robust, corrosion-resistant hardware that maintains alignment in harsh environments, reducing maintenance visits. Application: Ideal for multi-panel control cabinets in automation and electrical rooms. Feature: Packs of 6 with a weight of 2.118 kg per pack and supply includes assembly parts. Business impact: Streamlines logistics and stocking, enabling quicker project turnover and lower total cost of ownership. Application: Suitable for large-scale panel builds where multiple bays are deployed. Feature: Easy installation using existing vertical TS punchings and hex screws supplied loose. Business impact: Faster field assembly, lower installation labor, and consistent results across teams. Application: Industrial automation projects requiring repeatable, high-quality mounting. Feature: To fit TS 8 enclosure type with end-position pull, aligning two populated enclosures within ±2 mm. Business impact: Improves door alignment, reduces rework, and delivers a tidy, professional enclosure row. Application: Data centers, machine controls, and panel houses with tight tolerances. Feature: Material and finish—sheet steel, zinc-plated. Business impact: Long-term durability against corrosion and mechanical wear in demanding environments. Application: General purpose enclosure baying in factory floors and serviceable control rooms.
Get a Quick Quote for a Rittal 8800670
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800670?
Enquire Now
FAQs
The TS 8800.670 baying attachment is a vertical accessory designed to join two populated TS enclosures on their vertical sections. It pulls the enclosures into a defined end position with a maximum height or side offset of ±2 mm, using supplied hex screws. The kit includes assembly parts, making it straightforward to create a stable, aligned enclosure train for TS 8 installations.
Begin by locating the brackets into the vertical TS punchings of the two enclosures. Secure each bracket and then connect them using the hex screws supplied loose. The assembly relies on the vertical TS mounting points, ensuring a precise end position. Refer to the included assembly instructions for a step-by-step sequence and torque guidance to maintain alignment within ±2 mm.
Yes, the TS 8800.670 is designed to fit TS 8 enclosure types. It is a vertical baying accessory that mounts into the TS punchings and uses hex screws for securing the two enclosures. The package includes assembly parts and targets a compact, aligned fit suitable for TS 8 control and distribution panels.
The kit includes assembly parts and the mounting hardware required to connect the two brackets with the supplied hex screws. Each pack weighs 2.118 kg, and the standard offering is in packs of six, enabling economical stocking for projects with multiple bays and repeatable installations.
Baying two enclosures with the TS 8800.670 ensures end-position alignment within ±2 mm, delivering consistent gaps and door fits across the enclosure run. This reduces field adjustments, speeds up assembly, lowers rework risk, and improves overall panel reliability—particularly valuable in data centers, machine control panels, and automation cabinets where space is tight and tolerances are critical.
