Rittal TS 8800.690 EMC Baying Seal - 2,000 mm Length
Part Number: 8800690
Quick Summary
Rittal TS 8800.690 EMC baying seal provides conductive sealing for TS enclosure bays in electrical cabinets. It addresses the common challenge of EMI leaks and dust ingress when multiple enclosures are bayed together, offering reliable continuity across the system. This seal aligns with ETIM EC002620 and ECLASS 27189261 classifications and supports EMC compatibility; verify CE conformity per regional project requirements. By delivering a long, uniform seal with a compact cross-section, it simplifies stocking and installation, enabling consistent performance across scalable baying configurations. In practice, this supports faster installations, reduced rework, and improved overall enclosure integrity for mission-critical panels.
Product Information
Extended Description

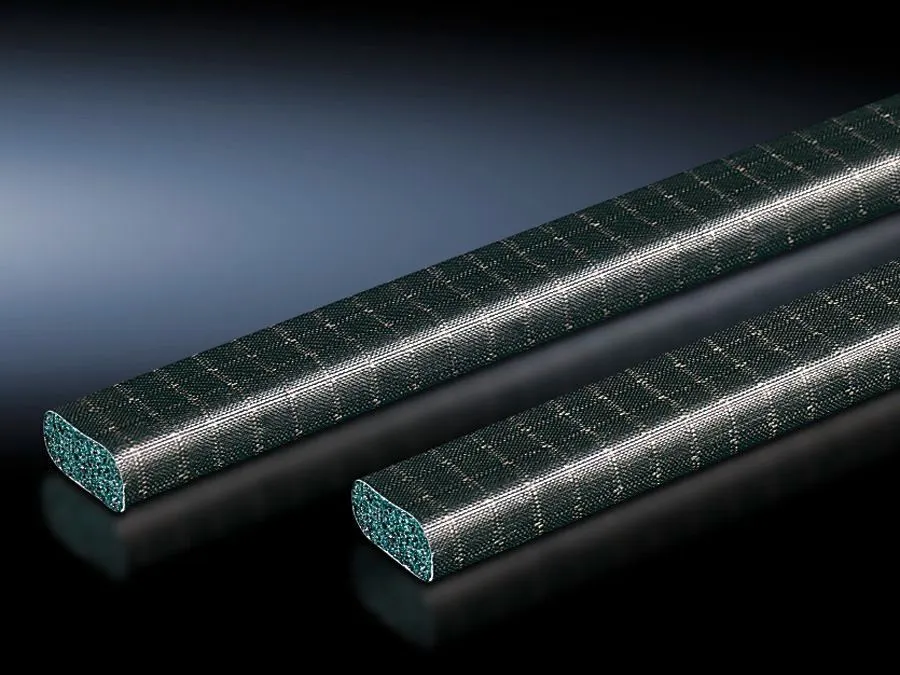

8800690 Rittal: TS EMC baying seal for TS, diameter 6,3x6,3 mm
Article number
TS 8800.690
Product description
For baying enclosure systems. Seal with all-round, electrically conductive sheathing.
Length
2,000 mm
Dimensions
Width: 6.3 mm | Height: 6.3 mm | Length: 2,000 mm
Packs of
3 pc(s).
Weight/pack
0.7 kg
Customs tariff number
73269098
EAN
4028177249967
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
TS EMC baying seal for TS, diameter 6,3x6,3 mm
Feature: All-round, electrically conductive sheathing. Business Impact: Ensures electromagnetic compatibility (EMC) shielding and grounding continuity across bayed enclosures, reducing the risk of EMI leaks and grounding faults. Application: Ideal for TS baying systems in data centers and control rooms where enclosure bays are joined side by side. The outcome is improved signal integrity and safer equipment operation. Feature: Length of 2,000 mm. Business Impact: Minimizes joint gaps and splices, cutting installation time and inventory complexity. Application: Used in long runs of TS enclosures to achieve a continuous seal without frequent breaks. Benefit: Faster project turnover and lower labor costs. Feature: Cross-section 6.3 x 6.3 mm. Business Impact: Delivers consistent compression and reliable sealing across the entire length, reducing rework from improper fit. Application: Supports standard TS baying dimensions, enabling predictable assembly. Benefit: Higher first-pass quality and dependable shielding. Feature: Packs of 3. Business Impact: Streamlines procurement and stocking, lowering per-unit cost and administrative effort. Application: Projects with distributed bays or modular expansions can rely on uniform kit assortments. Benefit: Lower total cost of ownership and easier supply chain management. Feature: ETIM 9 EC002620 and ECLASS 8.0 27189261 compatibility. Business Impact: Facilitates procurement, cataloging, and ERP integration with industry-standard classifications. Application: Reduces sourcing ambiguity and speeds purchasing cycles. Benefit: Faster procurement and accurate data for BOMs. Feature: Weight per pack 0.7 kg. Business Impact: Manageable handling during site installation, reducing fatigue and risk of damage. Application: Field personnel can move and fit seals with ease. Benefit: Safer handling and efficient on-site work. Feature: EAN 4028177249967 and Customs tariff 73269098. Business Impact: Enables precise traceability and customs compliance for international shipments. Application: Worldwide distribution and compliance reporting. Benefit: Improved logistics accuracy and smoother cross-border processes.
Get a Quick Quote for a Rittal 8800690
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800690?
Enquire Now
FAQs
The TS 8800.690 is designed for TS series enclosure bays with all-round conductive sheathing, providing EMI shielding and electrical continuity across bayed cabinets. It suits configurations where multiple enclosures are aligned in a row, ensuring a continuous seal and consistent performance.
Install by aligning the 2,000 mm seal along the joint between adjacent TS enclosures, ensuring the 6.3 x 6.3 mm cross-section sits evenly around the bay perimeter. Use the three-pack kit to cover the required installation length, confirming full contact with enclosure flanges for optimal conduction and shielding.
Yes. The seal features all-round electrically conductive sheathing designed to maintain electrical continuity and EMI shielding across bayed TS enclosures, a common requirement in control panels and industrial cabinets where electromagnetic compatibility is critical.
The product references ETIM EC002620 and ECLASS 27189261 classifications, supporting cataloging and procurement processes. The EAN 4028177249967 enables traceability, while regional CE conformity should be confirmed per project specifications and local regulatory requirements.
Using a standardized 3-pack seal with a single cross-section across bayed enclosures reduces stocking complexity and project labors. It minimizes EMI-related rework, lowers maintenance checks for shielding integrity, and supports faster deployment of scalable TS baying configurations, delivering measurable time and cost savings over project lifecycles.
