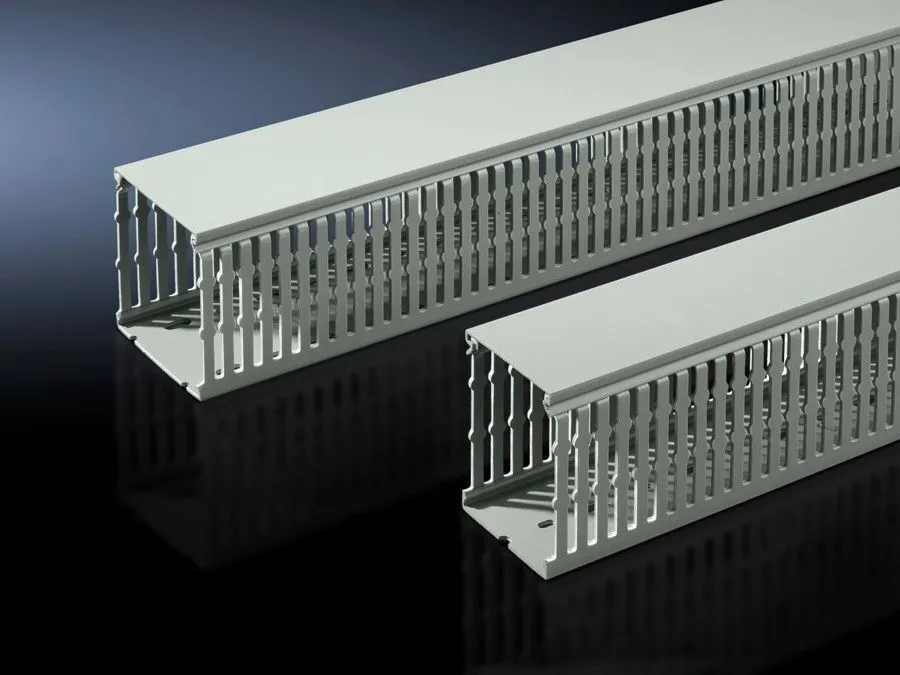

Rittal TS 8800.753 Cable Duct - Flame-resistant PVC
Part Number: 8800753
Manufacturer
Rittal
Part number
8800753
Alt Part Number
TS 8800.753
Quick Summary
The Rittal TS 8800.753 Cable Duct enables neat cable routing on enclosure mounting plates and VX punchings. Design challenges like space constraints and direct mounting are common in panel builds; this duct addresses them by providing mounting on enclosure sections or surfaces with dedicated DIN punchings. CE conformity is supported by a Declaration of Conformity, and the product aligns with ETIM 7.0 EC000012 and ECLASS 8.0 27400703 for straightforward procurement. For system integrators and panel builders, this solution combines reliability with installation efficiency, reducing field rework while expanding mounting options for Rittal enclosures and broader electrical infrastructure.
Product Information
Extended Description
8800753 Rittal: TS Cable duct for mounting plate, WHD: 80x2000x80 mm
Article number
TS 8800.753
Design
for mounting plates | For mounting on VX system punchings
Product description
With special DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates. Nominal break points on the bars and on the cable duct base.
Material
Hard PVC | Flame-resistant, self-extinguishing | Temperature resistant to +60 °C
Colour
Similar to RAL 7030
Supply includes
Cable duct with cover
Bar width
5.5 mm
Slot width
4.5 mm
Installation options
With special DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates
Note
Can be shortened for other dimensions.
Dimensions
Width: 80 mm | Depth: 80 mm | Length: 2,000 mm
Packs of
12 pc(s).
Weight/pack
21.072 kg
Customs tariff number
73269098
EAN
4028177445475
ETIM 7.0
EC000012
ECLASS 8.0
27400703
Product description
TS Cable duct for mounting plate, WHD: 80x2000x80 mm
Feature: Direct mounting on enclosure sections and surfaces via special DIN punchings. Business impact: Speeds up assembly and reduces hardware costs by eliminating excessive mounting brackets. Application: Works with VX system punchings and mounting plates in Rittal control cabinets. Feature: Dimensions 80x2000x80 mm with supply including a cover. Business impact: Ensures long run paths with a consistent footprint, simplifying cable routing and cover retention. Application: Fits standard 80 mm enclosure widths and 2 m length runs. Feature: Flame-resistant hard PVC with self-extinguishing properties and a temperature rating up to +60 °C. Business impact: Maintains fire safety margins in industrial environments and under hot operating conditions. Application: Suitable for electrical infrastructure in machinery and process automation. Feature: Bar width 5.5 mm and slot width 4.5 mm for clean, repeatable cable routes. Business impact: Improves predictability and reduces risk of pinch points. Application: Aligns with typical DIN rail and enclosure ducting standards for reliable cable organization. Feature: Can be shortened for other dimensions. Business impact: Enables custom length without inventory proliferation. Application: Ideal for bespoke panel builds or limited cabinet depths. Feature: Supplied as a cable duct with cover in packs of 12, with a total weight per pack of 21.072 kg. Business impact: Streamlines procurement and planning for larger installs; supports cost-efficient batch deployments. Application: Suitable for batch production and service projects.
Get a Quick Quote for a Rittal 8800753
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800753?
Enquire Now
FAQs
To install, align the duct with the VX system punchings or enclosure sections, engage the special DIN punchings, and secure the duct along the mounting surface. Attach the cover to complete the enclosure, ensuring the cable routes remain clear of moving parts. The process is designed to minimize additional brackets and simplify integration with mounting plates.
Primary performance drivers are dimensions (80x2000x80 mm), material (hard PVC, flame-resistant, self-extinguishing), temperature rating (+60 °C), and the slot/bar dimensions (5.5 mm / 4.5 mm). Pack size (12 pcs) and weight per pack (21.072 kg) affect procurement and logistical planning in larger installations.
Yes. The duct is designed for mounting plates and enclosure sections using dedicated DIN punchings, enabling direct mounting on surfaces such as mounting plates. This makes it especially compatible with VX system configurations and standard Rittal enclosures for streamlined cabinet builds.
The product includes a Declaration of Conformity confirming CE compliance. It is cataloged with ETIM 7.0 EC000012 and ECLASS 8.0 27400703, aiding procurement systems and data consistency across catalogs and ERP platforms.
Faster installation reduces labor time and field rework, while flame-resistant PVC improves safety margins and long-term reliability. Standardized dimensions and direct mounting options minimize inventory complexity, contributing to lower total cost of ownership in ongoing maintenance and support for panel builds.
