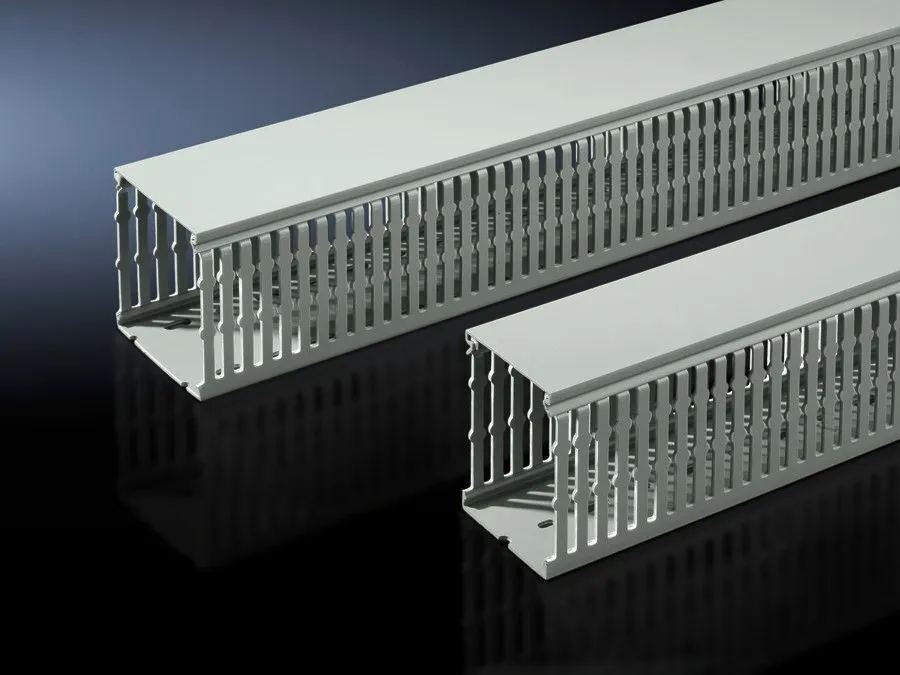

Rittal TS 8800.754 Cable Duct - Mounting Plate 100x2000x80
Part Number: 8800754
Manufacturer
Rittal
Part number
8800754
Alt Part Number
TS 8800.754
Quick Summary
The Rittal TS 8800.754 Cable Duct provides clean cable management for mounting plates in industrial enclosures. Direct mounting on enclosure sections or VX system punchings reduces installation time and keeps wiring organized. Flame-resistant, self-extinguishing Hard PVC supports operation up to +60 °C, with a Declaration of Conformity documenting compliance. This combination delivers reliable wiring, easy serviceability, and scalable installation for panel builders and integrators. Keywords like cable management, DIN punchings, and mounting plates underscore the practical, industry-focused value this duct brings to modern electrical infrastructure.
Product Information
Extended Description
8800754 Rittal: TS Cable duct for mounting plate, WHD: 100x2000x80 mm
Article number
TS 8800.754
Design
for mounting plates | For mounting on VX system punchings
Product description
With special DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates. Nominal break points on the bars and on the cable duct base.
Material
Hard PVC | Flame-resistant, self-extinguishing | Temperature resistant to +60 °C
Colour
Similar to RAL 7030
Supply includes
Cable duct with cover
Bar width
5.5 mm
Slot width
4.5 mm
Installation options
With special DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates
Note
Can be shortened for other dimensions.
Dimensions
Width: 100 mm | Depth: 80 mm | Length: 2,000 mm
Packs of
12 pc(s).
Weight/pack
24.372 kg
Customs tariff number
73269098
EAN
4028177445482
ETIM 9
EC000012
ECLASS 8.0
27400703
Product description
TS Cable duct for mounting plate, WHD: 100x2000x80 mm
Feature → Business Impact → Application: Special DIN punchings enable direct mounting on enclosure sections or surfaces such as mounting plates, reducing assembly steps and minimizing field wiring time. Application: use on VX system punchings or mounting plates for rapid, secure cable routing. Feature → Business Impact → Application: Hard PVC, flame-resistant, self-extinguishing material rated up to +60 °C improves safety margins and temperature resilience. Application: indoor enclosures in high-density panels where heat and safety standards matter. Feature → Business Impact → Application: Colour matched to RAL 7030 provides visual uniformity across panels, aiding maintenance and reducing identification errors. Application: cabinets and pillar enclosures requiring consistent aesthetics. Feature → Business Impact → Application: Dimensions WHD 100x2000x80 mm and bar width 5.5 mm with slot width 4.5 mm support neat, organized cable containment; improves future expansion and serviceability. Application: suitable for long runs across multiple enclosures with minimal rework.
Get a Quick Quote for a Rittal 8800754
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800754?
Enquire Now
FAQs
The duct features special DIN punchings for direct mounting on VX system punchings or enclosure sections. Align the duct with the punchings, secure with compatible fasteners, and install the cover to protect cables during service and maintenance.
Dimensions are Width 100 mm, Depth 80 mm, Length 2000 mm (WHD 100x2000x80). Bar width is 5.5 mm and slot width 4.5 mm, designed for mounting plates and direct mounting on enclosure sections.
Yes. The duct uses flame-resistant, self-extinguishing hard PVC with a temperature tolerance up to +60 °C, making it suitable for standard indoor electrical enclosures and wiring runs.
Each pack includes 12 pieces of cable duct with covers, enabling ready-to-install runs across multiple enclosures and simplifying procurement and stocking.
The product page provides a Declaration of Conformity (DE_EN) and PDF resources; use these to verify CE-related compliance and review installation guidelines for TS 8800.754.
