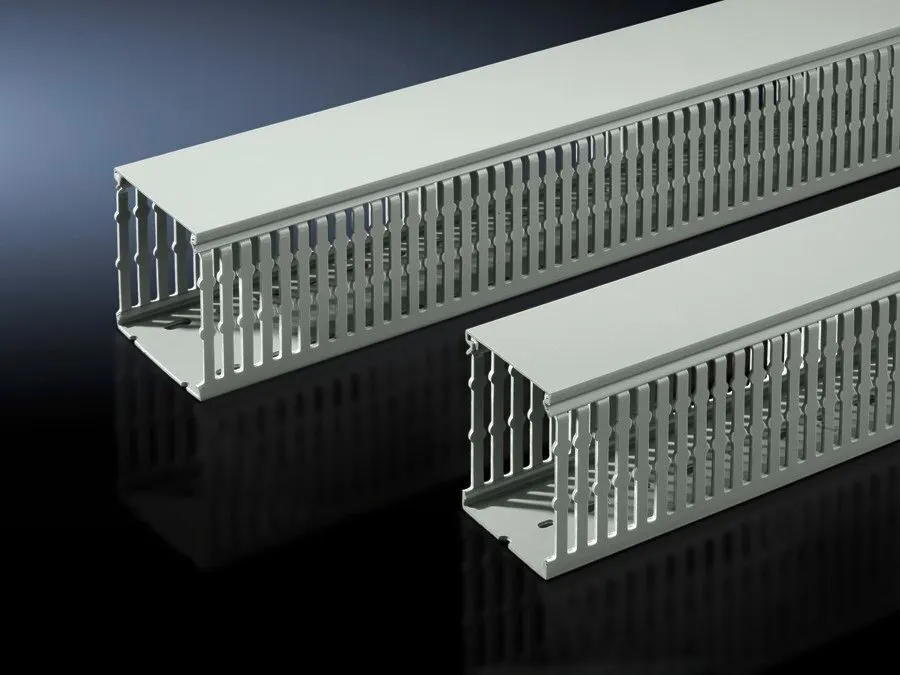

Rittal TS 8800.755 VX Cable Duct - Flame-Resistant, +60 °C
Part Number: 8800755
Manufacturer
Rittal
Part number
8800755
Alt Part Number
TS 8800.755
Quick Summary
Rittal TS 8800.755 VX Cable Duct provides a clean, protected wiring path for mounting plates. Installing cables in tight enclosures often leads to tangles, uneven routing, and heat buildup. The design emphasizes safety with flame-resistant, self-extinguishing PVC and aligns with common CE conformity expectations and IP-rated enclosure setups. With direct mounting on VX punchings and a 50×80 mm profile, this solution streamlines installation, reduces maintenance effort, and minimizes wiring time in panel cabinets. Its compatibility with mounting plates and enclosure sections makes it a practical choice for industrial automation, electrical cabinets, and control panels needing reliable cable management.
Product Information
Extended Description
8800755 Rittal: VX Cable duct, for mounting plate and section, WD: 50x80 mm, L: 2000 mm
Article number
TS 8800.755
Design
for mounting plates | For mounting on VX system punchings
Product description
With special DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates. Nominal break points on the bars and on the cable duct base.
Material
Hard PVC | Flame-resistant, self-extinguishing | Temperature resistant to +60 °C
Colour
Similar to RAL 7030
Supply includes
Cable duct with cover
Bar width
5.5 mm
Slot width
4.5 mm
Installation options
With special DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates
Note
Can be shortened for other dimensions.
Dimensions
Width: 50 mm | Depth: 80 mm | Length: 2,000 mm
Packs of
18 pc(s).
Weight/pack
19.4 kg
Customs tariff number
73269098
EAN
4028177919648
ETIM 9
EC000012
ECLASS 8.0
27400703
Product description
VX Cable duct, for mounting plate and section, WD: 50x80 mm, L: 2000 mm
Feature → Business Impact → Application: The VX Cable duct is designed for mounting plates and VX system punchings, enabling direct attachment to enclosure structures. This reduces install time and misalignment, delivering predictable cable paths for improved serviceability in control panels. Application: Ideal for factory automation enclosures where quick assembly and modular expansion are critical, such as PLC cabinets and motor control centers. Feature → Business Impact → Application: Material uses hard PVC that is flame-resistant and self-extinguishing, enhancing safety and reducing risk in fire-prone environments. Application: Suitable for electrical cabinets in industrial settings requiring robust safety performance and regulatory comfort. Feature → Business Impact → Application: Dimensions 50 mm wide, 80 mm deep, and 2000 mm long provide ample routing volume while preserving compact footprint. Application: Fits standard VX channel layouts and allows clean, scalable cable management from the backplane to the door. Feature → Business Impact → Application: Bar width 5.5 mm and slot width 4.5 mm support secure cable organization and easy fastening. Application: Improves routing accuracy for multi-cable bundles and simplifies maintenance checks. Feature → Business Impact → Application: Supplied with a cover ensures complete protection of cables and easier inspection. Application: Reduces dust ingress and lowers ongoing cleaning and replacement costs. Feature → Business Impact → Application: Pack size and logistics (18 pieces per pack; 19.4 kg per pack) streamline procurement and warehousing. Application: Efficient for series builds and large-scale installations across multiple panels or lines. Feature → Business Impact → Application: Can be shortened for other dimensions, enabling tailored fit in non-standard enclosures. Application: Enables customization without ordering separate components or fabricating adapters.
Get a Quick Quote for a Rittal 8800755
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800755?
Enquire Now
FAQs
To install, measure the required length, trim the duct if needed according to the note, and align it with the VX punchings or mounting plate holes. Use the built-in mounting features to secure the duct to the enclosure frame, then route cables through the 4.5 mm slot and 5.5 mm bar openings. Attach the cover last to protect cables from dust and moisture. This approach minimizes routing errors and speeds up panel assembly.
The duct is 50 mm wide, 80 mm deep, and 2000 mm long, designed for mounting plates and VX system punchings. It accepts cables via a 4.5 mm slot width and 5.5 mm bar width, and it comes with a cover. Compatibility extends to VX channel configurations and enclosure sections, enabling direct mounting without adapters.
Yes, the product uses flame-resistant, self-extinguishing hard PVC rated for operation up to +60 °C. This makes it suitable for typical industrial control panels and cabinet interiors where temperature rise from conductors and ambient heat must be mitigated while maintaining cable integrity.
The design emphasizes safety and compliance typical for industrial components, including flame-resistant PVC material and CE-conformant expectations in European markets. It also aligns with standard enclosure practices that support IP-rated installations. For exact certifications in your region, verify local compliance requirements and supplier documentation.
The product is supplied in packs of 18 pieces, with a total weight of 19.4 kg per pack. The VAT-free or incoterms depend on the supplier region, but the packaging is designed for easy handling and efficient warehouse storage, supporting streamlined procurement in large-scale panel builds.
