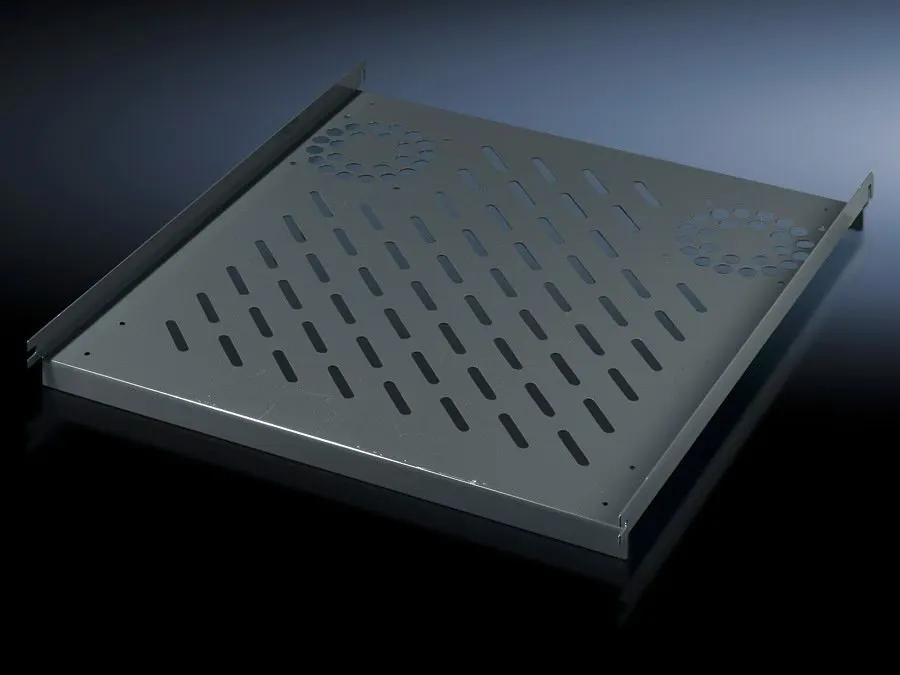

Rittal PC 8800.910 Component Shelf - 40 kg static load
Part Number: 8800910
Quick Summary
Rittal PC 8800.910 Component Shelf enables static mounting on vertical enclosure sections for TS, PC, and IW enclosures. Direct mounting with four pre-fitted screws reduces installation time and prevents misalignment on busy production lines. Note: formal certifications such as CE, IP, or SIL are not listed in the provided data; however, the product is associated with ETIM EC002620 and ECLASS 27189261, aligning with established industrial metadata. This shelf supports efficient enclosure organization, is compatible with 600x800 mm WD footprints, and offers a 40 kg static load rating, delivering reliable support while enabling scalable, compliant cabinet layouts for mid-to-high density installations.
Product Information
Extended Description
8800910 Rittal: PC Component shelf, static installation, for TS, PC, IW, prepared for fan expansion kit, for WD: 600x800 mm
Article number
PC 8800.910
Product description
Simply locate into 4 pre-fitted screws and secure.
Material
Sheet steel
Colour
RAL 7015
Supply includes
Assembly parts
Installation options
On the vertical TS, VX SE enclosure section
Load capacity
40 kg surface load, static
Note
For enclosures without mounting plate
Support area
Width: 507 mm | Depth: 750 mm
To fit
Enclosure type: TS | VX SE | PC | IW | Width: = 600 mm | Depth: = 800 mm
Packs of
1 pc(s).
Weight/pack
6 kg
PCF per pack (cradle-to-gate)
22.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177266919
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
PC Component shelf, static installation, for TS, PC, IW, prepared for fan expansion kit, for WD: 600x800 mm
Feature: Direct vertical mounting on TS, VX SE enclosure sections. Business Impact: Speeds up installation, ensures precise alignment, minimizes field adaptation time for panel builders. Application: Ideal for TS or VX SE enclosures where quick shelf integration is required without mounting plates. Feature: 40 kg static load capacity. Business Impact: Supports typical component loads while maintaining cabinet integrity, reducing sag and rework. Application: Suitable for standard component packages in mid-size control panels. Feature: Sheet steel, RAL 7015 finish. Business Impact: Durable, corrosion-resistant finish suited to harsh industrial environments, lowering maintenance needs. Application: Internal mounting in factory automation cabinets. Feature: Footprint compatibility 600x800 mm WD, support area 507 mm x 750 mm. Business Impact: Ensures a precise fit with common enclosure sizes, reducing design-time checks. Application: Widely compatible with TS, PC, IW configurations. Feature: Includes assembly parts; note about no mounting plate. Business Impact: Simplifies procurement and installation workflows, reduces secondary sourcing. Application: Quick stock-to-install transition for project teams. Feature: PCF 22.9 kg CO2 eq per pack (Cat B). Business Impact: Lower environmental footprint calculations support sustainability reporting. Application: Product selection aligned with greener design goals.
Get a Quick Quote for a Rittal 8800910
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8800910?
Enquire Now
FAQs
The shelf is designed for direct mounting on the vertical TS or VX SE enclosure sections using four pre-fitted screws. Align the shelf with the enclosure’s internal mounting points, insert the screws, and tighten securely. This single-pack solution fits 600x800 mm footprints and does not require a separate mounting plate, streamlining installation and reducing assembly time.
The PC 8800.910 component shelf uses sheet steel and supports a static load of up to 40 kg. This combination provides robust support for internal components while maintaining cabinet integrity in demanding industrial environments. Color is RAL 7015, which matches typical enclosure aesthetics and corrosion resistance expectations.
Yes. The shelf is prepared for a fan expansion kit and is designed for WD 600x800 mm footprints. It is compatible with TS, VX SE, PC, and IW enclosure types, providing a consistent mounting solution that supports expansion without needing additional adapters or mounting plates.
The data specifies ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications. While formal CE, IP, or SIL certifications are not listed, you should verify regulatory compliance with your procurement team or the supplier for your specific region and application, especially where safety and IP ratings are critical to your project.
The shelf reduces installation time and assembly errors by providing a direct, screw-mounted solution without mounting plates. Standardized dimensions (600x800 WD, 507x750 support area) improve cabinet organization, facilitate maintenance planning, and can lower total cost of ownership by reducing rework and inventory diversity. It also aligns with sustainability goals via its PCF footprint.
